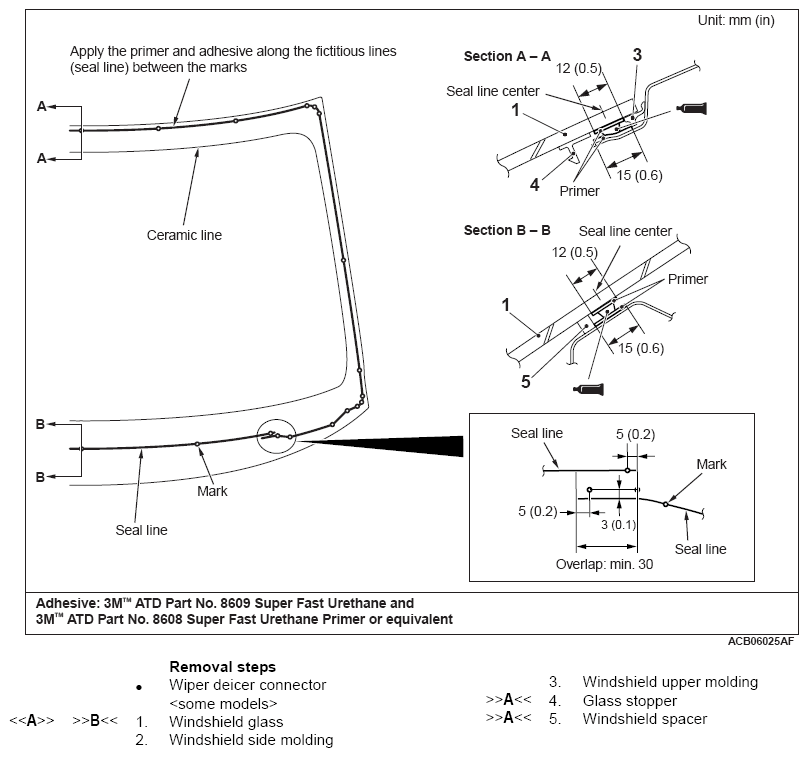

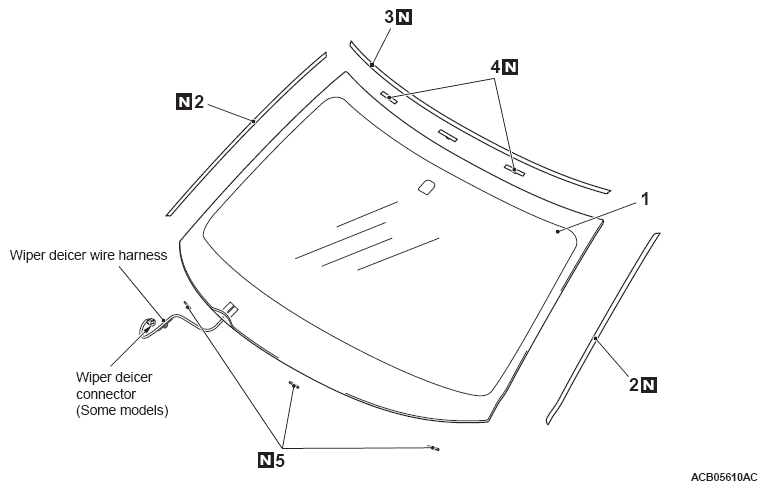

Removal And Installation: Notes
Pre-removal and post-installation operation
- Front deck garnish removal and installation (Refer to WINDSHIELD WIPER
.)
- Roof drip molding removal and installation (Refer to MOLDING
.)
- Front pillar trim removal and installation (Refer to INTERIOR TRIM
.)
- Inside rear view mirror assembly removal and installation (Refer to INSIDE REAR VIEW MIRROR
.)
- Lighting control sensor removal and installation <Vehicles with lighting control sensor> (Refer to LIGHTING CONTROL SENSOR
.)
- FCM/LDW/AHB-ECU Removal and Installation <Vehicles with FCM/LDW/AHB-ECU> (Refer to FCM/LDW/AHB-ECU
.)
|
