Component Locations: Grounding

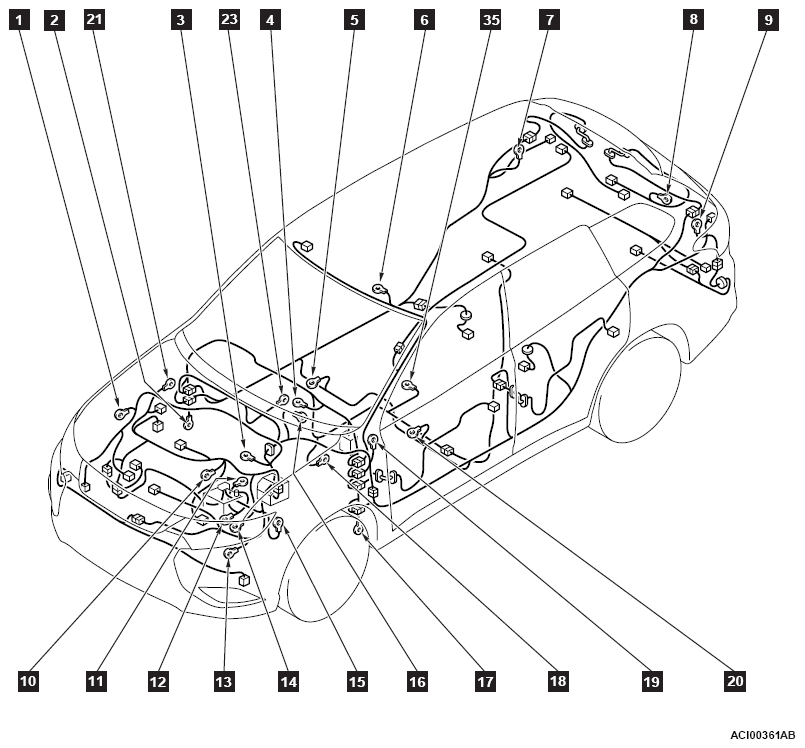

G13502229Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: 1 to 35 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.

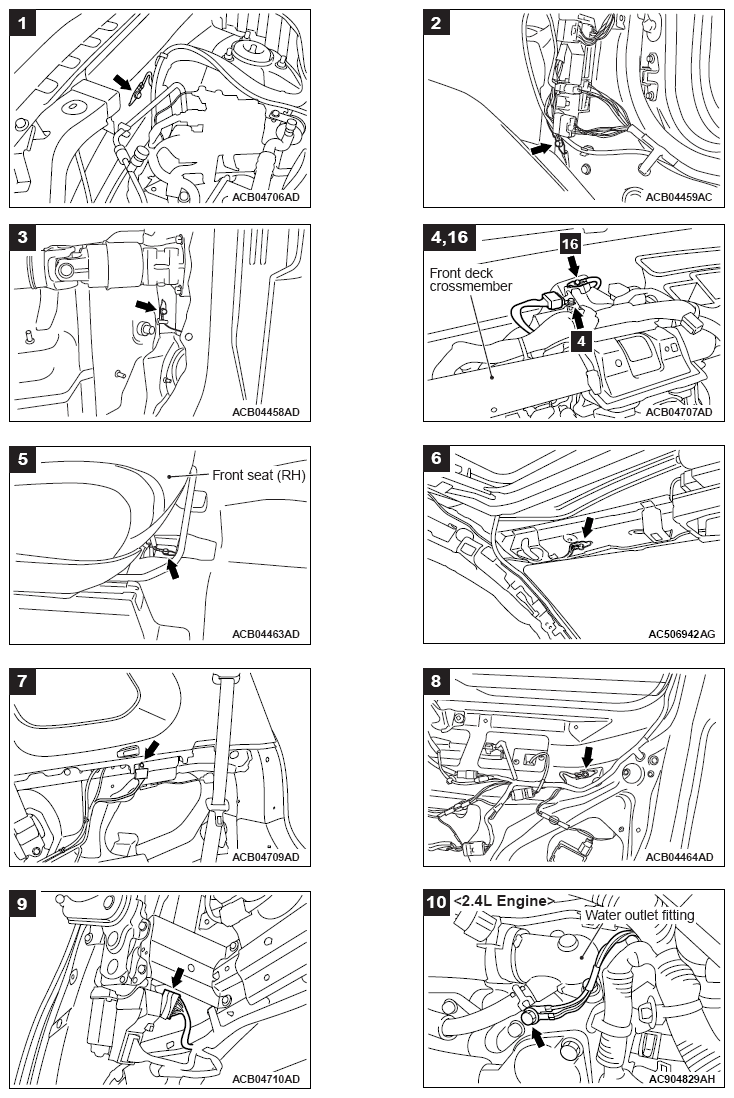

G13502230Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

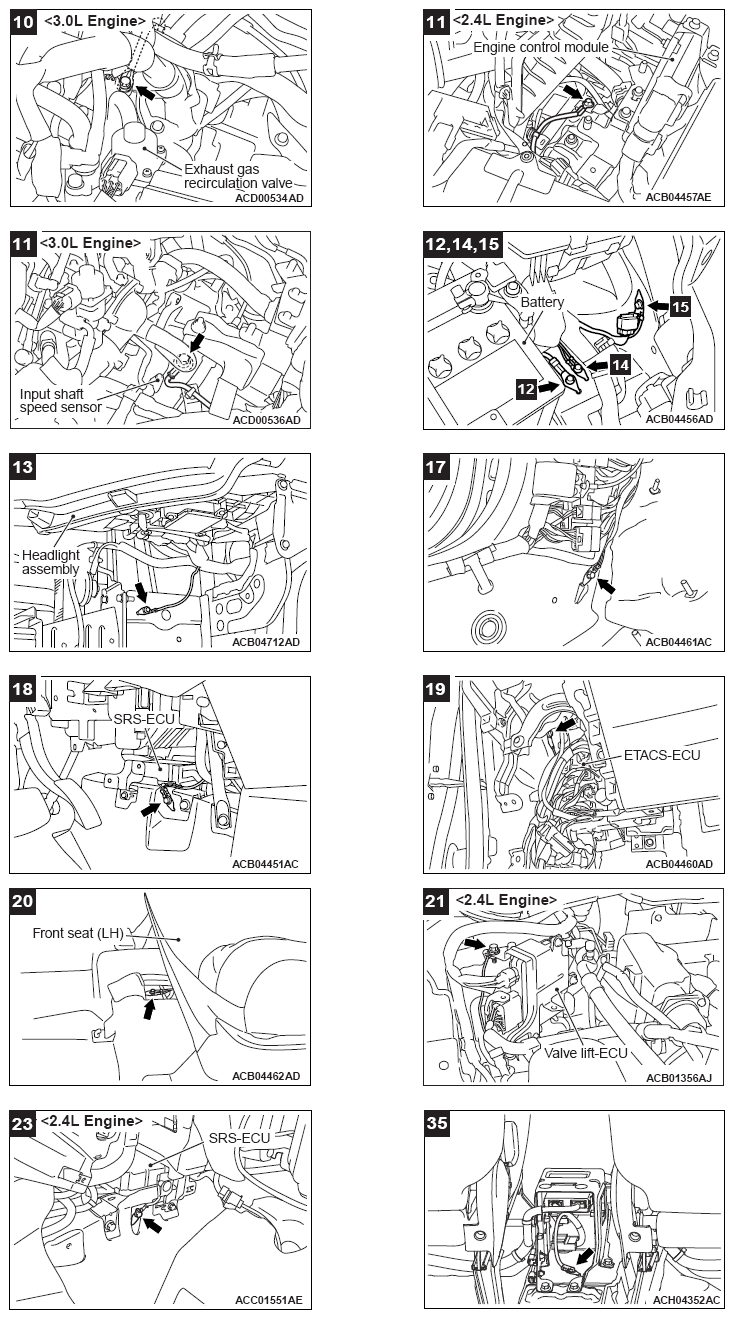

G13502231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
