Disassembly And Reassembly: Notes

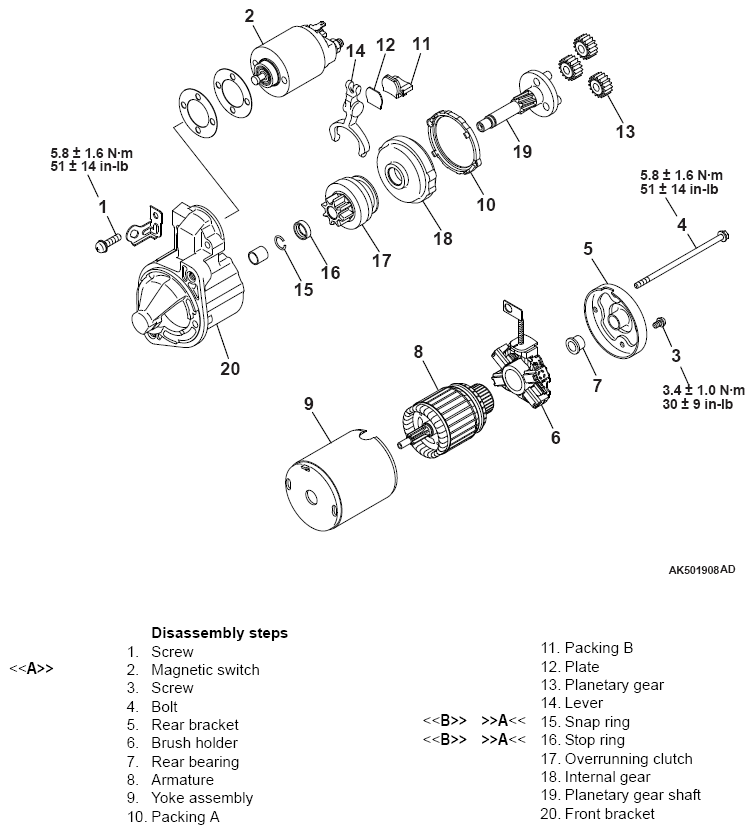

Fig 1: Disassembling/Assembling Starter Motor Assembly Components Location With Torque Specification
G13496862Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
