>>B<< Grounding Cable Connection

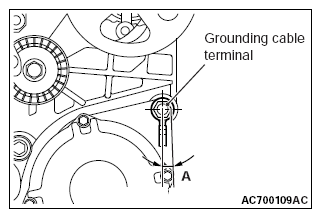

Install the grounding cable within the area marked with A in the illustration.

G13329831Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
