Removal And Installation: Notes

NOTE: ASC-ECU is located in the hydraulic unit.

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch "ON" or "LOCK" (OFF) position (vehicle information from ETACS-ECU is registered), always carry out the calibration of steering wheel sensor and G and yaw rate sensor (Refer to STEERING WHEEL SENSOR CALIBRATION and G AND YAW RATE SENSOR CALIBRATION ).

Pre-removal operation

Brake fluid draining.

Post-installation operation

Brake fluid refilling and air bleeding (Refer to BLEEDING ).
Hydraulic unit check (Refer to HYDRAULIC UNIT (HU) CHECK ).

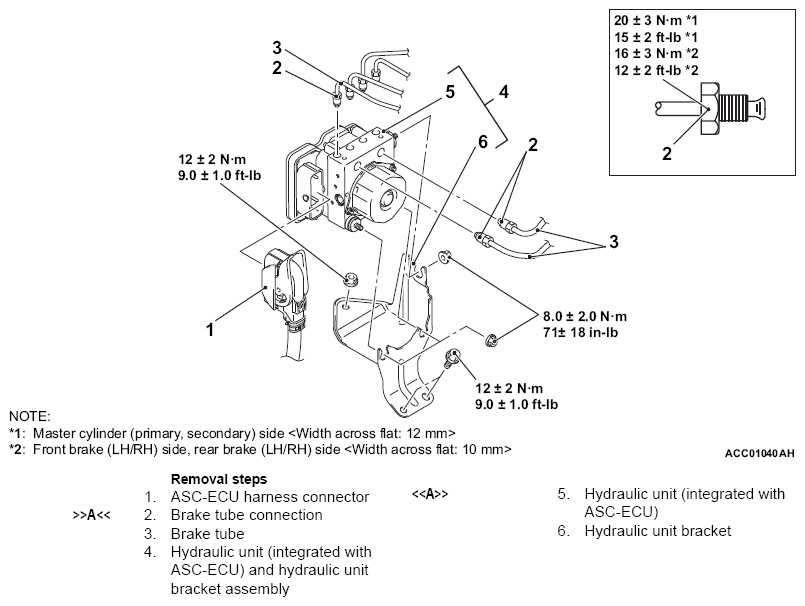

Fig 1: Removing/Installing Hydraulic Unit Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
