Removal And Installation: Notes

Pre-removal and Post-installation operation
Front Bumper and Radiator Grille Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION )

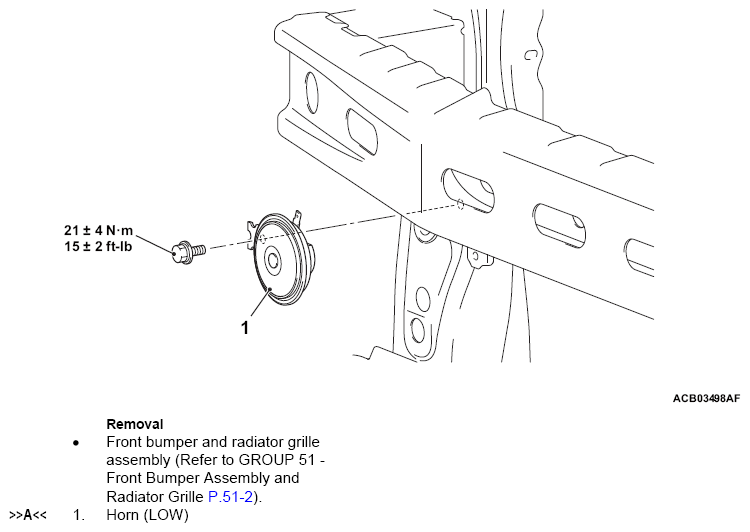

Fig 1: Removing/Installing Horn Components With Torque Specifications
G13781036Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
