Removal And Installation: Notes

CAUTION:

The vehicle speed detection encoder collects any metallic particle easily, because it is magnetized. Make sure that the encoder should not collect any metallic particle. Check that there is not any trouble prior to assembling it.
The wiring harness for the wheel speed sensor should be routed without twisting.

Pre-removal and post-installation operation

Rear Scuff Plate Removal (Refer to REMOVAL AND INSTALLATION ) <Rear wheel speed sensor>

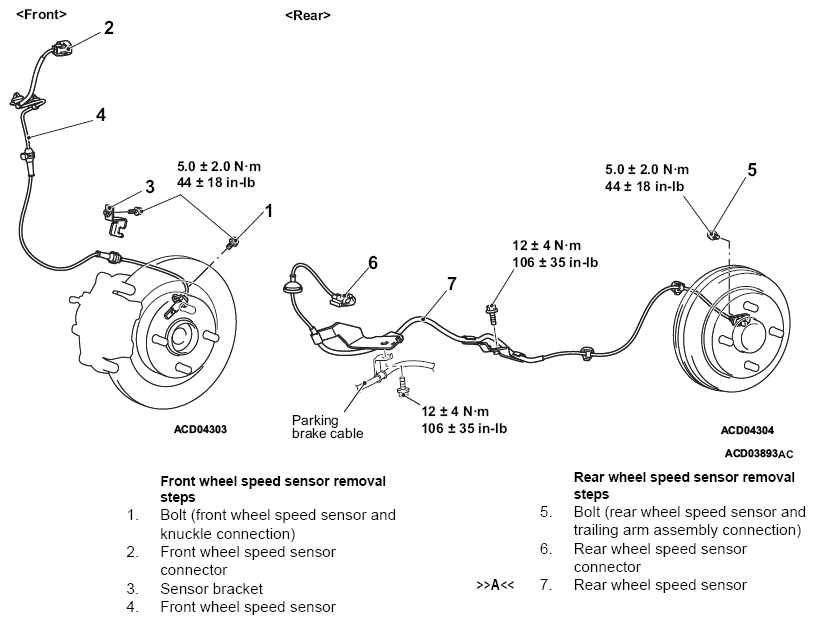

Fig 1: Removing/Installing Wheel Speed Sensor Components With Torque Specifications (Front, Rear)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The encoder for detecting front wheel speed is a non-disassemble part integrated with the wheel bearing.
