Removal And Installation: Notes

Pre-removal and post-installation operation

• Engine Room Under Cover Front Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
• Oil Filter Removal and Installation (Refer to OIL FILTER REPLACEMENT  ).

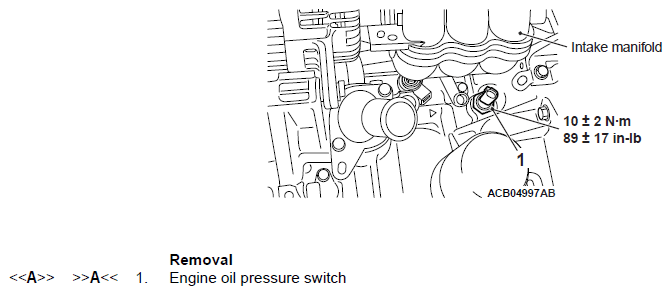

Fig 1: Removing/Installing Engine Oil Pressure Switch With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992118: Oil Pressure Switch Wrench
