Switch resistance check

Switch position Terminal number Specified condition
OFF 7 - 10 No continuity
ON The resistance should be 2 ohms or less

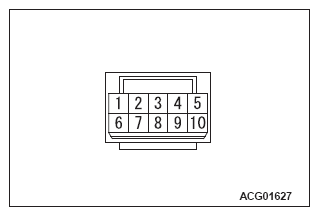

G12120617Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
