Removal And Installation: Notes

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the power supply mode of the electric motor switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sensors (steering wheel sensor, G and yaw rate sensor, and brake fluid pressure sensor) at one time. (Refer to ALL SENSOR CALIBRATION (G AND YAW RATE SENSOR, STEERING WHEEL SENSOR, BRAKE FLUID PRESSURE SENSOR) .)

Pre-removal Operation

Brake Fluid Draining.

Post-installation Operation

Brake Fluid Refilling and Air Bleeding (Refer to BLEEDING ).
Hydraulic Unit Check (Refer to HYDRAULIC UNIT (HU) CHECK ).

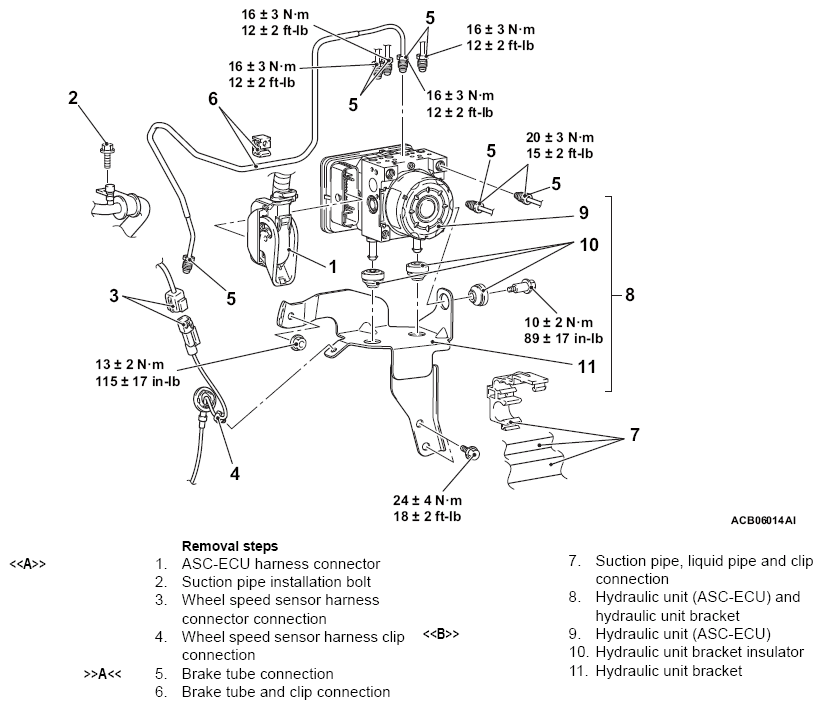

Fig 1: Removing/Installing Hydraulic Unit Components With Torque Specifications
