Removal And Installation: Notes

Pre-removal and Post-installation Operation

Engine Coolant Draining and Refilling (Refer to ENGINE COOLANT REPLACEMENT ).
Air Cleaner Intake Duct and Air Cleaner Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
EV Radiator Condenser Tank Removal and Installation (Refer to REMOVAL AND INSTALLATION .

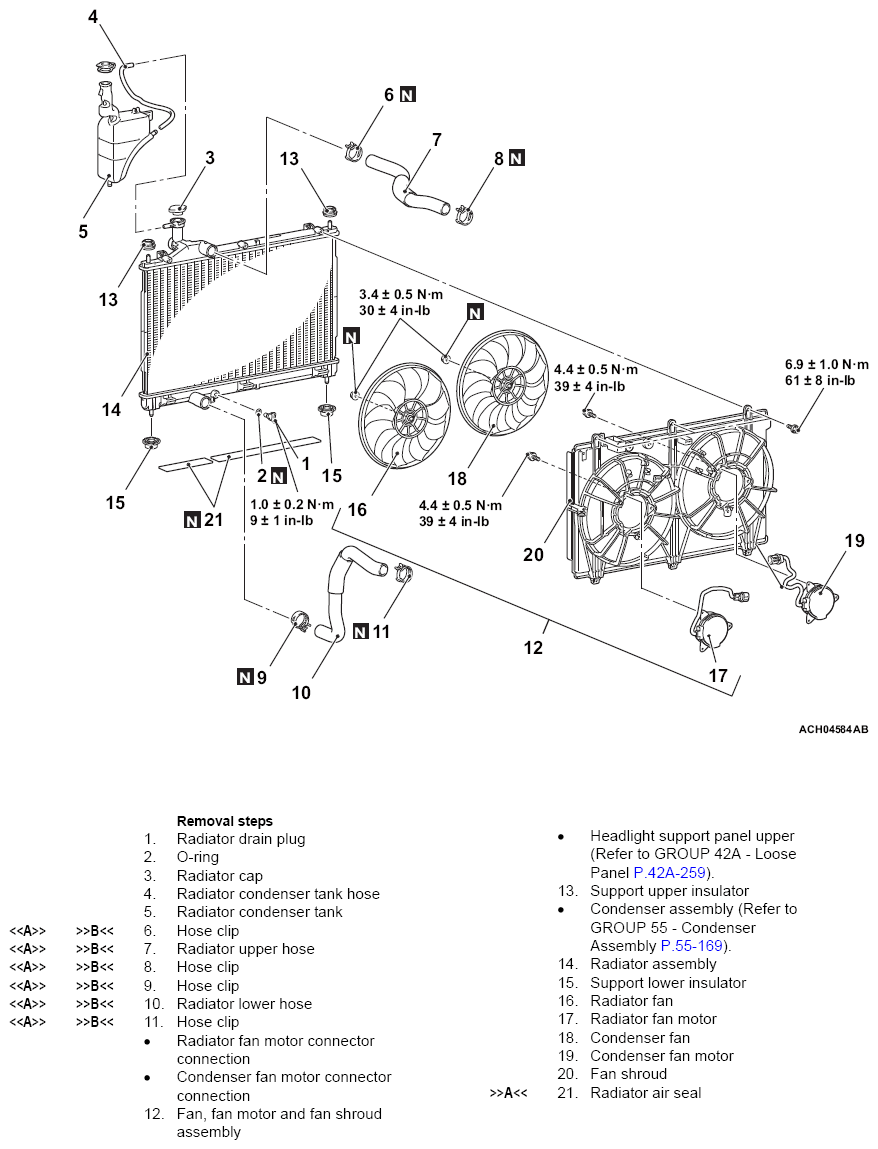

Fig 1: Removing/Installing Radiator Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
