Pulley Removal

CAUTION: Perform operation carefully not to damage the rotor.

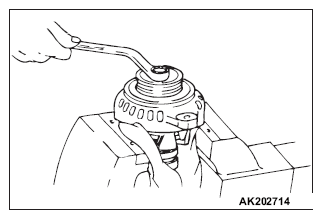

Clamp the rotor in a vise with the pulley facing up to remove the pulley.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
