Disassembly Service Point

CAUTION: Do not disassemble parts other than specified in this man-ual.
  1. Remove the transfer from the transaxle. <W1CJC>
  2. Remove the front and rear roll stopper bracket from the transaxle.
  3. Remove the radiator hose bracket, harness bracket, corrugate clamp bracket and air breather bracket from the transaxle.
  4. Remove the oil filler tube and dipstick from the transaxle.
  5. Remove the control cable bracket and breather hose from the transaxle.
  6. Remove the oil cooler feed hose, oil cooler return hose <Vehicles without air-cooled oil cooler assembly>, oil cooler pipe assembly, oil cooler tube assembly <Vehicles with air-cooled oil cooler assembly>, eye bolt and gasket from the transaxle.
  7. Remove the drain plug and drain plug gasket from the oil pan.

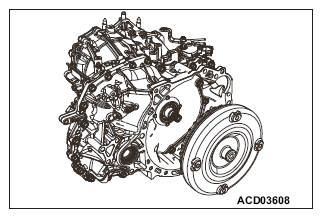

  8. Remove the torque converter from the transaxle.
    G14213078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When removing the O-ring, be careful not to cause damage to the input shaft.
  9. Remove the O-ring from the input shaft.

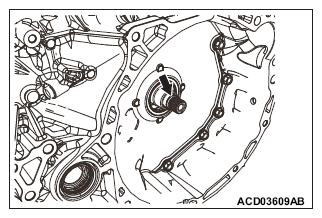

    G14213079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Remove the plug from the transaxle case, and detach the O-ring from the plug.

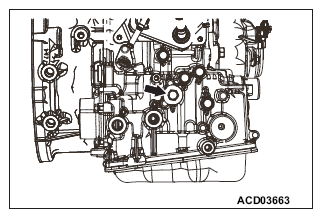

    G14213080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Remove the turbine speed sensor from the converter housing, and detach the O-ring from the sensor.

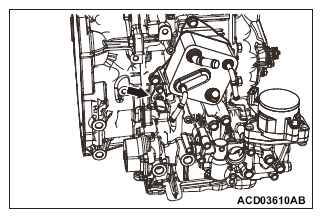

    G14213081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

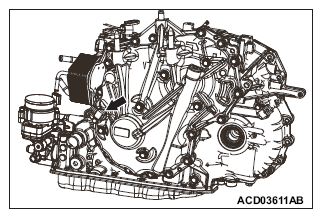

  12. Remove the primary pulley speed sensor from the side cover, and detach the O-ring from the sensor.
    G14213082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

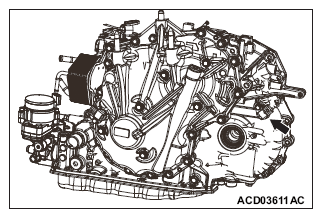

  13. Remove the secondary pulley speed sensor from the transaxle case, and detach the O-ring from the sensor.
    G14213083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. Remove the manual control lever from the manual shaft.

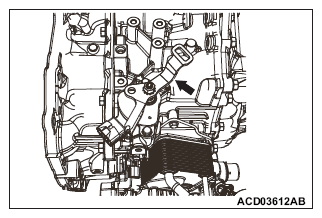

    G14213084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  15. Remove the transmission range switch from the transaxle case.

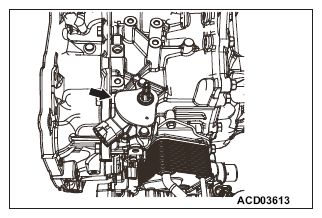

    G14213085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  16. Remove the CVT fluid cooler from the transaxle case.

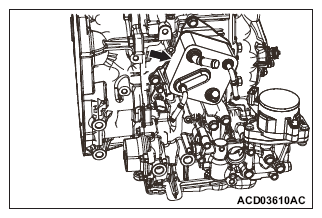

    G14213086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

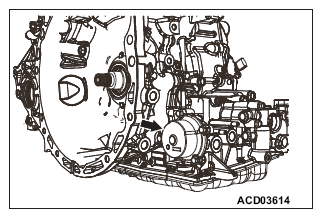

  17. Remove the filter cover from the transaxle case.
    G14213087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  18. Remove the O-ring and CVT fluid filter from the transaxle case.

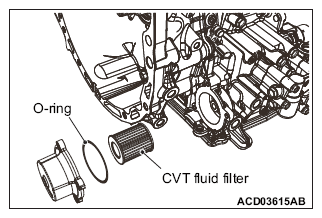

    G14213088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When removing the side oil seal, be careful not to cause damage to the transaxle case.

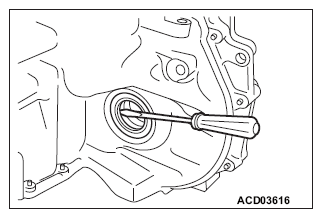

  19. Using a flat blade screwdriver etc., remove the side oil seal from the transaxle case.
    G14213089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When removing the side oil seal, be careful not to cause damage to the converter housing.

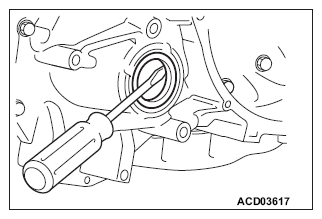

  20. Using a flat blade screwdriver etc., remove the side oil seal from the converter housing. <F1CJC>
    G14213090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When removing the converter housing oil seal, be careful not to cause damage to the converter housing and input shaft.
  21. Remove the converter housing oil seal from the converter housing.

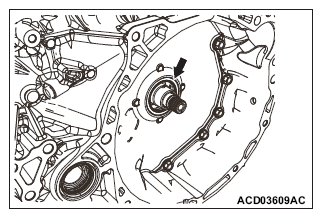

    G14213091Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Be careful not to cause damage to the terminal body.
  22. Remove the snap ring from the terminal body, and press the terminal body into the transaxle case.

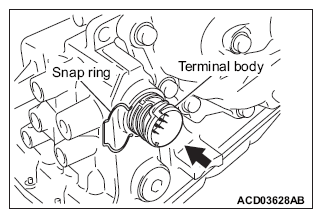

    G14213092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  23. Remove the oil pan from the transaxle case. 24. Remove the magnet from the oil pan.

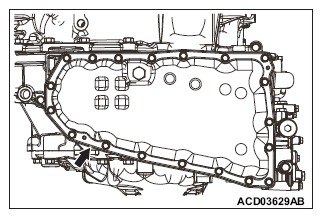

    G14213093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

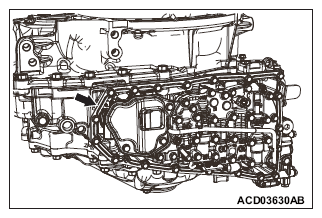

  24. Remove the oil pan gasket from the transaxle case.
    G14213094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  25. Remove the oil strainer.
    Bolt symbol A B
    Shank length mm (inch) 44 (1.7) 12 (0.5)
    Quantity 1 2

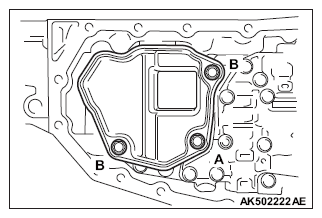

    G14213095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  26. Remove the O-ring from the oil strainer.

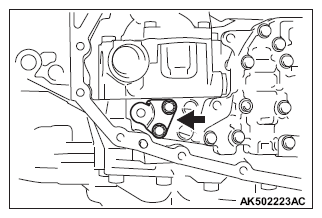

  27. Remove the bracket from the valve body assembly.
    G14213096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

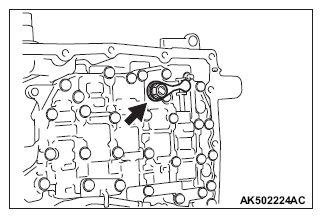

  28. Remove the manual valve lever.
    G14213097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  29. Remove the valve body assembly from the transaxle case in the following way.
    1. Remove mounting bolts of the valve body assembly.
      Bolt symbol A B C
      Shank length mm (inch) 54 (2.1) 44 (1.7) 54 (2.1)
      Quantity 8 1 2

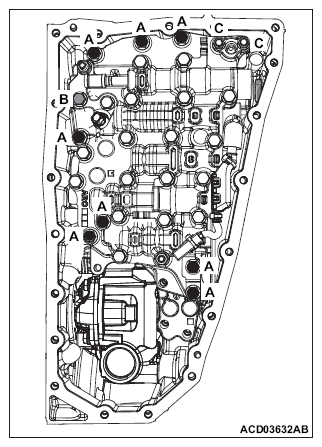

      G14213098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Remove the valve body assembly from the transaxle case.
    NOTE: Tilt the valve body assembly, and after removing from the manual shaft side, remove the terminal body from the transaxle case.

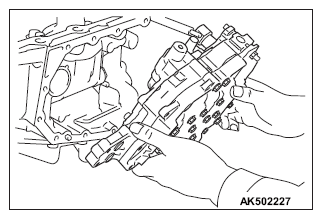

    G14213099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

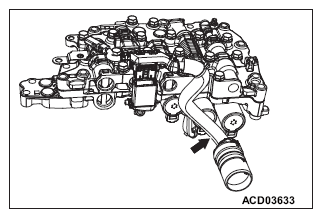

  30. Remove the valve body harness from the valve body assembly.
    G14213100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  31. Remove the lip seal from the transaxle case.

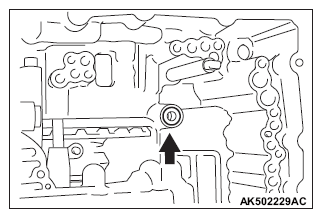

    G14213101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
