Reassembly Service Point

CAUTION:
  • Do not re-use the lip seal.
  • Apply transmission fluid or vaseline when installing the lip seal.

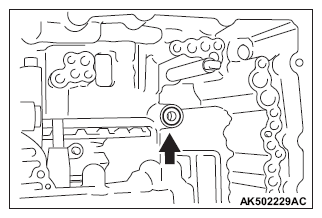

  1. Install the lip seal on the transaxle case.
    G14213102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the valve body assembly on the transaxle case as follows.

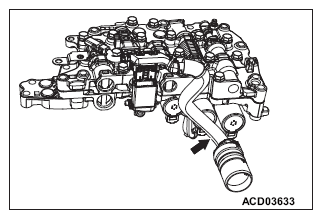

    1. Install the valve body harness on the valve body assembly.
      G14213103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      CAUTION:
      • Push in the valve body harness until the detent con-tacts the transaxle case
      • Be careful not to cause damage to the terminal body.

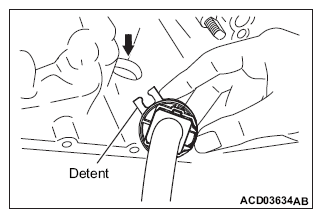

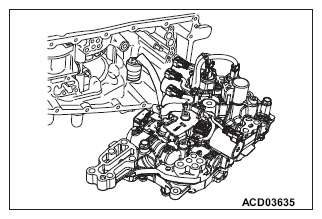

    2. Install the terminal body on the transaxle case, while aligning the detent of terminal body with the transaxle case as shown in illustration.
      G14213104Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      G14213105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

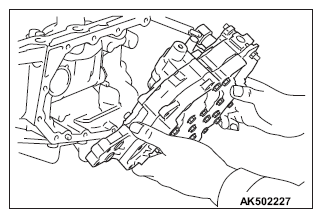

    3. Slide the valve body assembly from the bottom, and install it on the transaxle case.
      G14213106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

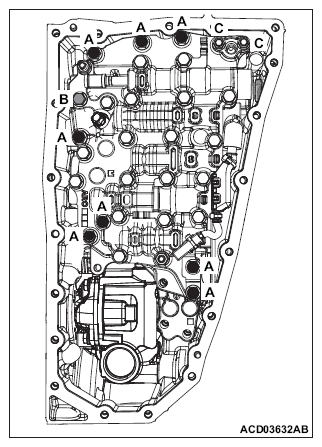

    4. Install the fastening bolts of valve body assembly, and tighten to the specified torque of 7.9 Nm (70 in-lb).
    Bolt symbol A B C
    Shank length mm (inch) 54 (2.1) 44 (1.7) 54 (2.1)
    Quantity 8 1 2
    G14213107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

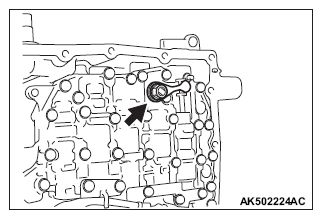

  3. Install the manual valve lever, and tighten the fastening nuts to the specified torque of 22.1 Nm (16 ft-lb).
    G14213108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

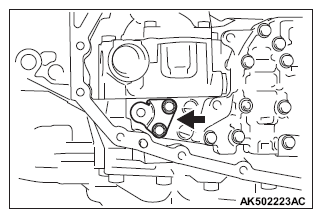

  4. Install the bracket on the valve body assembly, and tighten the fastening bolts to the specified torque of 7.9 Nm (70 in-lb).
    G14213109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

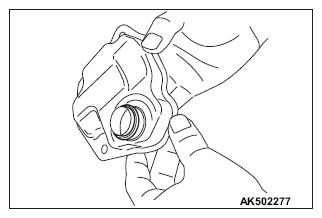

  5. Install the O-ring on the oil strainer.
    G14213110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

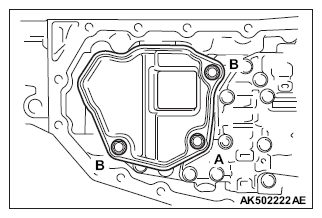

  6. Install the oil strainer, and tighten the fastening bolts to the specified torque of 7.9 Nm (70 in-lb).
    Bolt symbol A B
    Shank length mm (inch) 44 (1.7) 12 (0.5)
    Quantity 1 2
    G14213111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the oil pan gasket.
    • Remove any moisture, oil, and used gasket from the mounting surface of oil pan gasket.

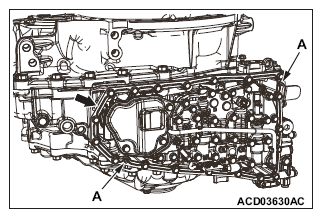

    • When installing the oil pan gasket, align the dowel pins of transaxle case with dowel pin holes A of the oil pan gasket.
  7. Install the oil pan gasket on the transaxle case.
    G14213112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

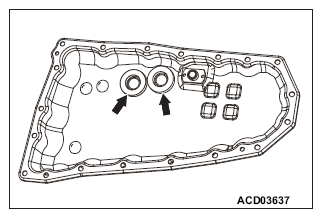

  8. Install the magnet on the oil pan.
    G14213113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When installing the oil pan, align the dowel pins of tran-saxle case with dowel pin holes A of the oil pan.

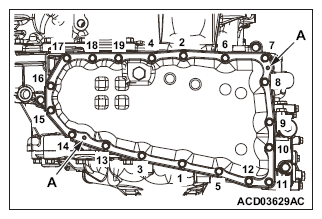

  9. Tighten each oil pan mounting bolt to the specified torque of 5.9 Nm (52 in-lb) in the order of number shown.
    Fig 1: Oil Pan Mounting Bolts Tightening Sequence
    G14213114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not re-use the snap ring.

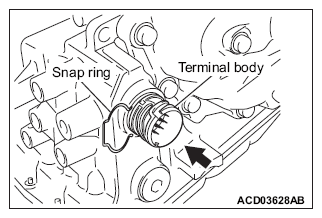

  10. Install the snap ring on the terminal body.
    G14213115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the converter housing oil seal.
    • Apply transmission fluid when installing the converter housing oil seal.

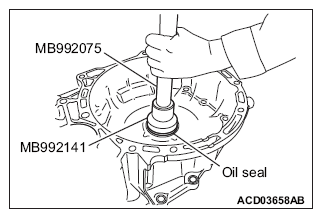

  11. Using the special tools, install the converter housing oil seal on the converter housing.
    • Oil seal installer (MB992141)
    • Handle (MB992075)
    G14213116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

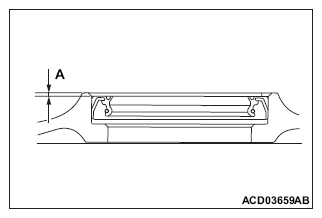

    Depth from the case edge A:

    Within -1.0 ± 0.5 mm (-0.04 ± 0.02 inch) recessed .

    G14213117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the side oil seal.
    • Apply transmission fluid when installing the side oil seal.

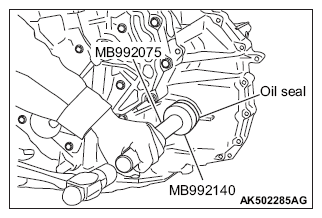

  12. Using the special tool, install the side oil seal on the transaxle case.
    • Oil seal installer (MB992140)
    • Handle (MB992075)
    G14213118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

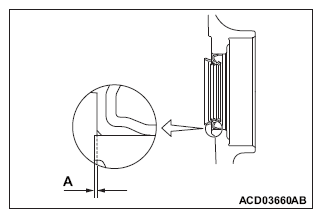

    Depth from the case edge A:

    Within -1.8 ± 0.5 mm (-0.07 ± 0.02 inch) recessed

    G14213119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the side oil seal.
    • Apply transmission fluid when installing the side oil seal.

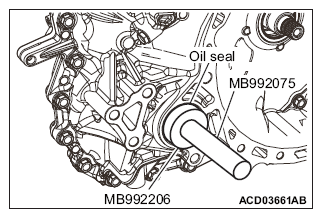

  13. Using the special tools, install the side oil seal on the converter housing. <F1CJC>
    • Oil seal installer (MB992206)
    • Handle (MB992075)
    G14213120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

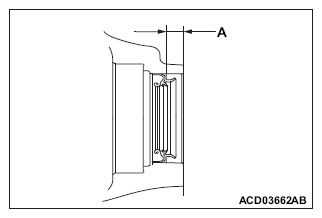

    Depth from the case edge A:

    Within -6.3 ± 0.5 mm (-0.25 ± 0.02 inch) recessed

    G14213121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

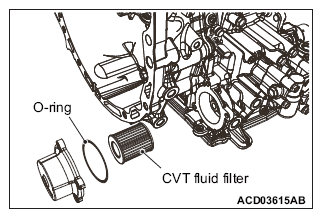

  14. Install the O-ring and CVT fluid filter on the transaxle case.
    G14213122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

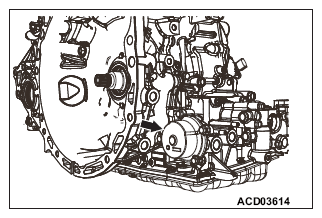

  15. Install the filter cover on the transaxle case, and tighten the fastening bolts to the specified torque of 5.1 Nm (45 in-lb).
    G14213123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

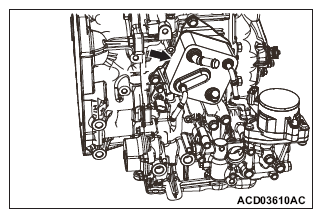

  16. Install the CVT fluid cooler on the transaxle case, and tighten the fastening bolts to the specified torque of 4.2 Nm (37 in-lb).
    G14213124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not re-use the transmission range switch.
  17. Install the transmission range switch on the transaxle case as follows:

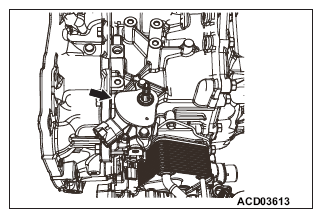

    1. Install the transmission range switch on the transaxle case.
      G14213125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

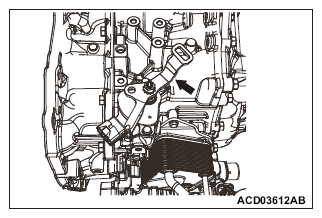

    2. Install the shift lever on the manual shaft, and tighten the fastening nuts to the specified torque of 17.2 Nm (13 ft-lb).
    3. Set the manual shaft at N position.
      G14213126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

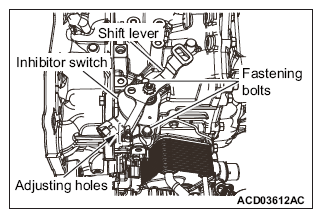

    4. Insert pins etc. 5 mm (0.2 inch) in adjusting holes in both transmission range switch and shift lever, and after alignment, tighten the fastening bolts to the specified torque of 5.9 Nm (52 in-lb).
    G14213127Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.
  18. Install the O-ring on the secondary pulley speed sensor.
    G14213128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

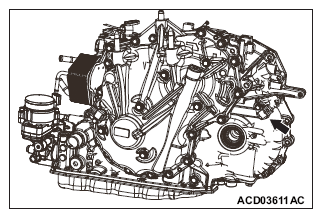

  19. Install the secondary pulley speed sensor on the transaxle case, and tighten the fastening bolts to the specified torque of 5.9 Nm (52 in-lb).
    G14213129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

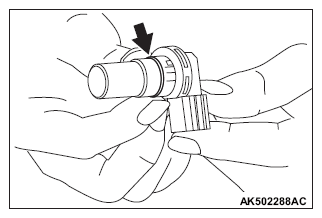

  20. Install the O-ring on the primary pulley speed sensor.
    G14213130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

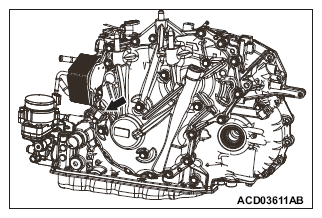

  21. Install the primary pulley speed sensor on the side cover, and tighten the fastening bolts to the specified torque of 5.9 Nm (52 in-lb).
    G14213131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

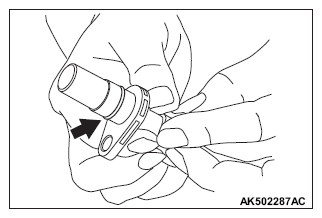

  22. Install the O-ring on the turbine speed sensor.
    G14213132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

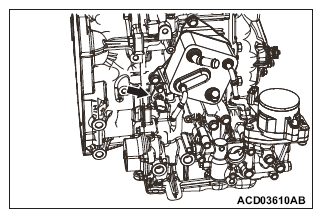

  23. Install the turbine speed sensor on the transaxle case, and tighten the fastening bolts to the specified torque of 5.9 Nm (52 in-lb).
    G14213133Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

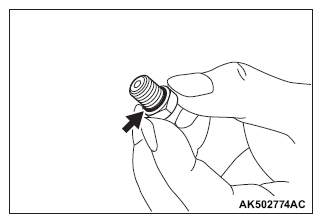

  24. Install the O-ring on the plug.
    G14213134Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

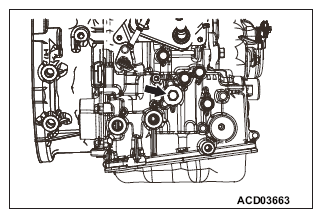

  25. Fasten the plug on the transaxle case to the specified torque of 7.5 Nm (66 in-lb).
    G14213135Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Do not re-use the O-ring.
    • Apply transmission fluid when installing the O-ring.

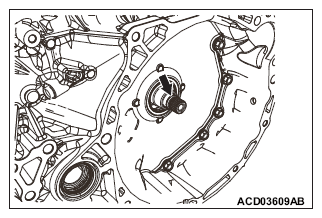

  26. Install the O-ring on the input shaft.
    G14213136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When conducting measurements, measure two or more places, and find the average value.

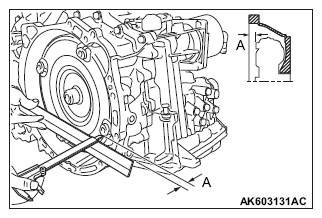

  27. Install the torque converter on the transaxle, and measure the size (A) to check if it meets the standard value.

    Standard size (A): 13 mm (0.5 inch)

    G14213137Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not re-use the drain plug gasket.
  28. Install the drain plug and drain plug gasket on the transaxle case, and tighten to the specified torque of 34.3 Nm (25 ft-lb).
    CAUTION: Do not re-use the gasket.
  29. Install the oil cooler feed hose, oil cooler return hose <Vehicles without air-cooled oil cooler assembly>, oil cooler pipe assembly, oil cooler tube assembly <Vehicles with air-cooled oil cooler assembly>, eye bolt and gasket on the transaxle, and tighten to the specified torque.
    • Eye bolt: 29 ± 3 Nm (21 ± 2 ft-lb)
    • Oil cooler tube assembly mounting bolt: 9.5 ± 3.5 Nm (84 ± 30 in-lb)
  30. Install the control cable bracket and breather hose on the transaxle, and tighten the fastening bolts to the specified torque of 25 ± 4 Nm (18 ± 2 ft-lb).
  31. Install the oil filler tube and dipstick on the transaxle, and tighten the fastening bolts to the specified torque of 8.5 ± 3.5 N m (75 ± 31 in-lb).
  32. Install the radiator hose bracket, harness bracket, corrugate clamp bracket and air breather bracket on the transaxle, and tighten the fastening bolts to the specified torque of 25 ± 4 Nm (18 ± 2 ft-lb).
  33. Install the front and rear roll stopper bracket on the transaxle, and tighten the fastening bolts to the specified torque of 90 ± 10 Nm (66 ± 7 ft-lb).
  34. Install the transfer on the transaxle, and tighten the fastening bolts to the specified torque of 69 ± 9 N m (51 ± 6 ft-lb). <W1CJC>
