»B« Pulley Installation

CAUTION: Use care not to damage the rotor.

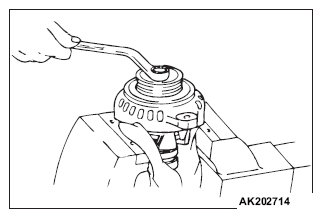

With the pulley side facing up, hold the rotor in a vice and install the pulley.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
