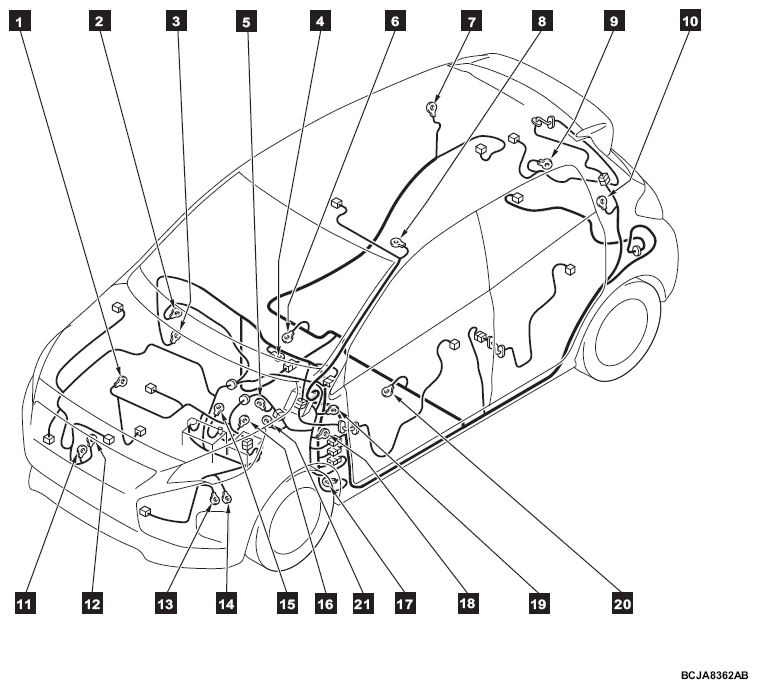

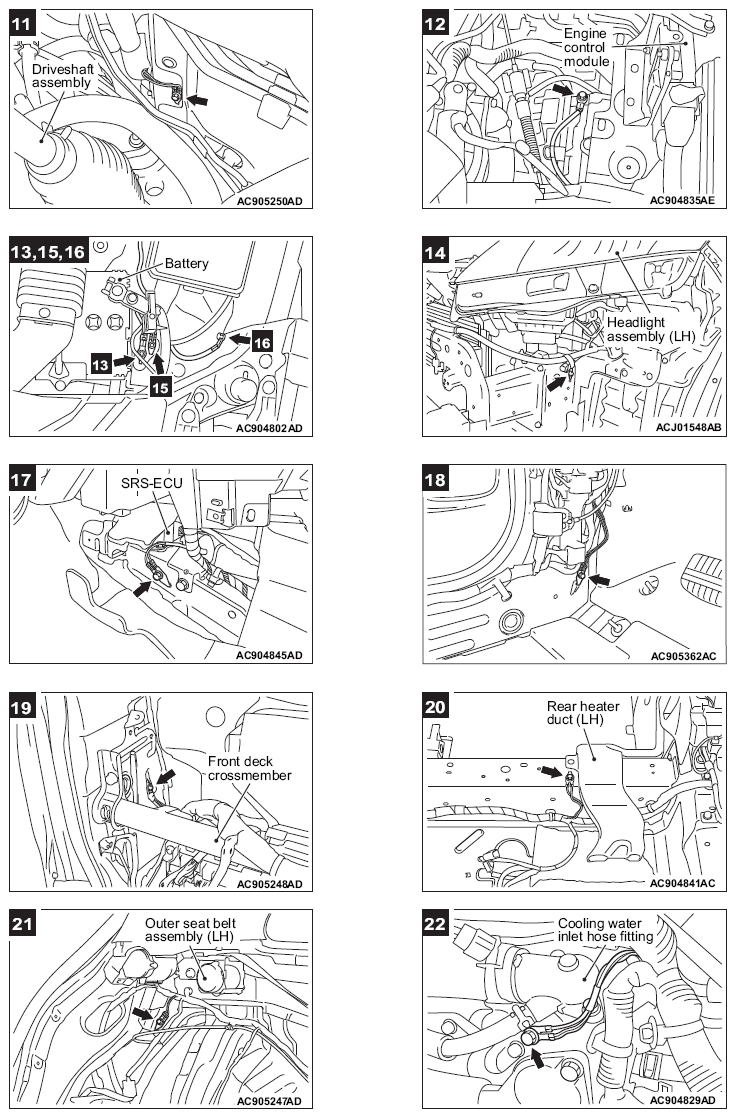

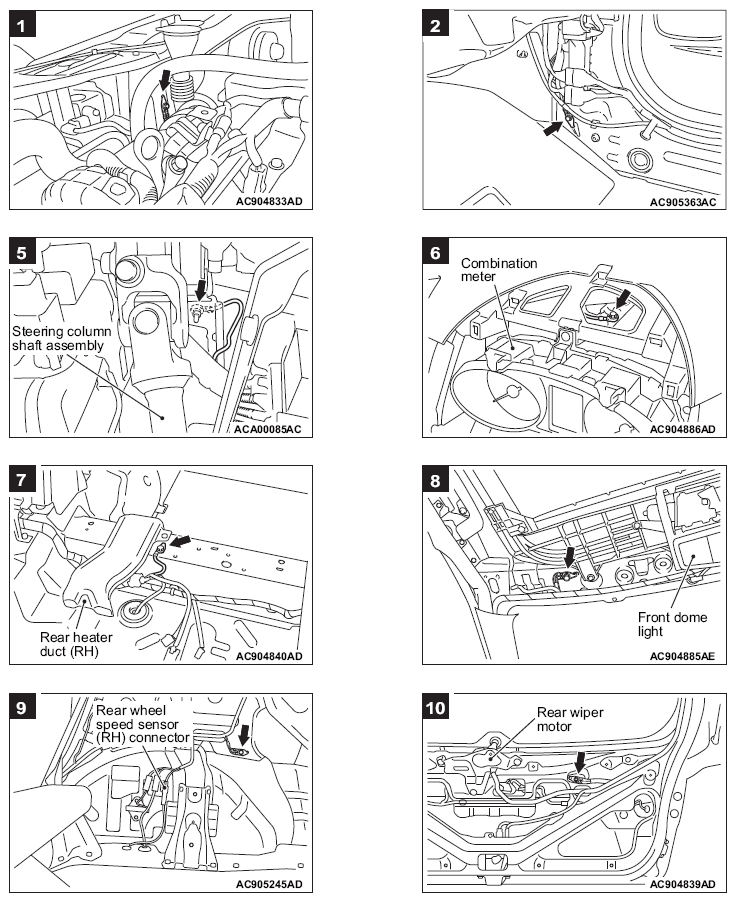

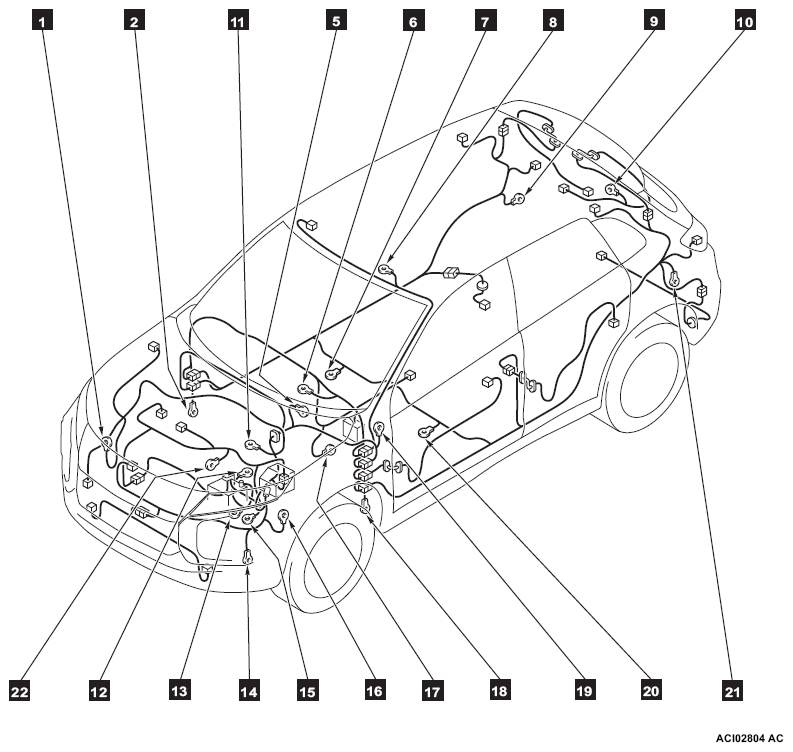

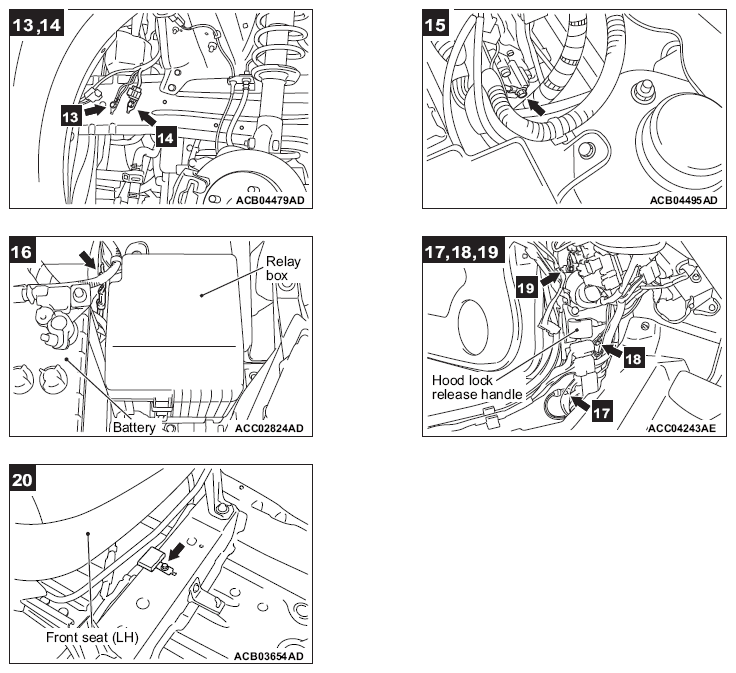

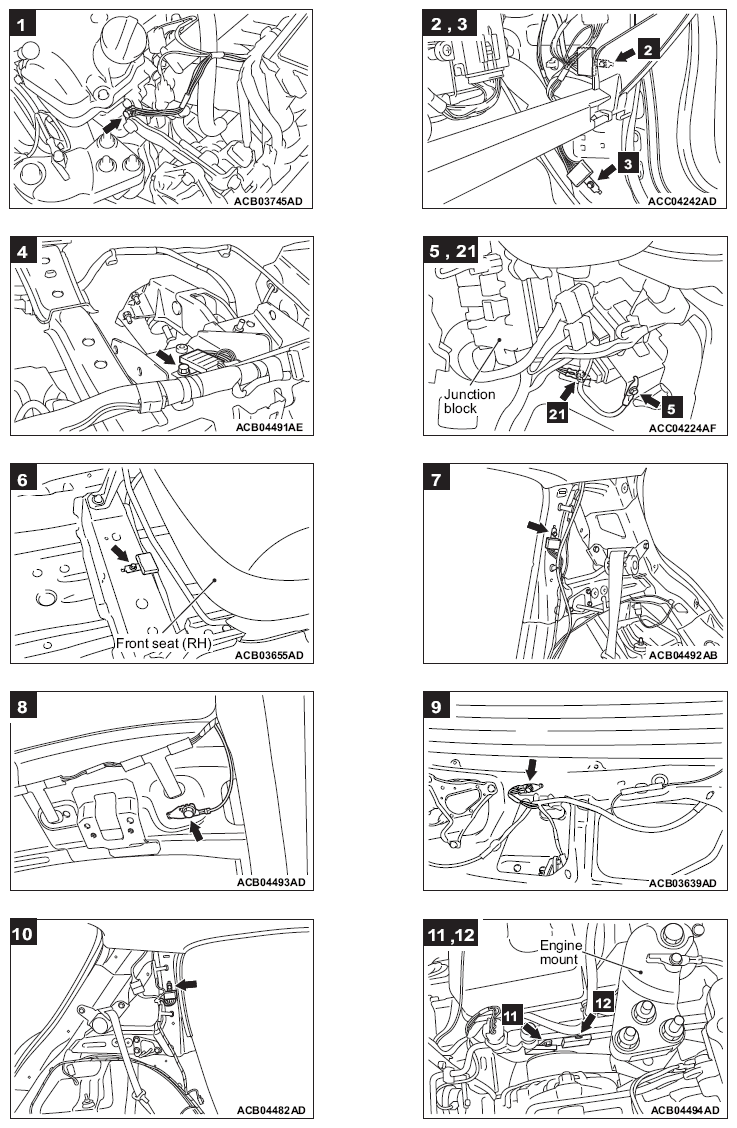

Component Locations: Grounding
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Same ground numbers are used in the circuit diagram.
