Charging System

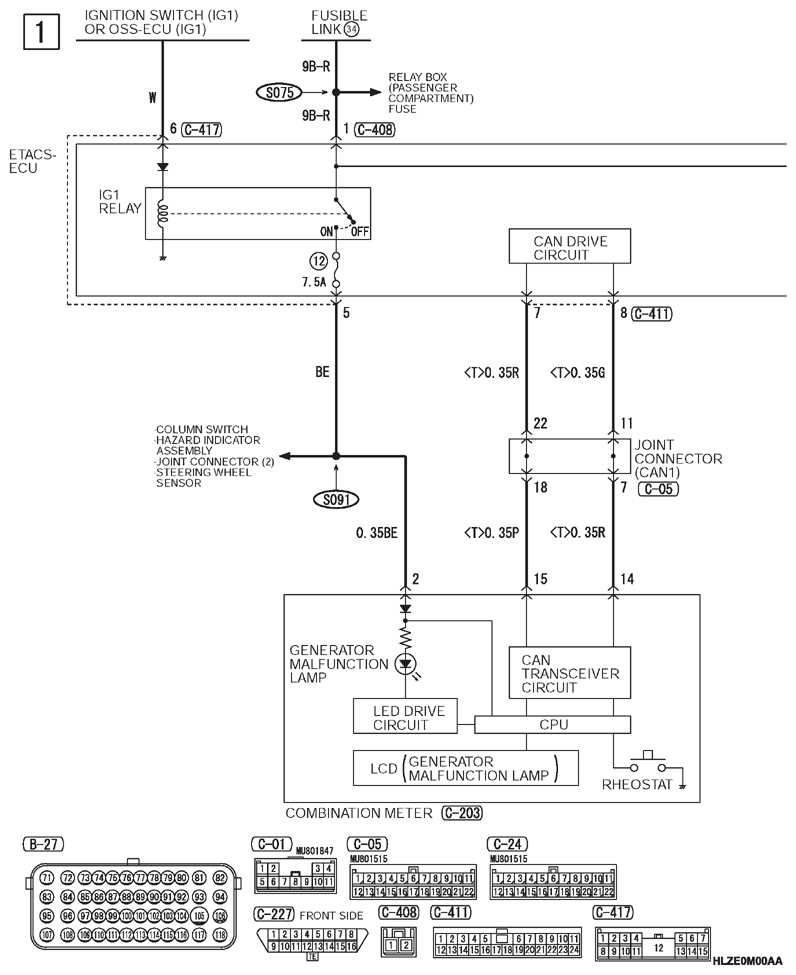

G13346123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

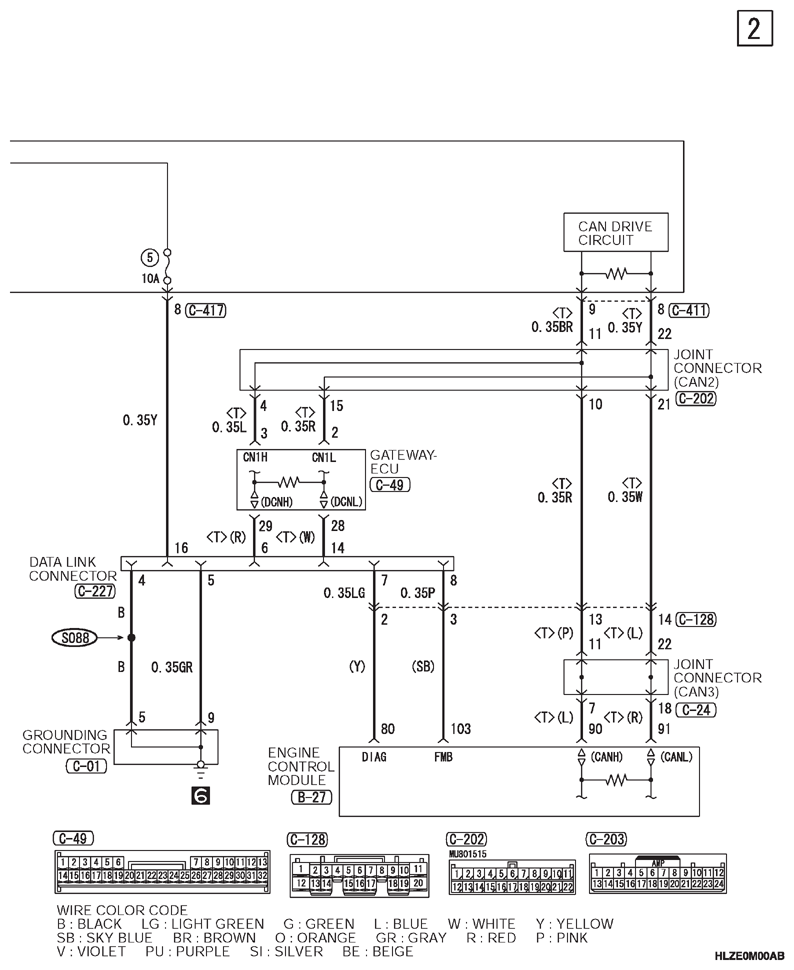

G13346124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

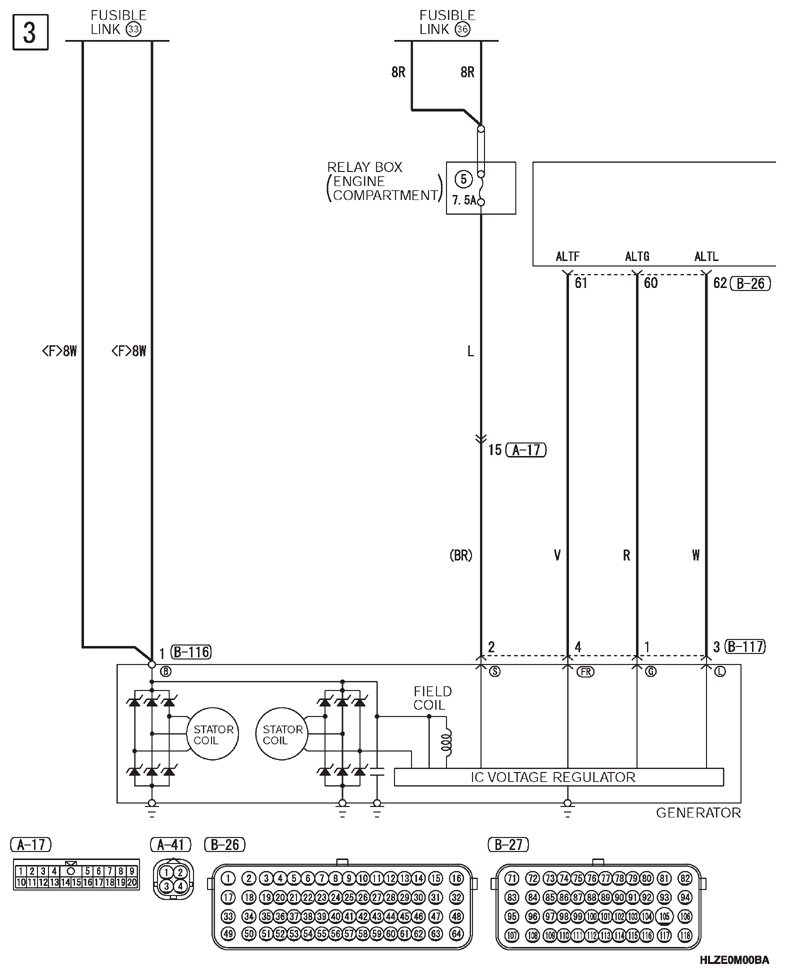

G13346125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

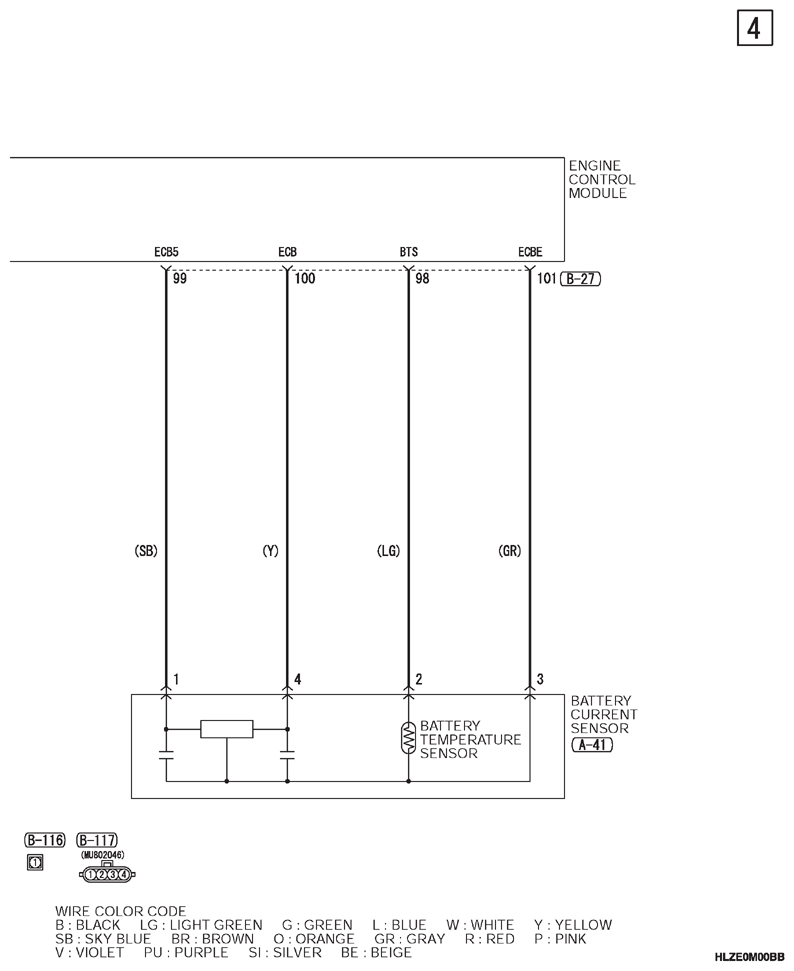

G13346126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
