Cruise Control System

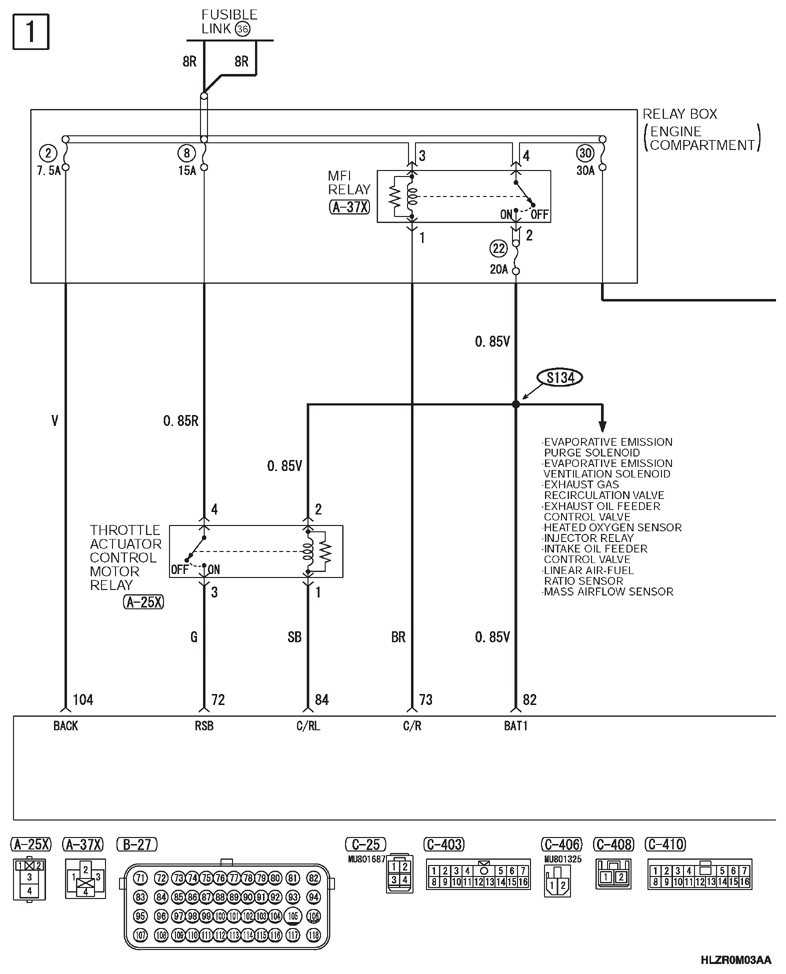

G13346318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

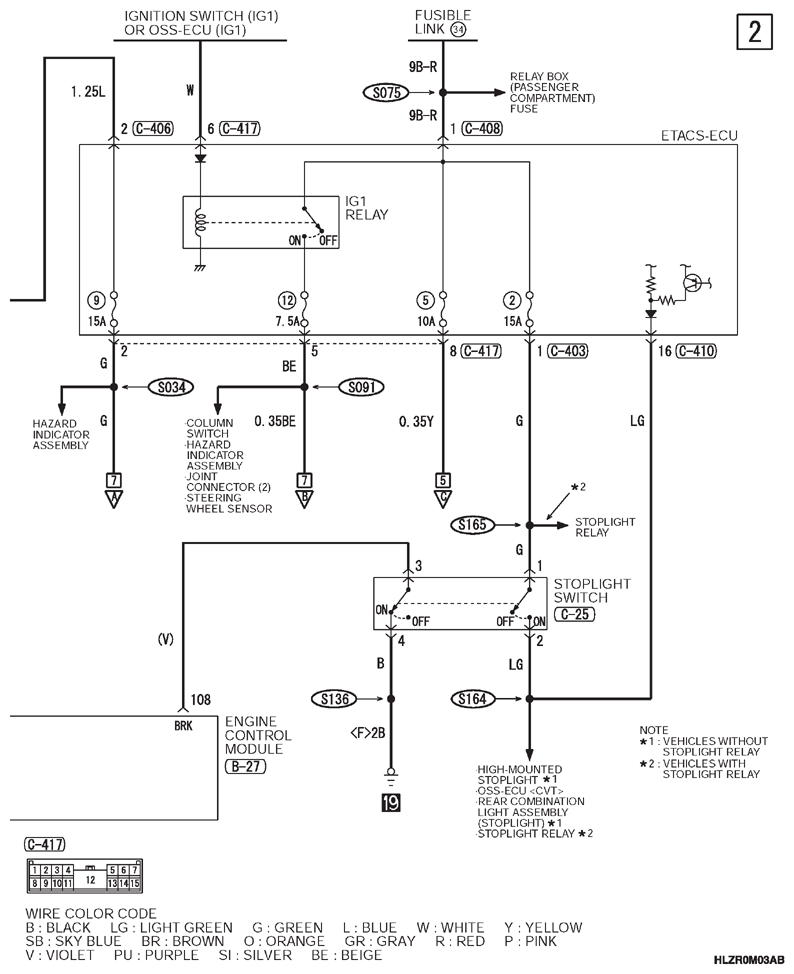

G13346319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

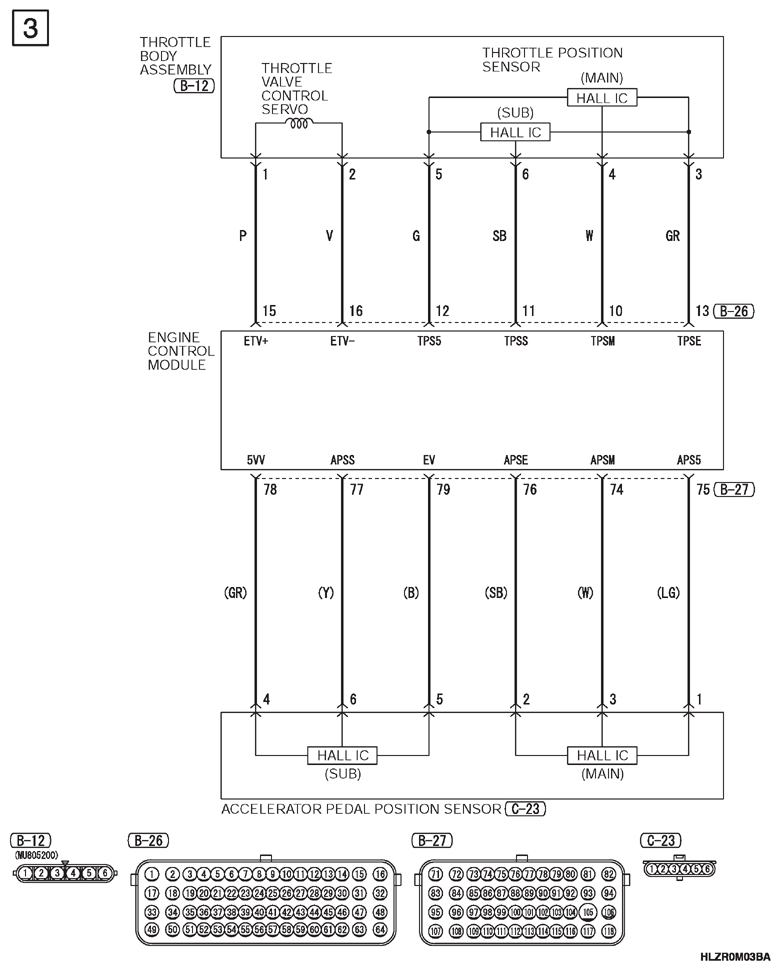

G13346320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

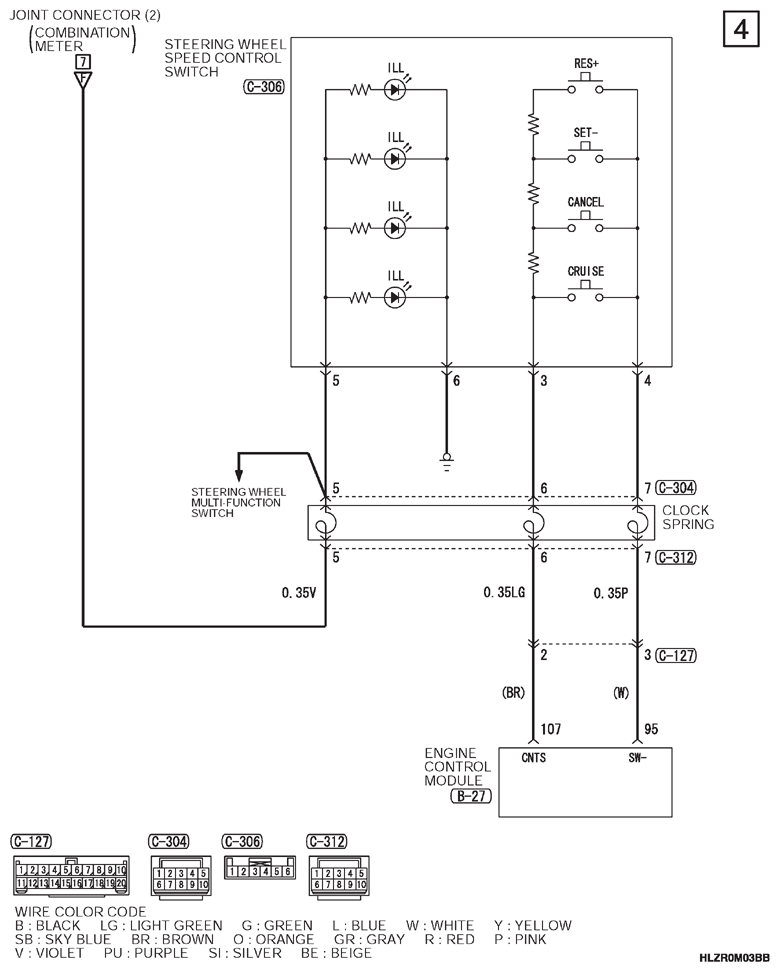

G13346321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

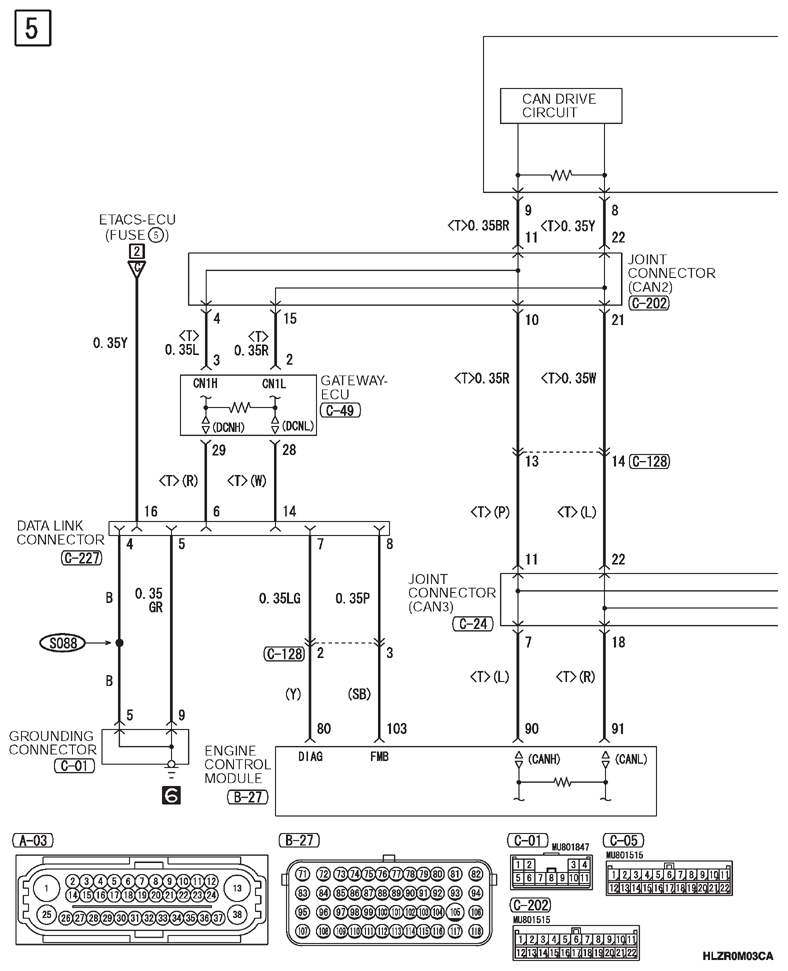

G13346322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

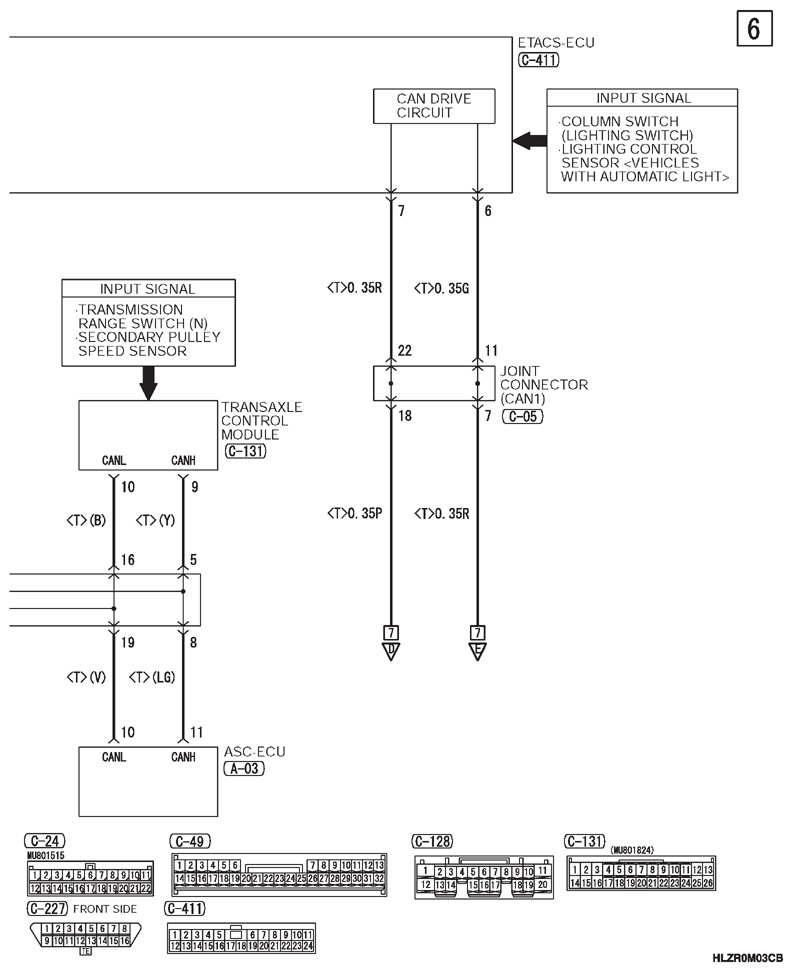

G13346323Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

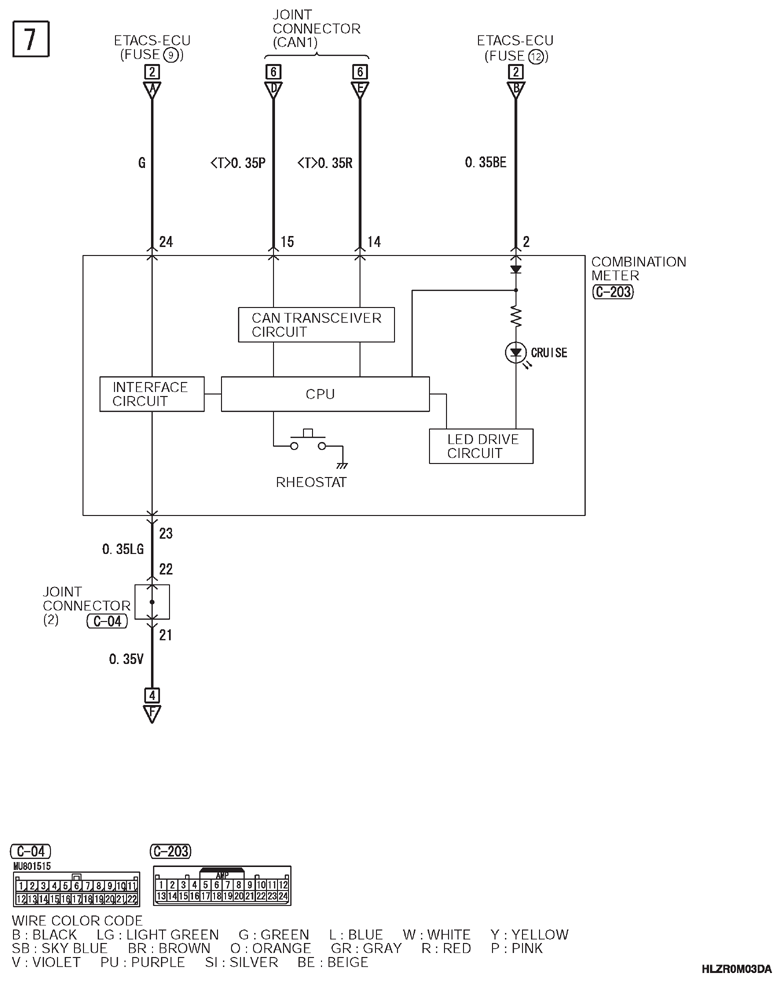

G13346324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
