Ignition System

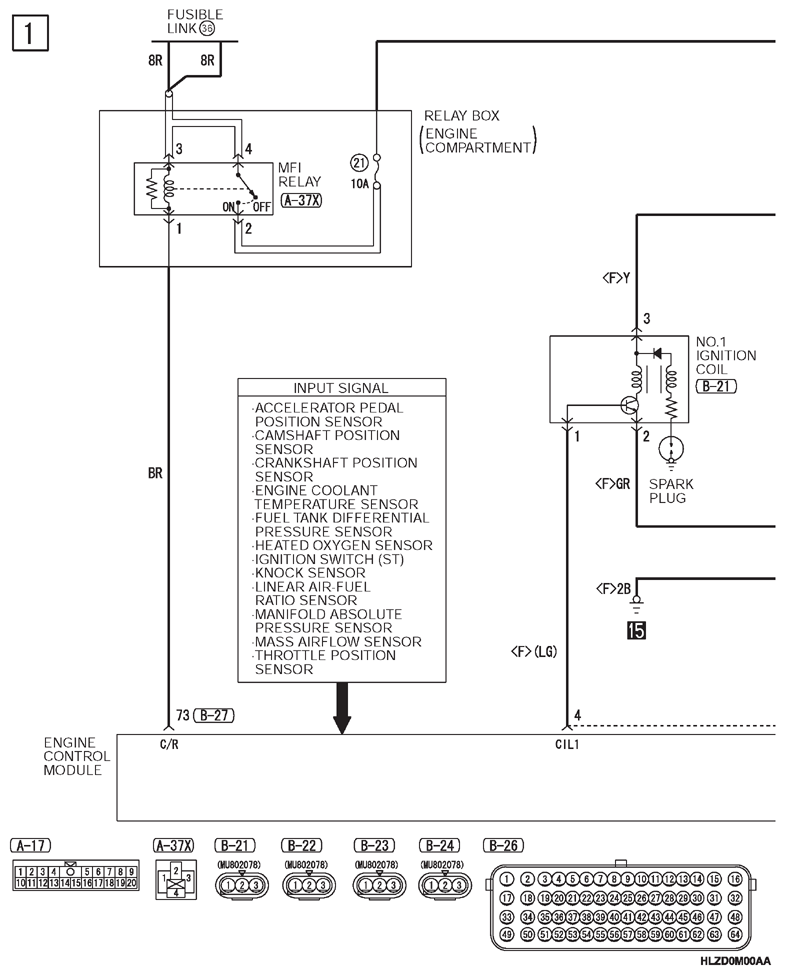

G13346120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

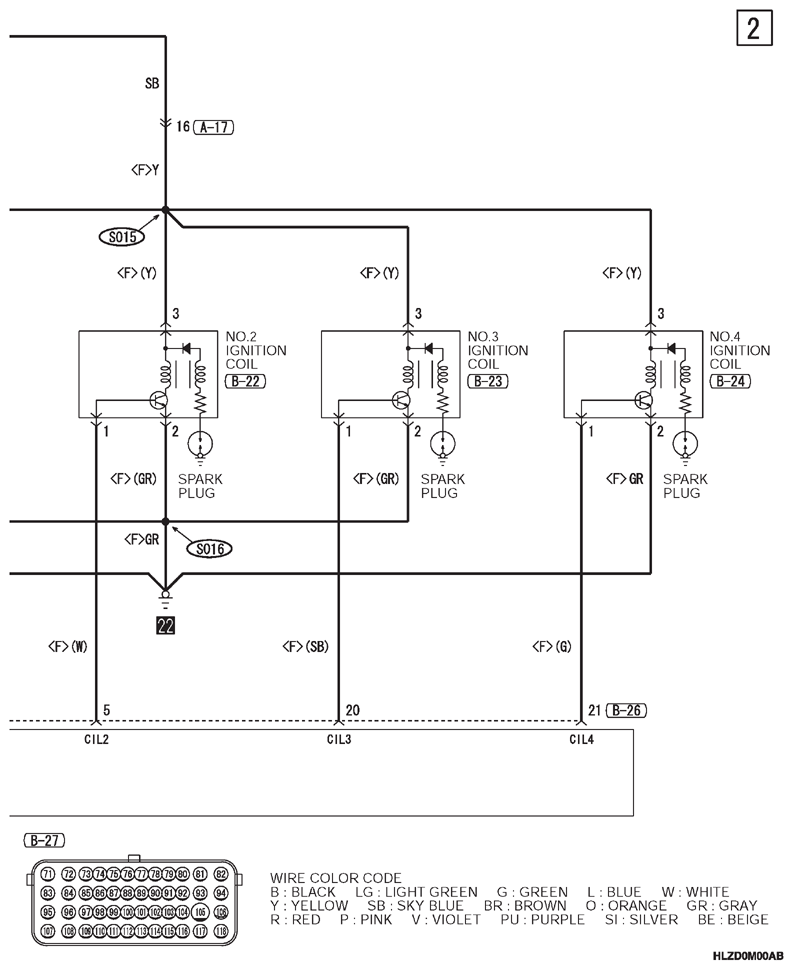

G13346121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

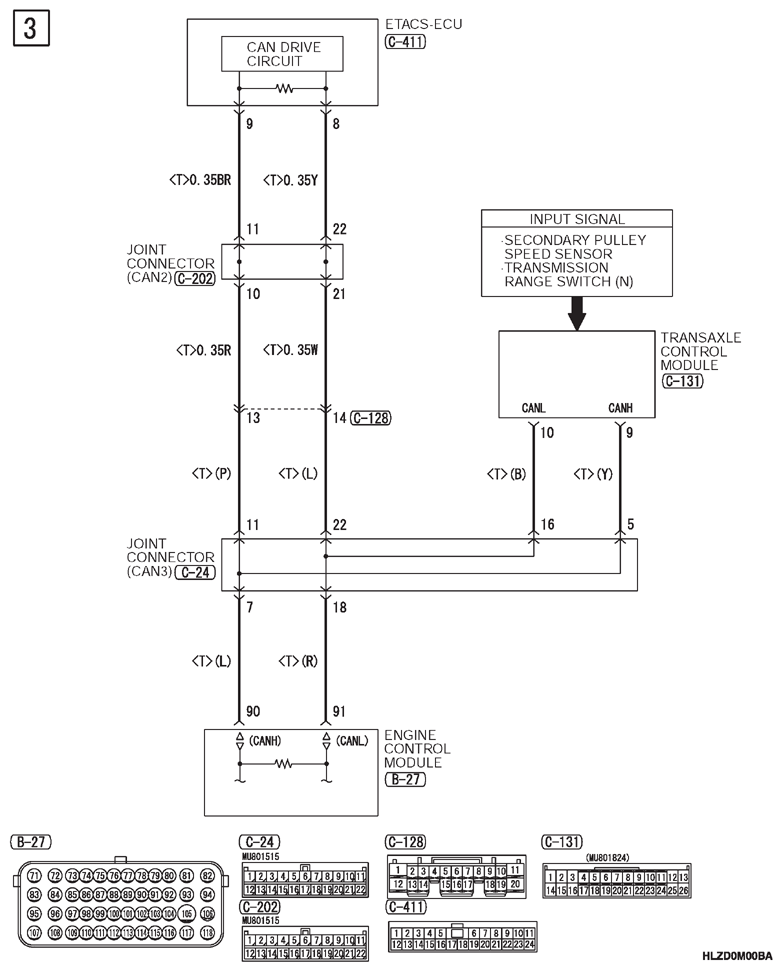

G13346122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
