One Touch Start System

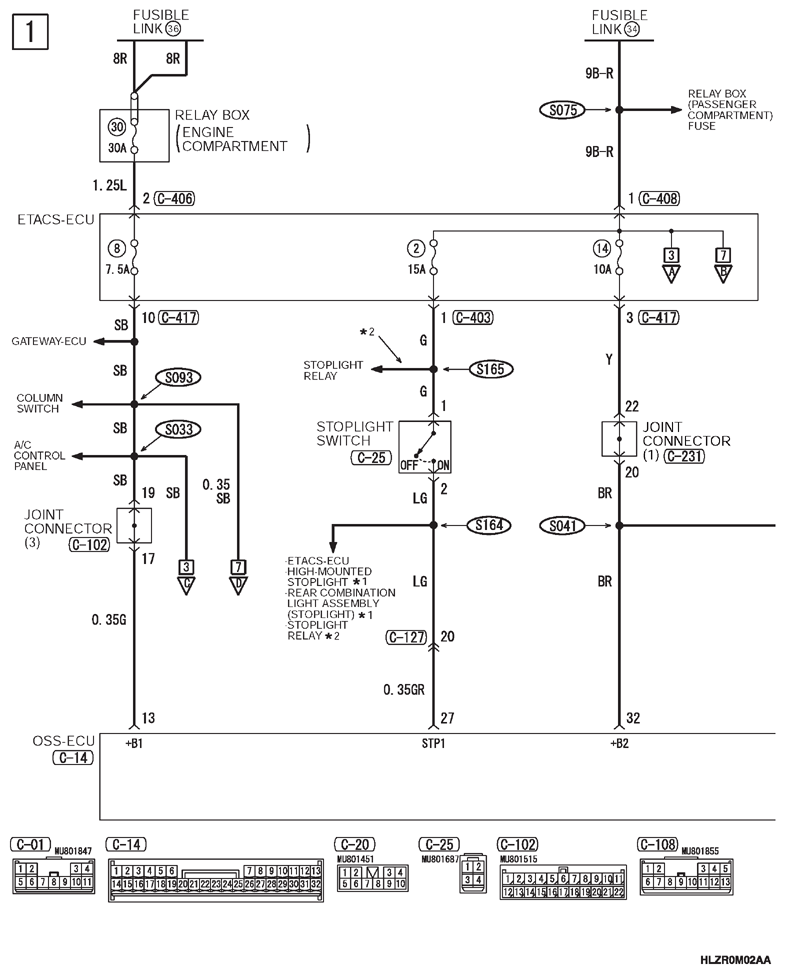

G13346307Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

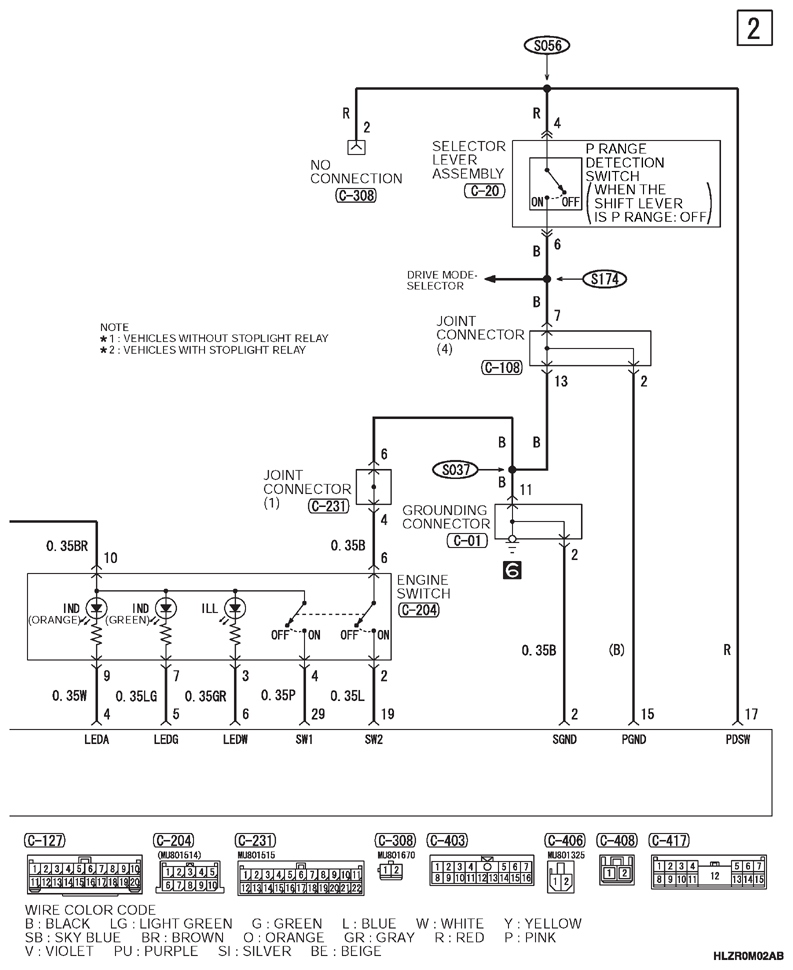

G13346308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

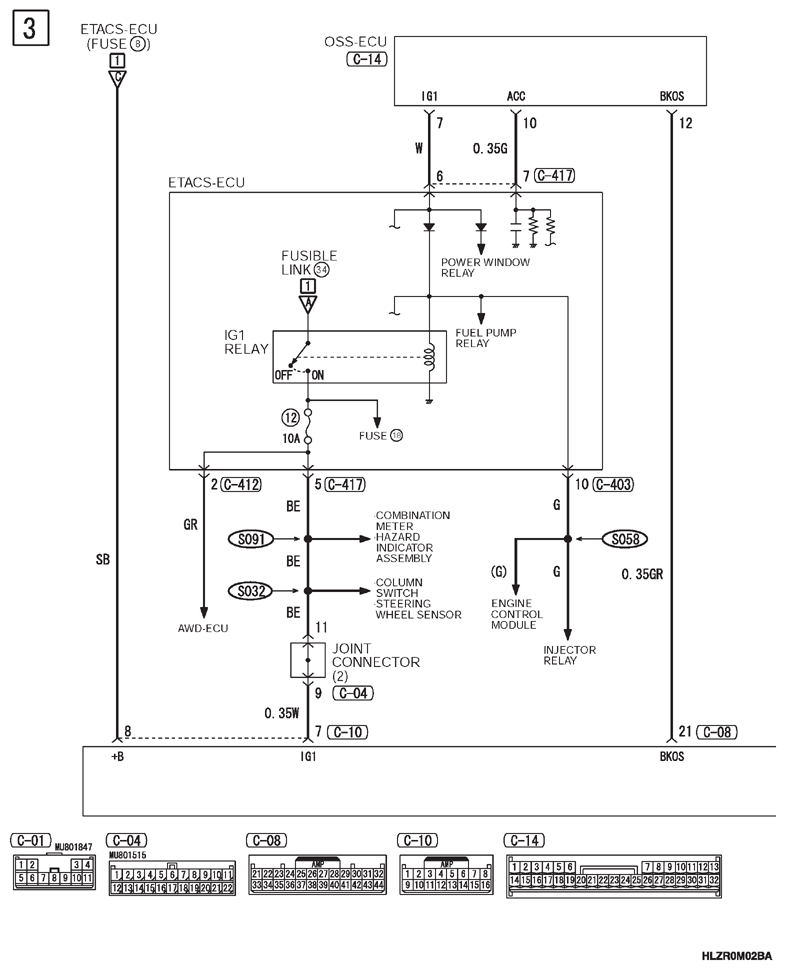

G13346309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

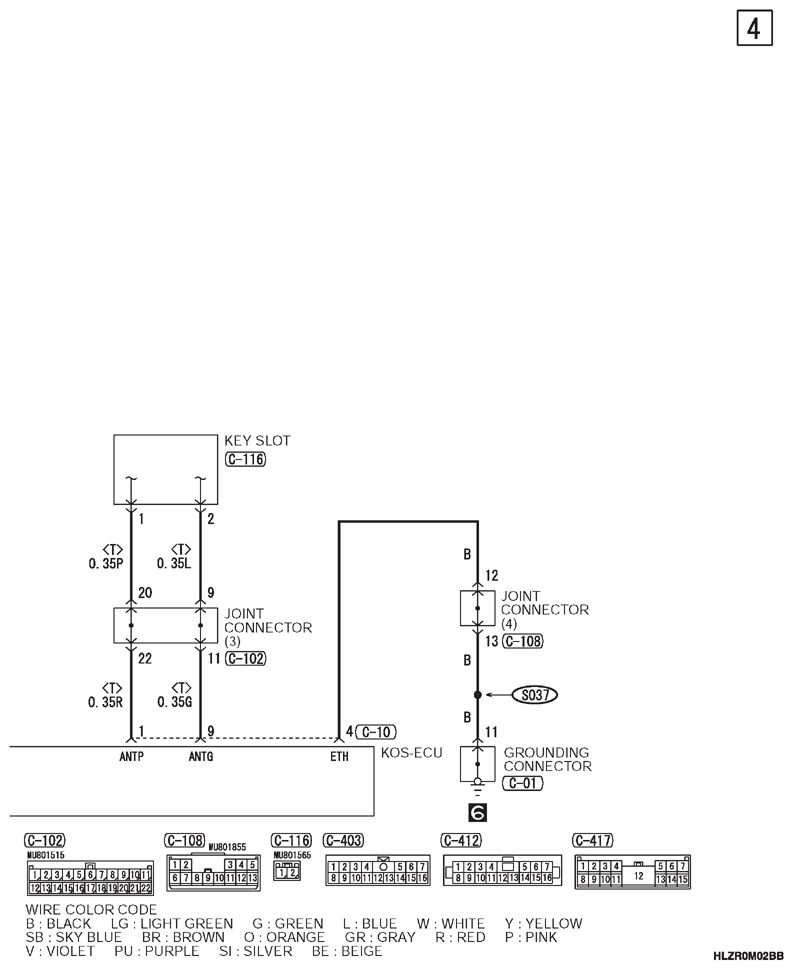

G13346310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

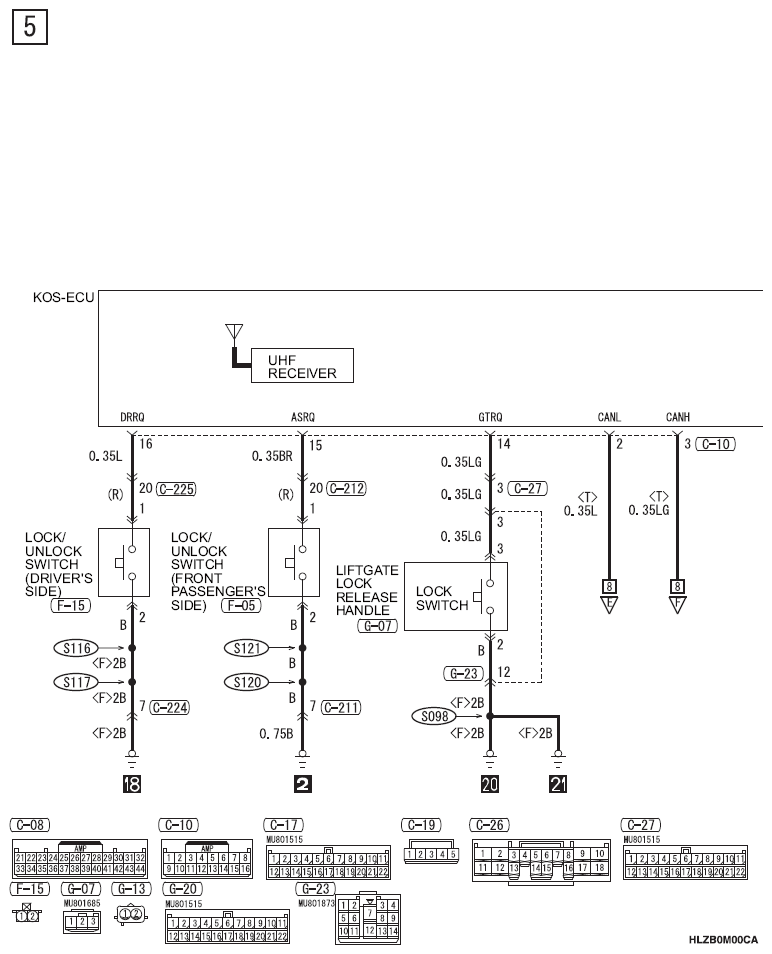

G14220358Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G13346312Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

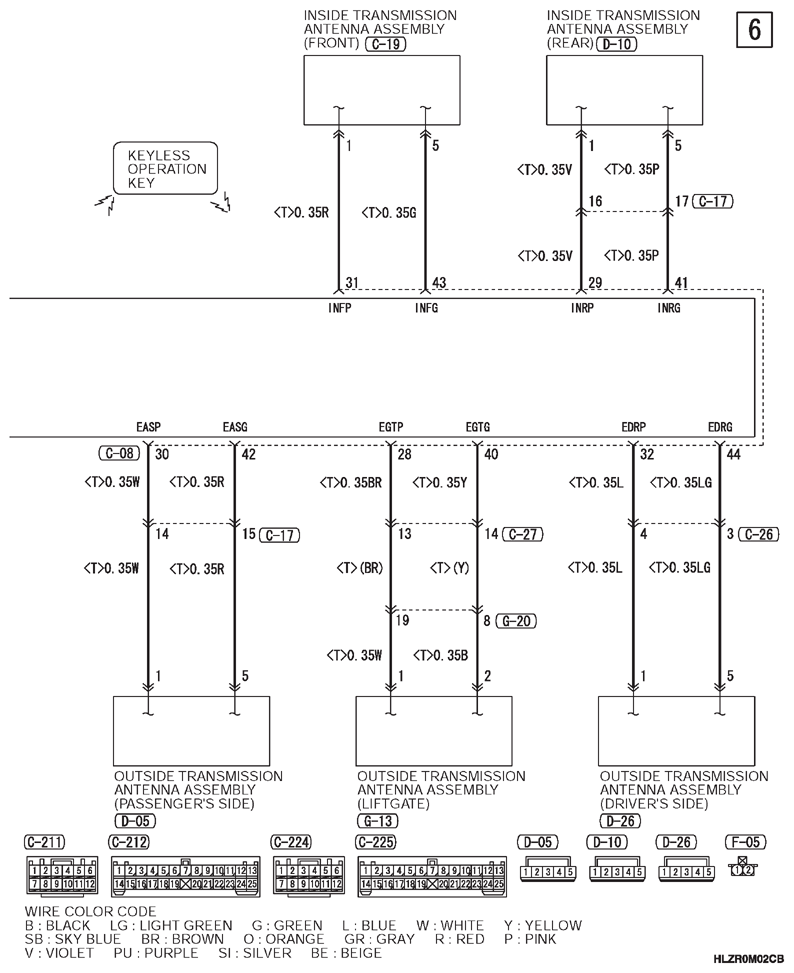

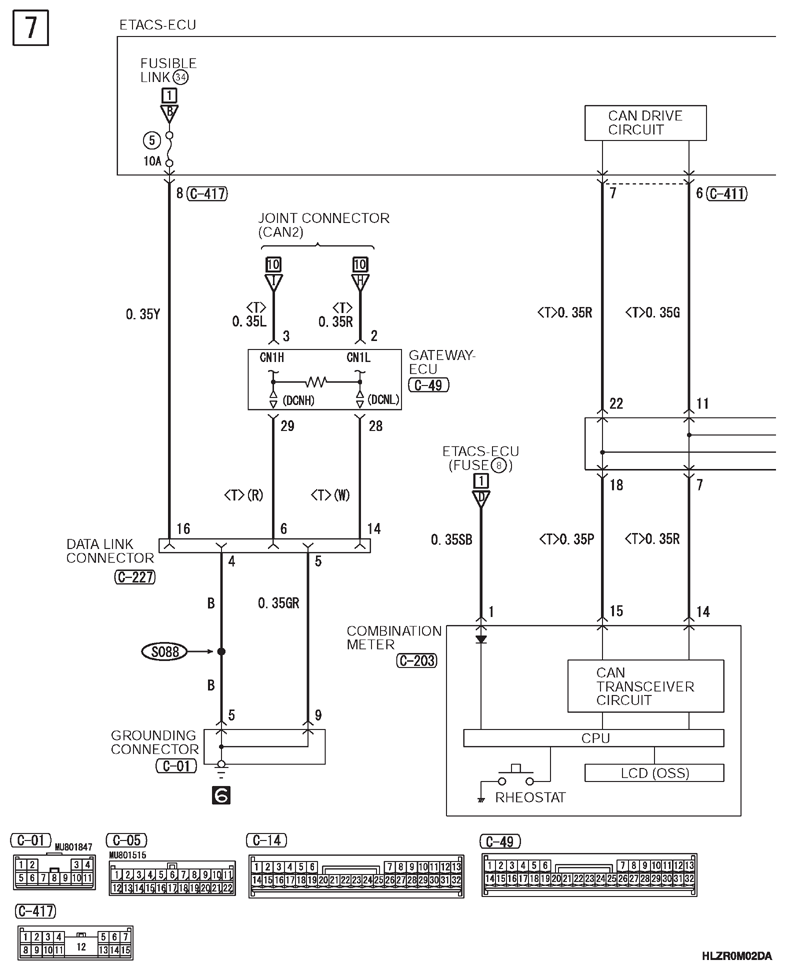

G13346313Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

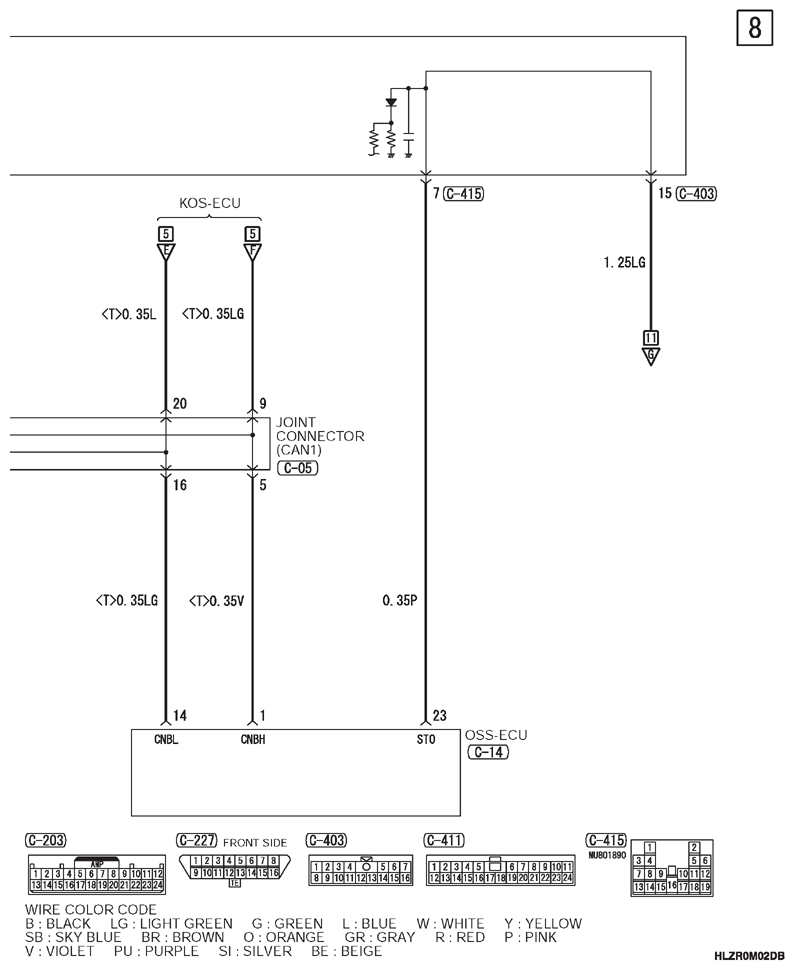

G13346314Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

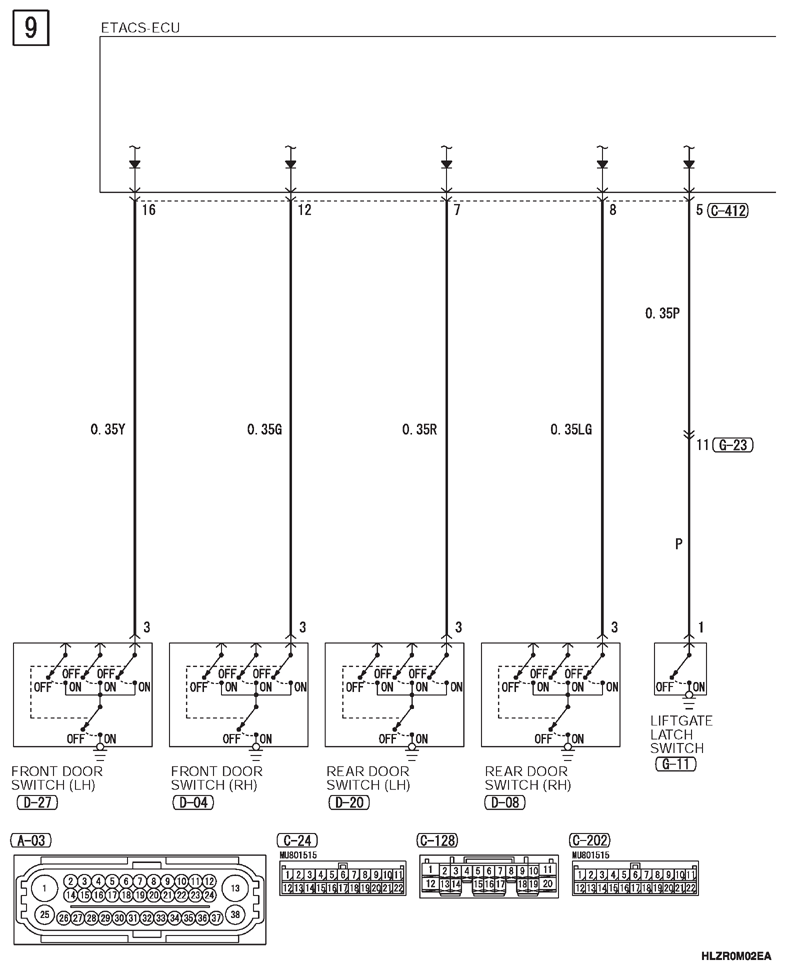

G13346315Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

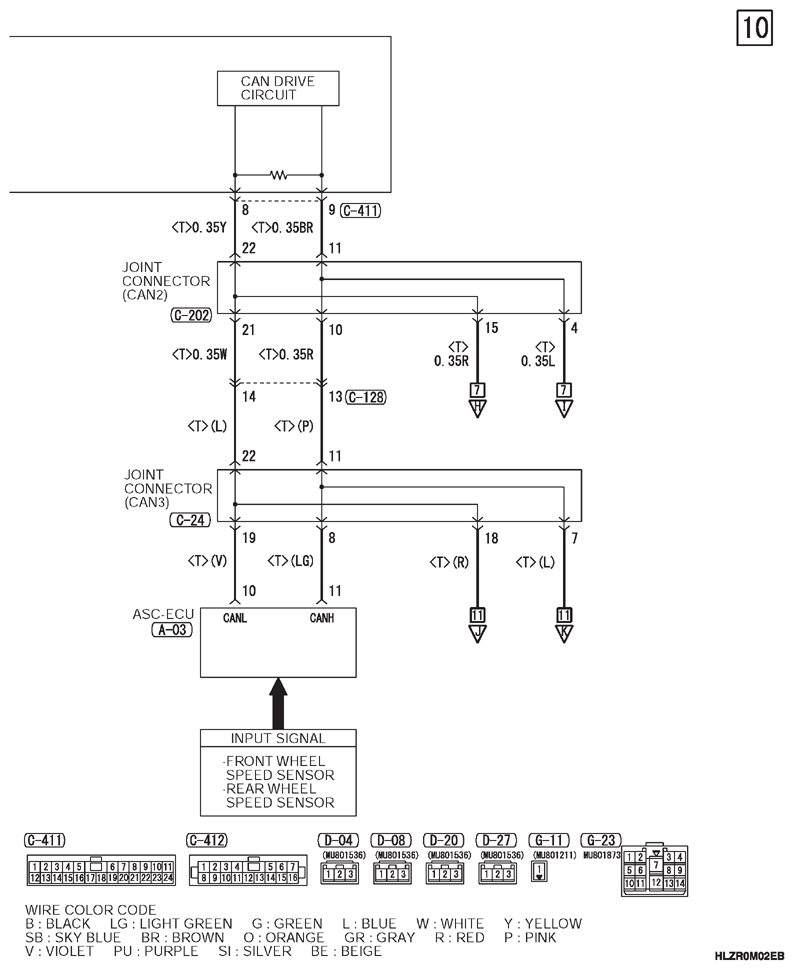

G13346316Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

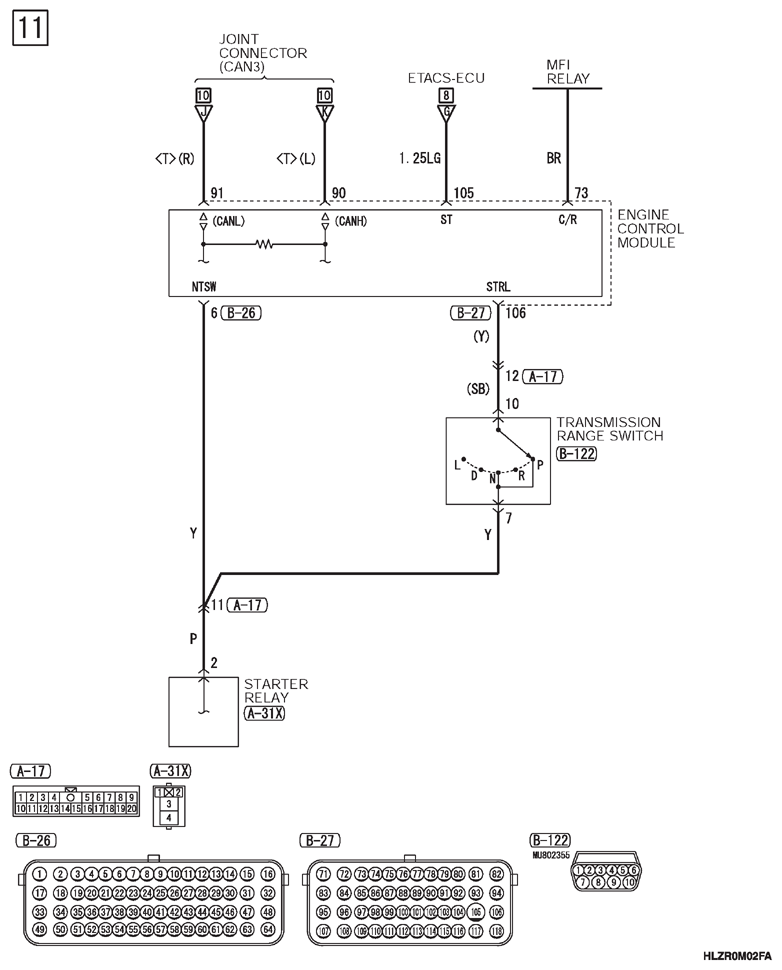

G13346317Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
