Power Distribution System

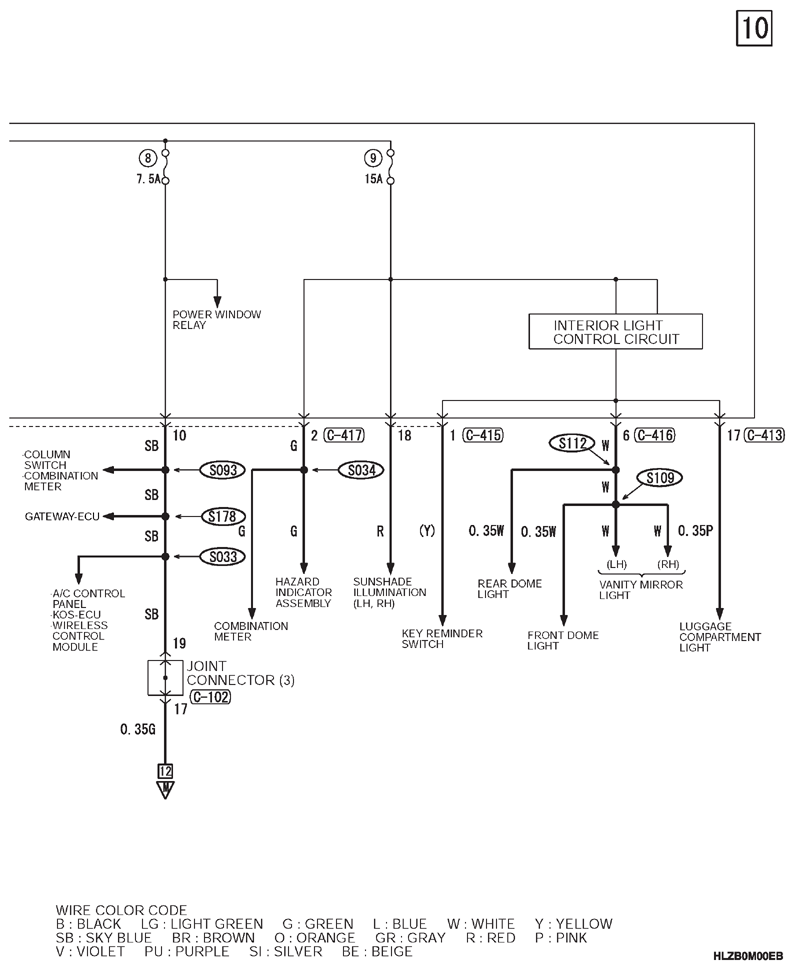

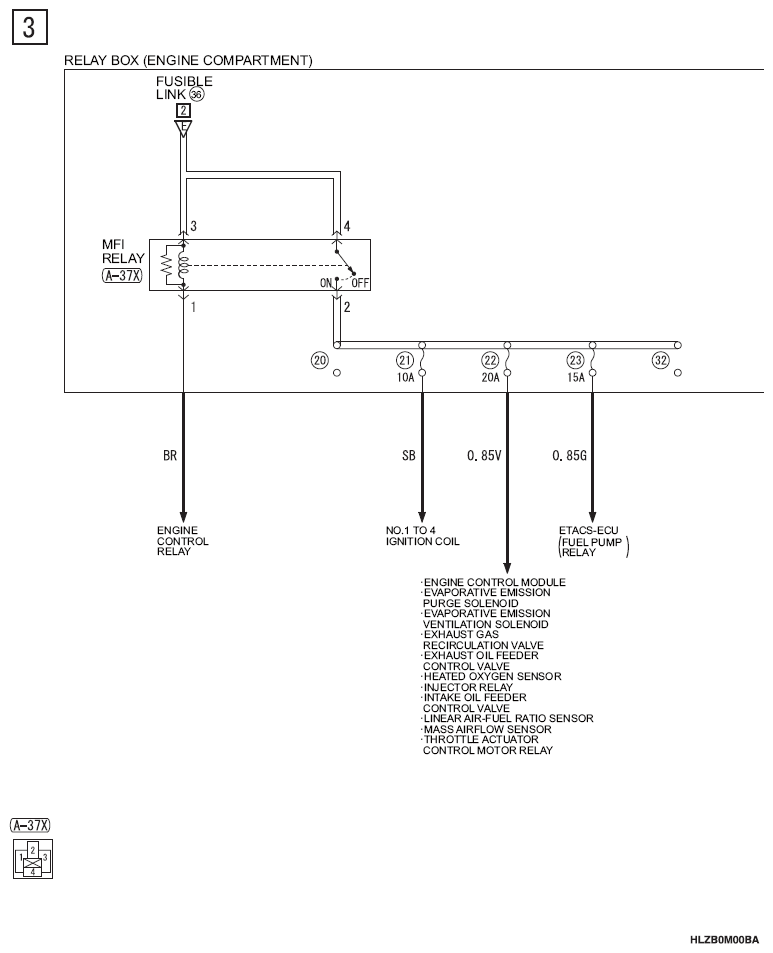

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

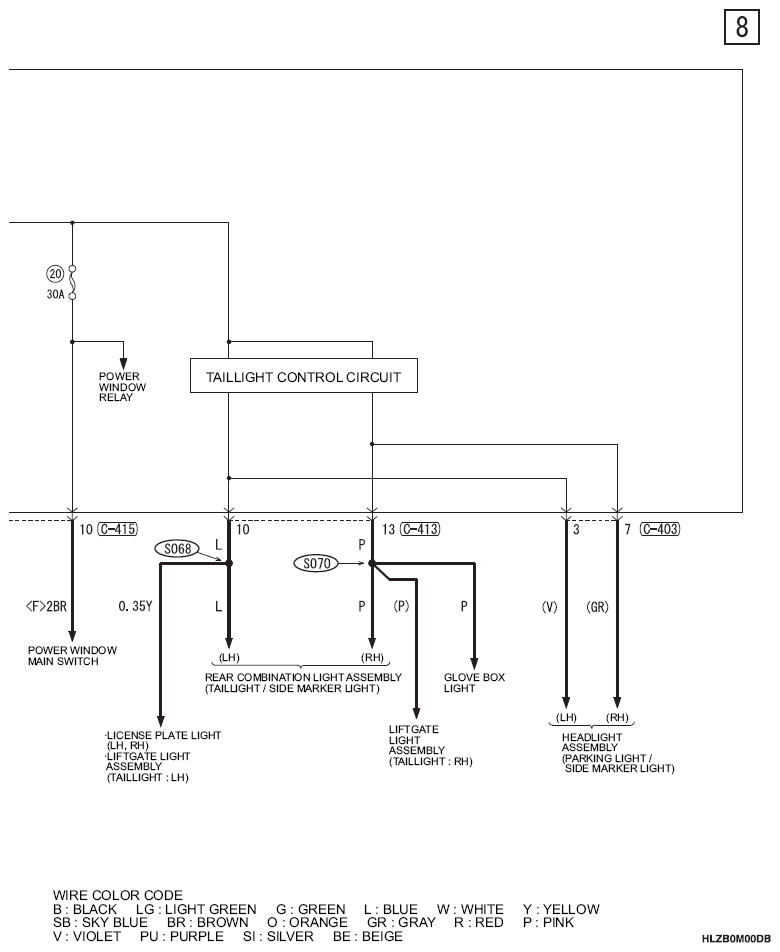

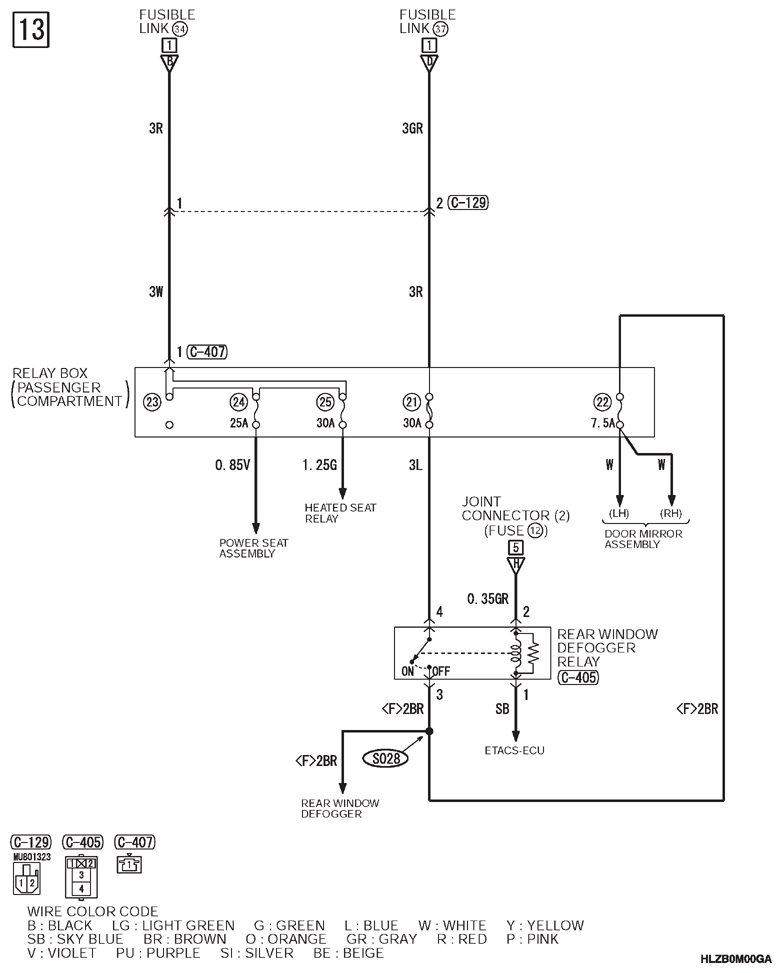

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

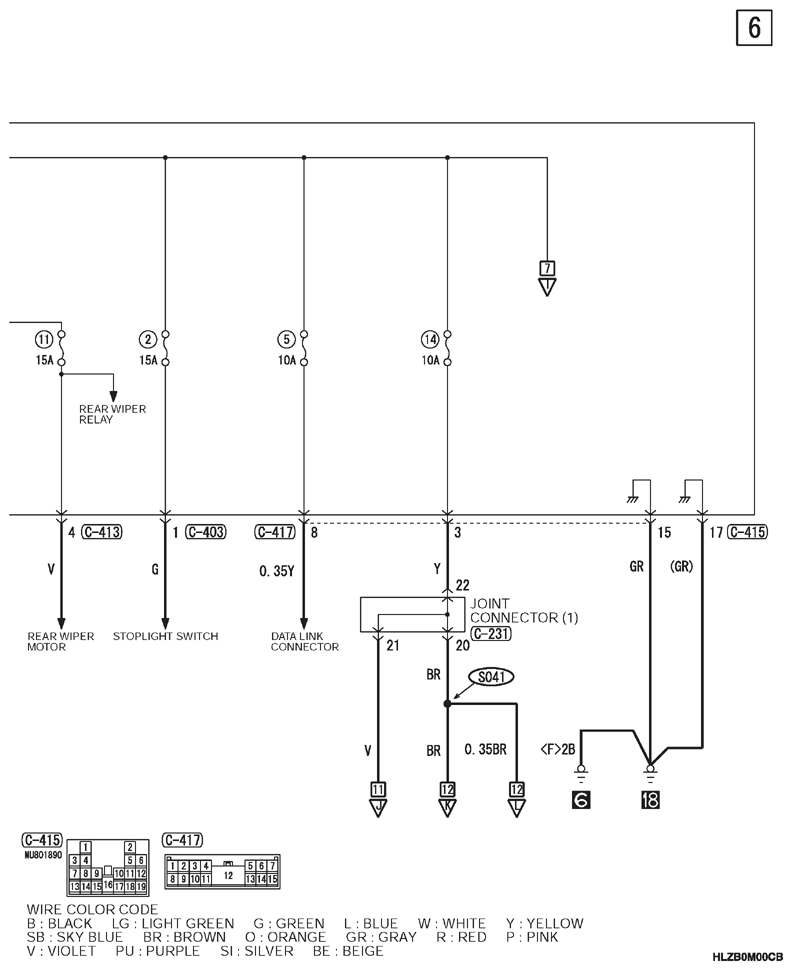

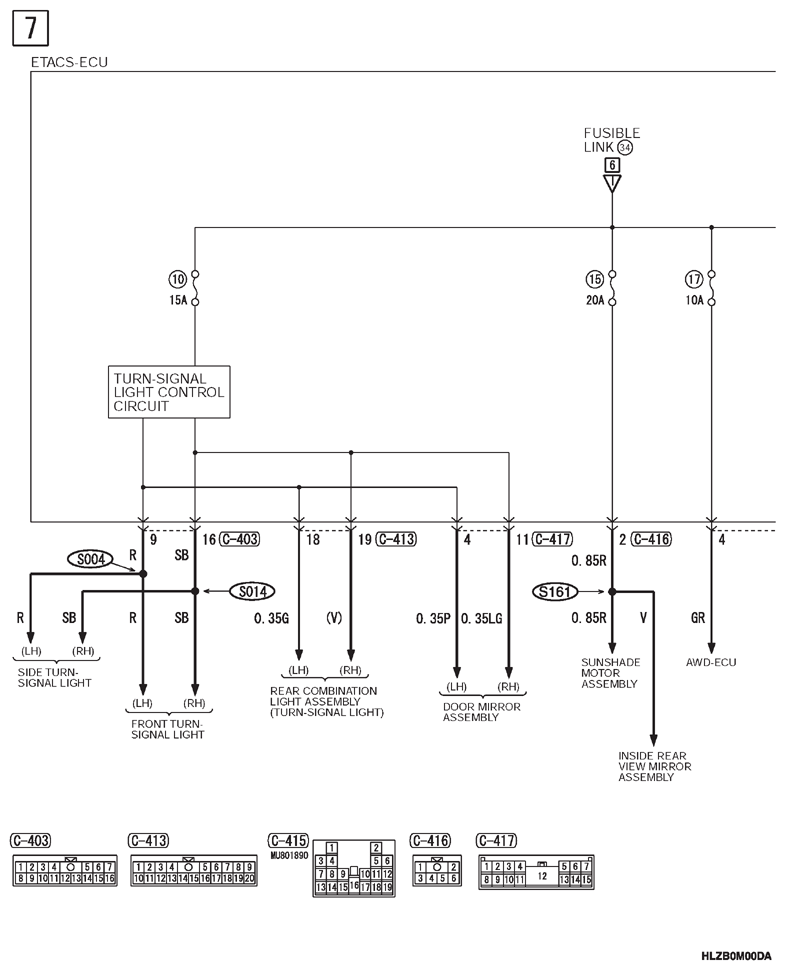

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

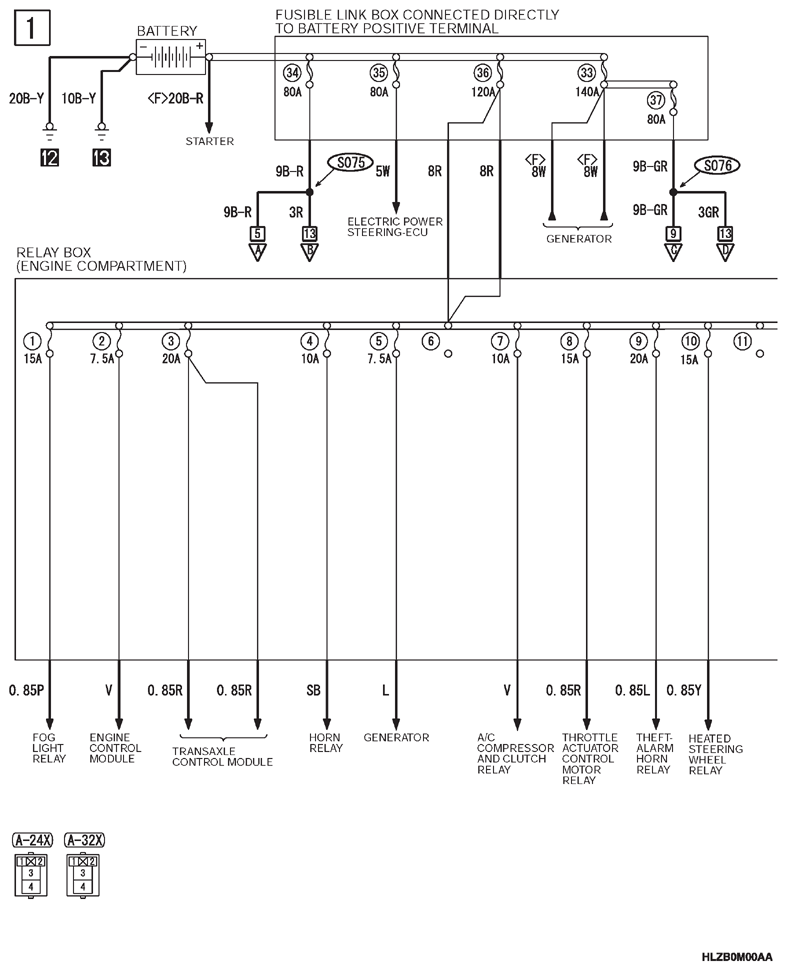

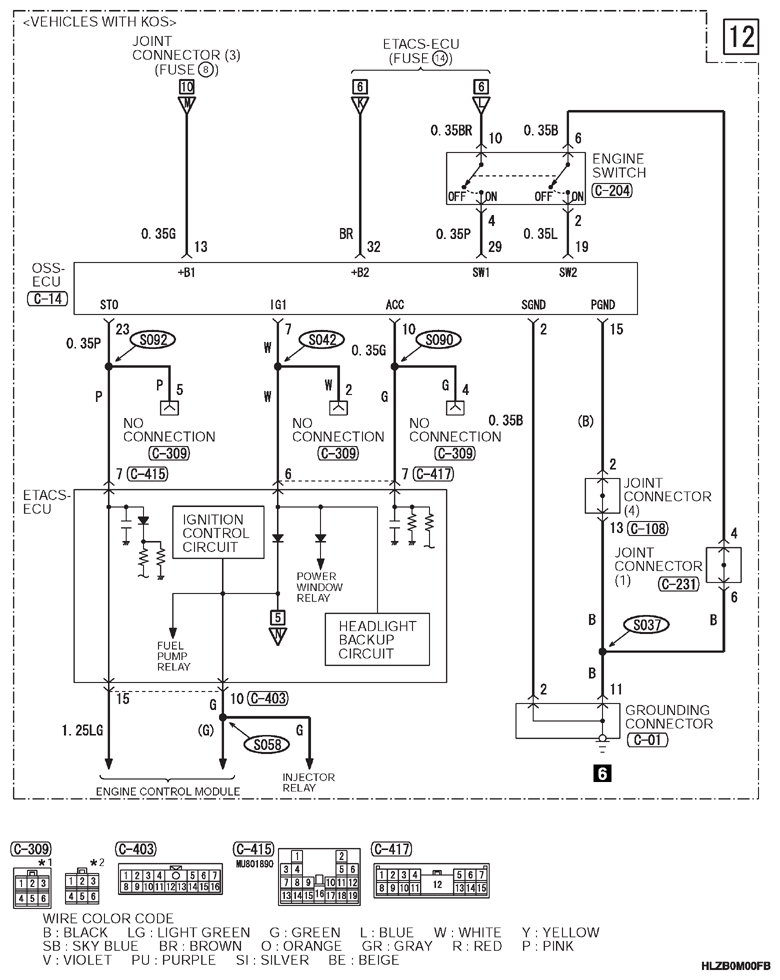

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

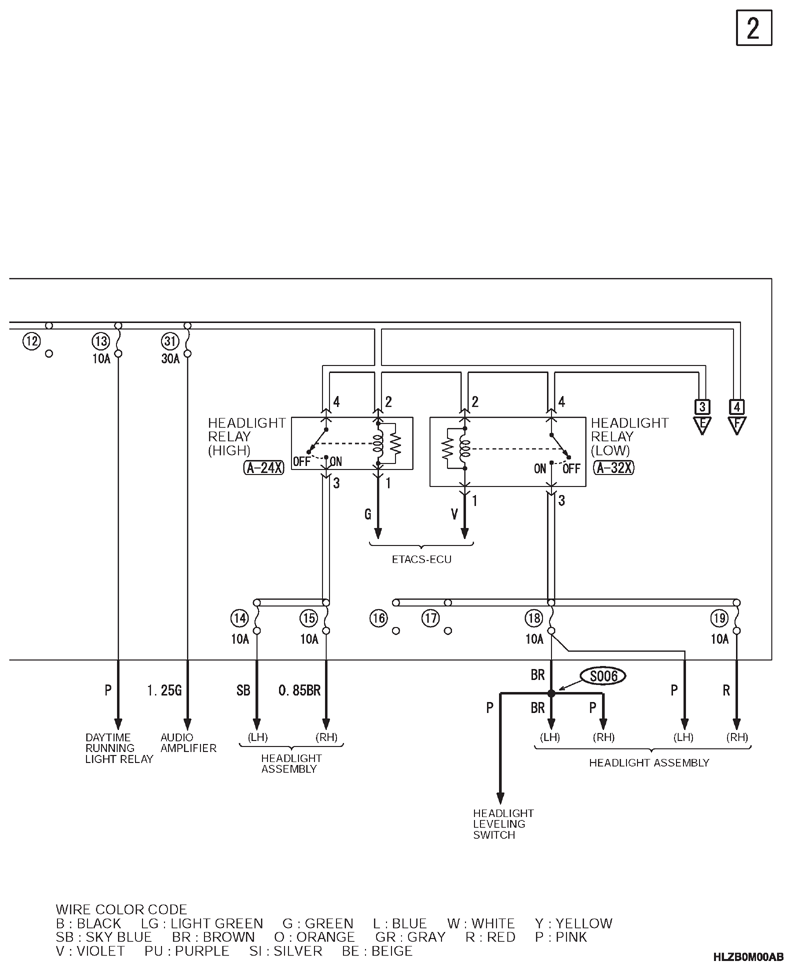

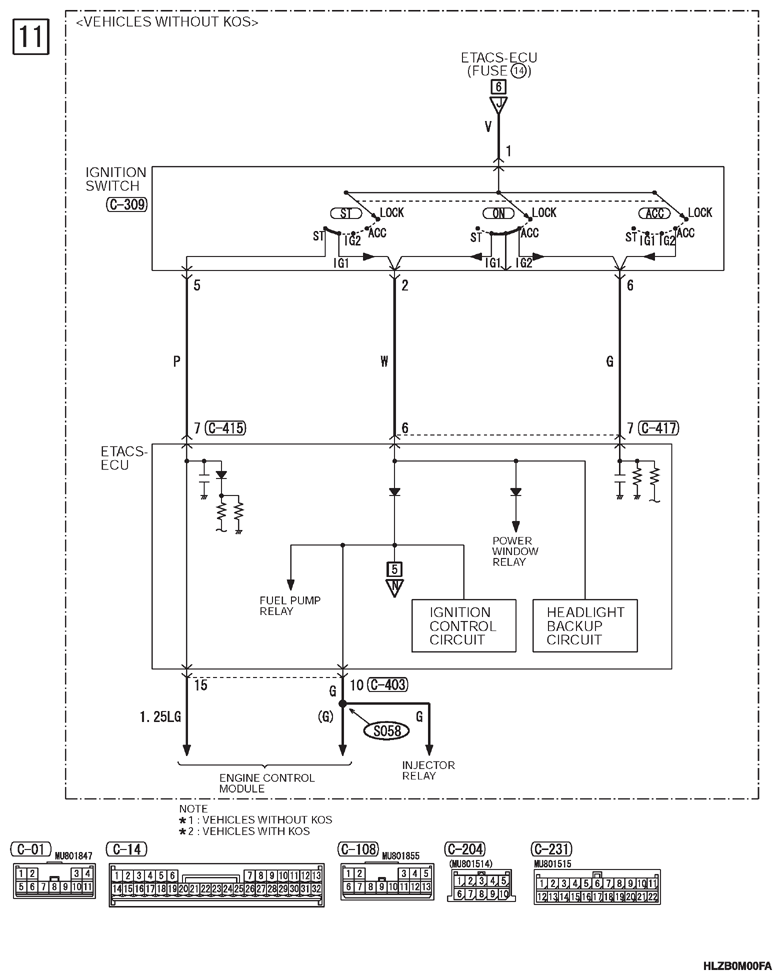

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

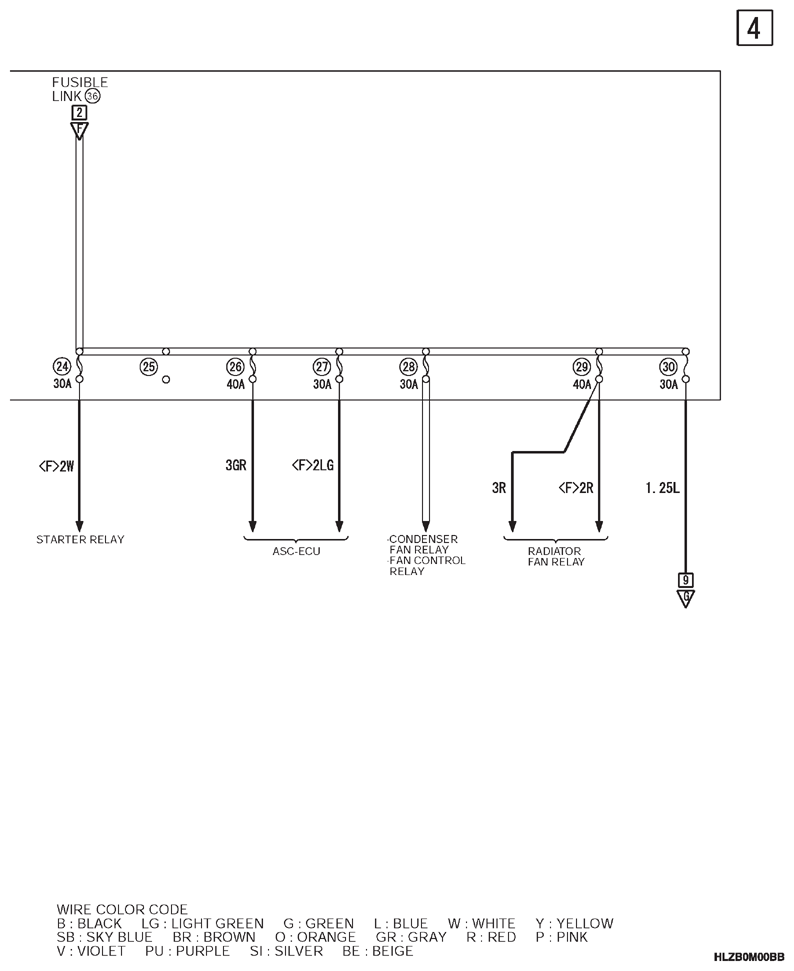

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

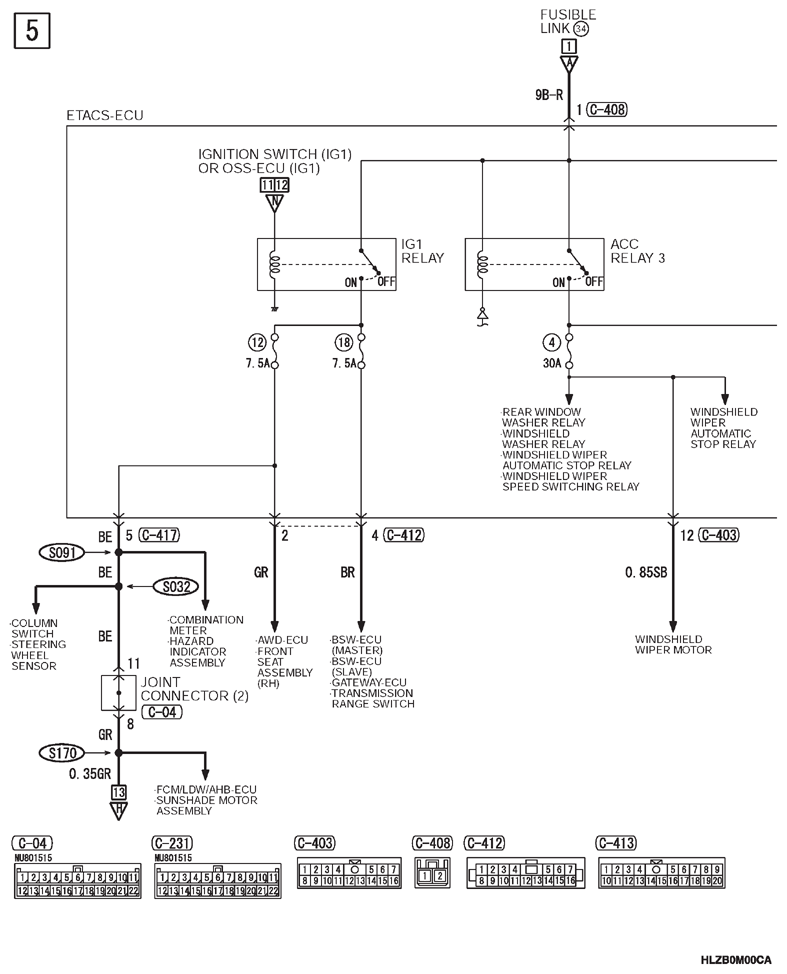

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

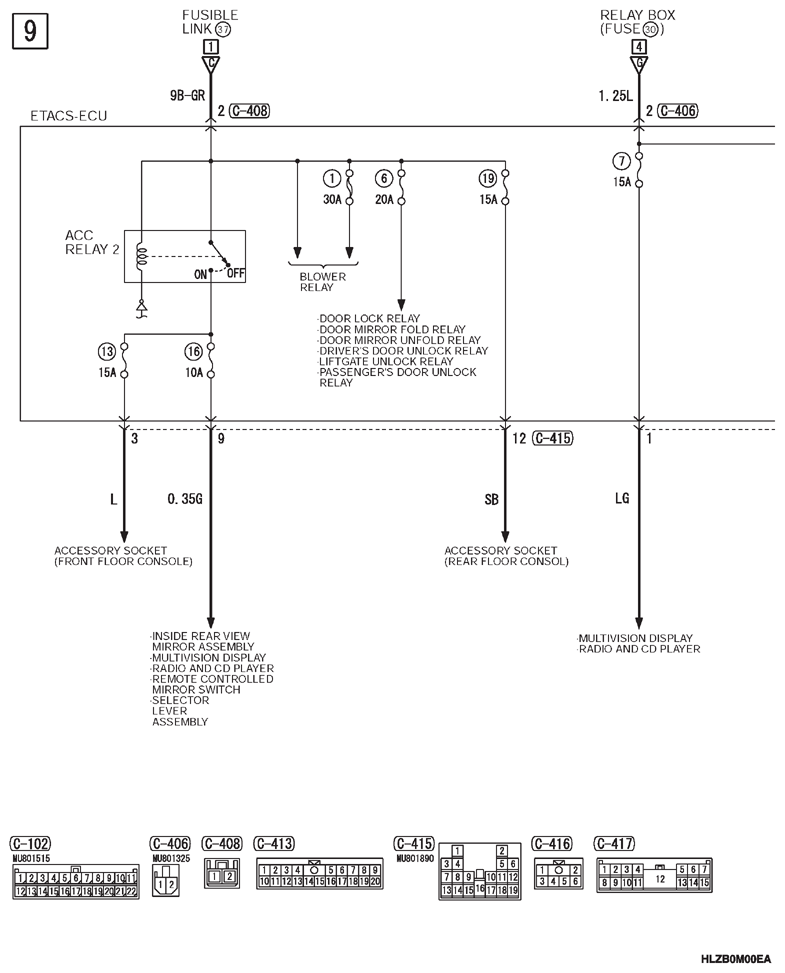

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
