Rear Window Defogger

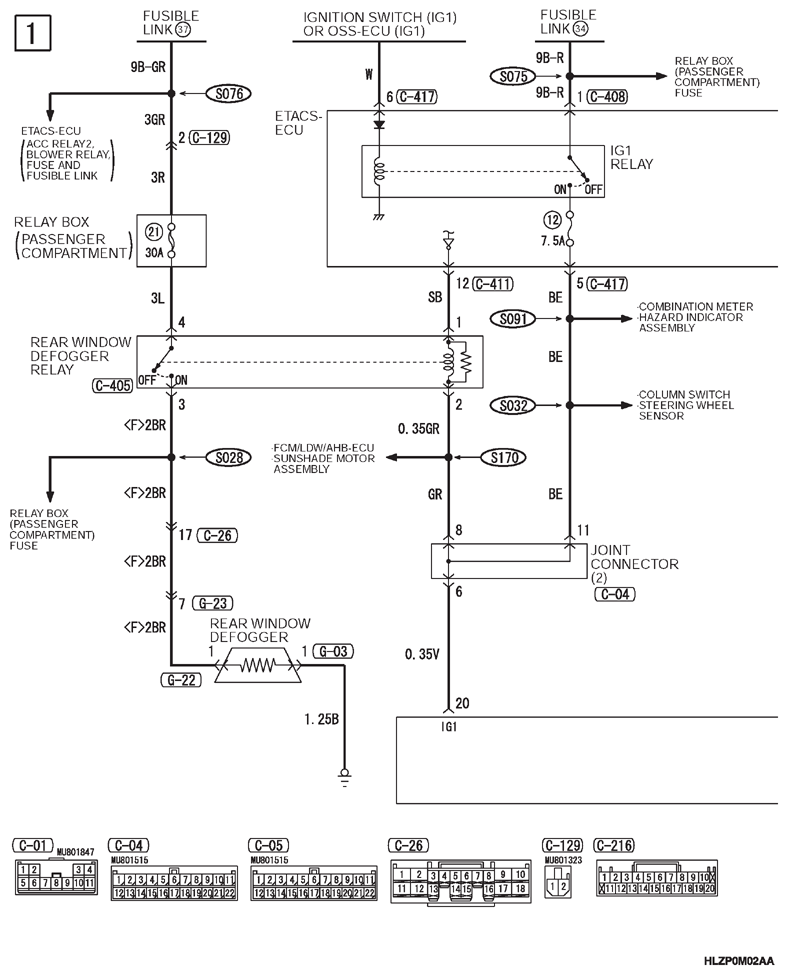

G13346261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

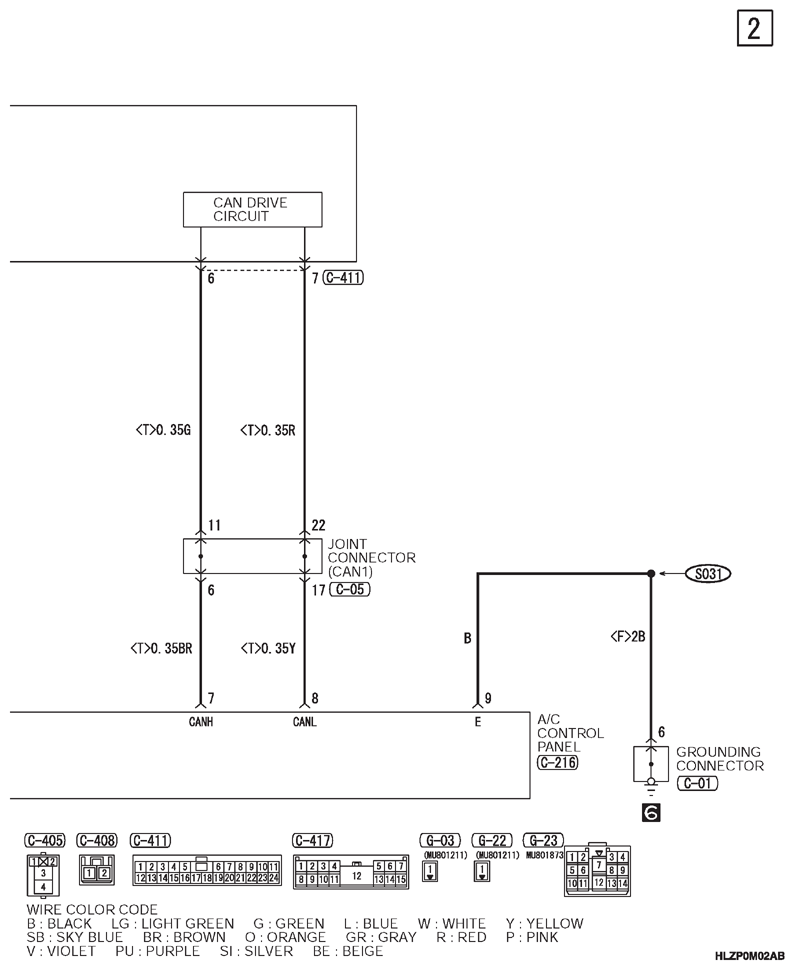

G13346262Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
