Mitsubishi
>>
2021
>>
RVR LE
>>
Repair and Diagnosis
>>
Engine Performance
>>
Wiring Diagrams
>>
Circuit Diagrams
>>
Starting System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

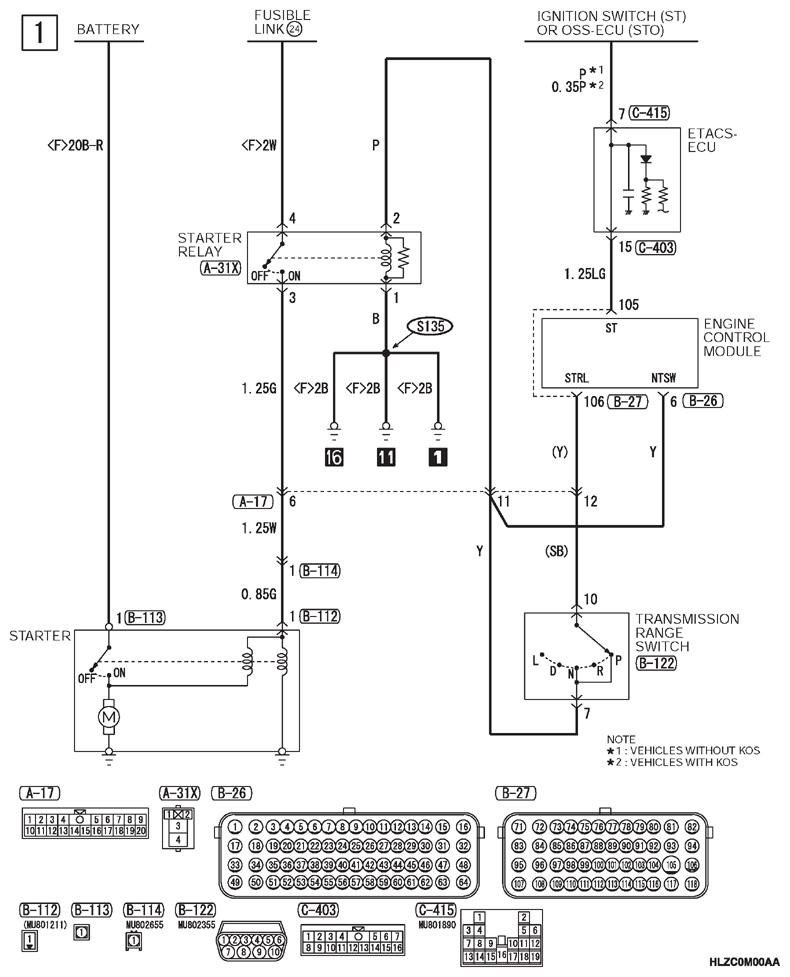

Starting System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
