«A» Headlining Pad Installation

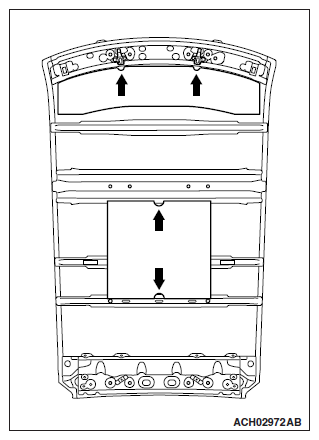

Install the headlining pad so that the notched section will fit the illustrated position.

G12148607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
