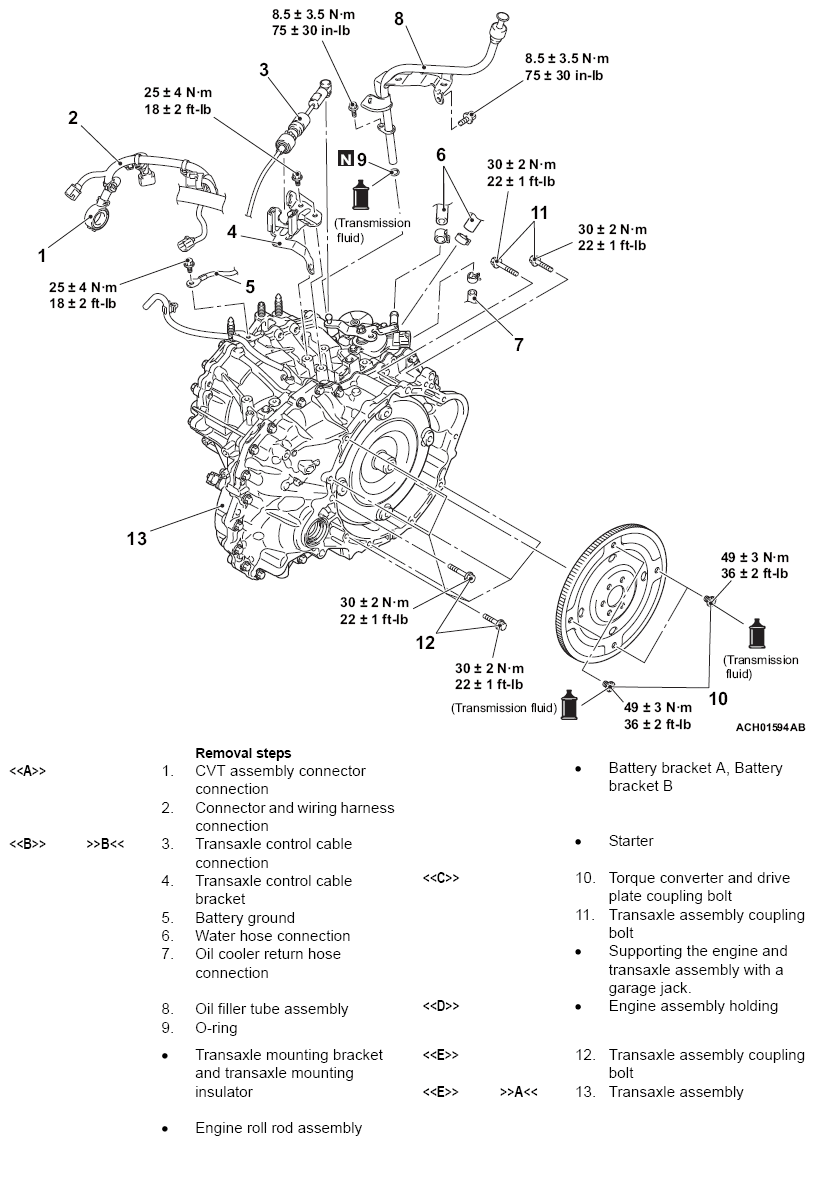

Removal And Installation: Notes
CAUTION:
- Before replacing the transaxle assembly, you should make a note of the serial No. which is stamped on the new transaxle assembly (Refer to LEARNING PROCEDURE ).
- When the transaxle assembly is replaced, carry out the following operations.
- Initialization Procedure for CVT Learned Value (Refer to HOW TO DIAGNOSE THE CAN BUS LINES ).
- Learning Procedure (Refer to LEARNING PROCEDURE ).
Pre-removal and post-installation operation
- Transfer Assembly Removal and Installation <AWD>; (Refer to TRANSFER ASSEMBLY <AWD>; ).
- Strut Tower Bar Removal and Installation (Refer to STRUT TOWER BAR .
- Air Cleaner Assembly, Air Cleaner Bracket Removal and Installation (Refer to AIR CLEANER ).
- Battery and Battery Tray Removal and Installation (Refer to BATTERY .
- Engine Room Under Cover Front A, B and Engine Room Side Cover Removal and Installation (Refer to UNDER COVER .
- Transmission Fluid Draining and Refilling (Refer to TRANSMISSION FLUID CHANGE ).
- Engine Coolant Draining and Refilling (Refer to ENGINE COOLANT CHANGE .
- Engine control module Removal and Installation (Refer to ENGINE CONTROL MODULE (ECM) .
- Air Hose B and Air Hose C Removal and Installation (Refer to CHARGE AIR COOLER .
