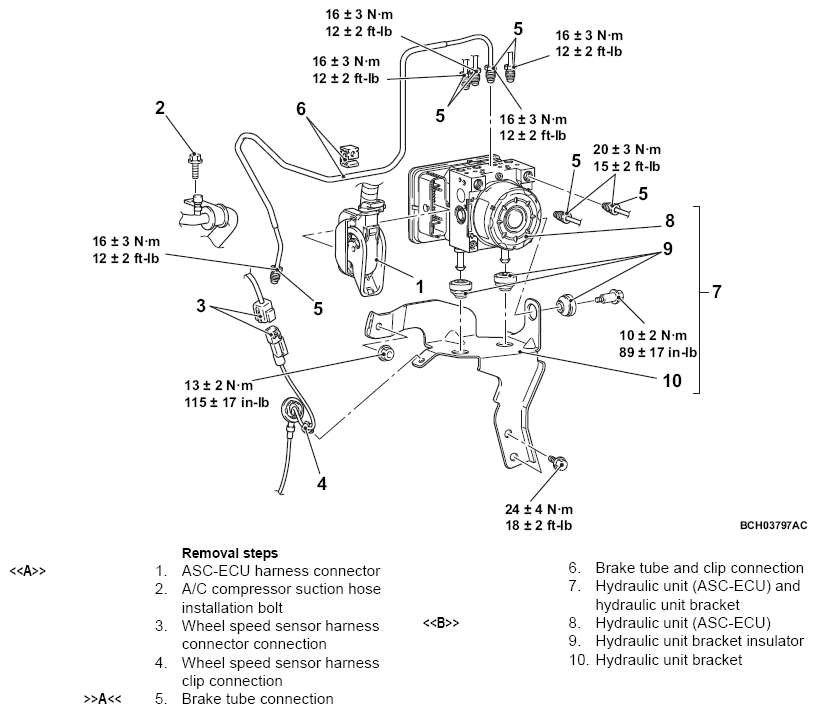

Removal And Installation: Notes
NOTE:
ASC-ECU is located in the hydraulic unit.
CAUTION:
When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the ignition switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of all sensors (steering wheel sensor, G and yaw rate sensor, and brake fluid pressure sensor) at one time. (Refer to MEASURES FOR DISCHARGED BATTERY
.)
Pre-removal operation
- Brake fluid draining.
Post-installation operation
- Brake fluid refilling and air bleeding (Refer to BLEEDING ).
- Hydraulic unit check (Refer to HYDRAULIC UNIT (HU) CHECK ).
