Removal And Installation

Pre-removal Operation	Post-installation Operation
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to UNDER COVER . Generator and Others Belt Removal (Refer to CRANKSHAFT PULLEY .	Generator and Others Belt Installation (Refer to CRANKSHAFT PULLEY . Generator and Others Belt Tension Check (Refer to GENERATOR AND OTHERS BELT TENSION CHECK . Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to UNDER COVER .

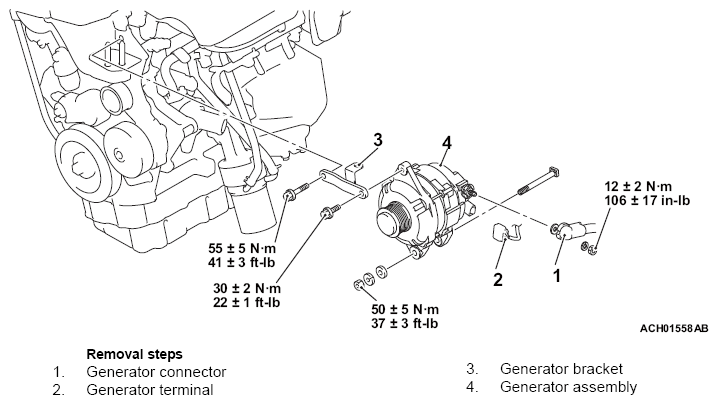

Fig 1: Removing/Installing Generator Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
