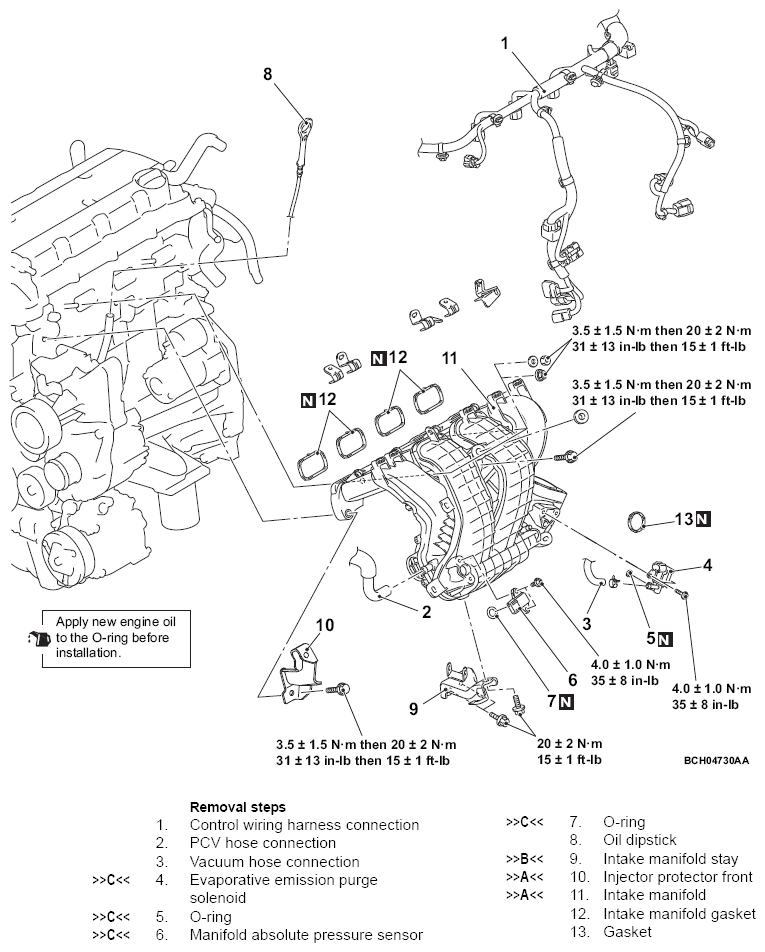

Removal And Installation: Notes
CAUTION:
- When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
- Do not reuse the manifold absolute pressure sensor that has been dropped.
Pre-removal and Post-installation Operation
- Engine Coolant Draining and Refilling (Refer to - On-vehicle Service, ENGINE COOLANT CHANGE ).
- Air Cleaner Bracket Removal and Installation (Refer to AIR CLEANER ).
- Throttle Body Assembly Removal and Installation (Refer to - THROTTLE BODY ASSEMBLY ).
- Fuel Injector Removal and Installation (Refer to - INJECTOR ).
- EGR Valve Support Removal and Installation (Refer to Emission Control, EGR VALVE ).
