Removal And Installation: Notes

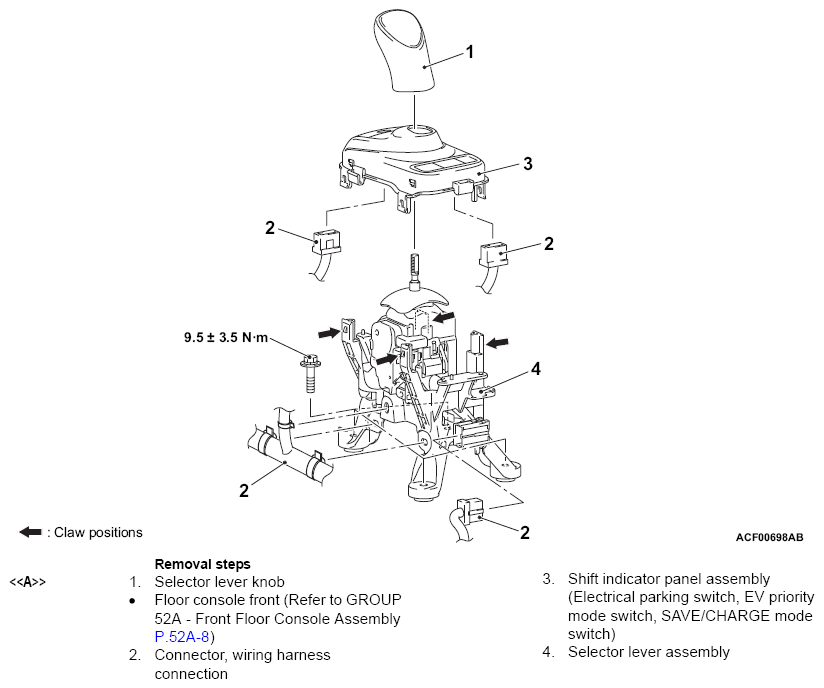

Fig 1: Removing/Installing Selector Lever Components Location With Torque Specification
G14352708Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
