Disassembly And Reassembly: Notes

WARNING: Certain components of this vehicle, such as coin-type lithium battery may contain Perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
CAUTION: While disassembling the keyless operation key, the sudden flow of static electricity can interfere with the electronic circuits in the keyless operation key and the electronic circuits might be damaged. Be sure to get rid of your body's static electricity before disassembling the keyless operation key.

Post-installation operation

Operation check of the keyless operation key

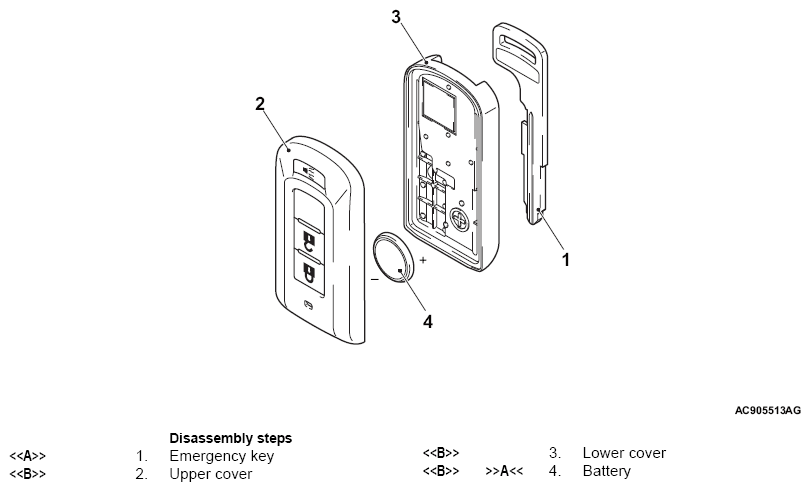

G16255962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
