Removal And Installation: Notes

CAUTION:

When removing or installing the crankshaft position sensor, be careful not to apply impact to the sensor.
Do not reuse the crankshaft position sensor that has been dropped.

Pre-removal and Post-installation Operation

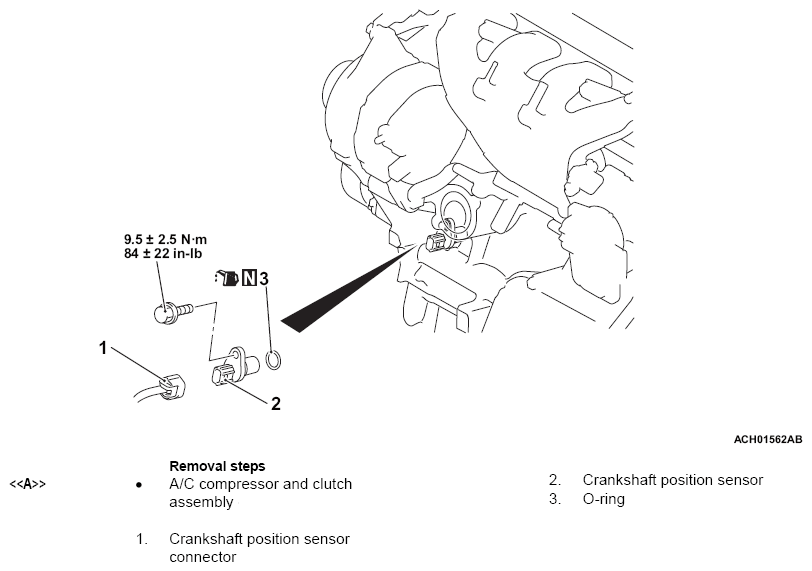

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
