Electronic Control Coupling Solenoid Check <AWD>

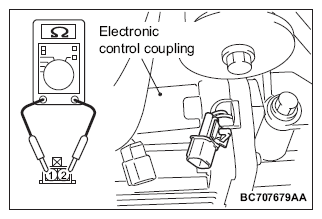

1. Disconnect the electronic control coupling solenoid connector, and measure the resistance value between the connector terminals on the electronic control coupling side. If the measured resistance value is out of the standard value range, replace the electronic control coupling (Refer to S-AWC DRIVE MODE-SELECTOR <AWD>  ).

   Standard value: 2.2 - 4.0 Ω

2. Measure the resistance value between the connector terminal No. 1 on the electronic control coupling side and the body ground. If the continuity exists, replace the electronic control coupling (Refer to S-AWC DRIVE MODE-SELECTOR <AWD>  ).
