Removal And Installation

CAUTION:

Before commencing work, use the scan tool (M.U.T.-IIISE) to read out the serial No. from the old CVT-ECU, which you will replace, and make a note of it (Refer to LEARNING PROCEDURE ).
When the CVT-ECU is replaced, carry out the following operations.
- Learning Procedure (Refer to LEARNING PROCEDURE ).

Pre-removal and post-installation operation

Instrument panel cover lower removal and installation (Refer to INSTRUMENT LOWER PANEL ).

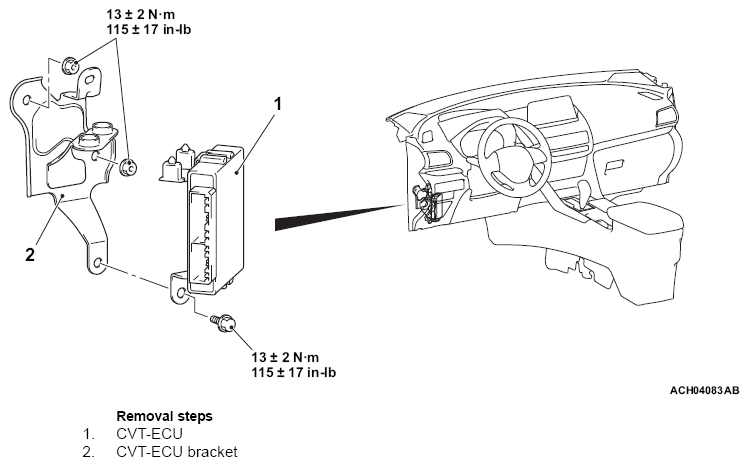

Fig 1: Removing/Installing Transaxle Control Module Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
