Removal And Installation: Notes
Pre-removal operation
Engine Room Under Cover Front B Removal (Refer to
UNDER COVER
).
Transmission Fluid Draining (Refer to
TRANSMISSION FLUID CHANGE
).
Transfer Oil Draining (Refer to
TRANSFER OIL CHECK <AWD>
).
Propeller Shaft Removal (Refer to
PROPELLER SHAFT
).
Drive Shaft <LH, RH> Removal (Refer to
DRIVESHAFT ASSEMBLY
).
Post-installation operation
Drive Shaft <LH, RH> Installation (Refer to
DRIVESHAFT ASSEMBLY
).
Propeller Shaft Installation (Refer to
PROPELLER SHAFT
).
Transfer Oil Refilling (Refer to
TRANSFER OIL CHECK <AWD>
).
Transfer Oil Check (Refer to
TRANSFER OIL CHECK <AWD>
).
Transmission Fluid Refilling (Refer to
TRANSMISSION FLUID CHANGE
).
Transmission Fluid Check (Refer to
ESSENTIAL SERVICE
).
Engine Room Under Cover Front B Installation (Refer to
UNDER COVER
).

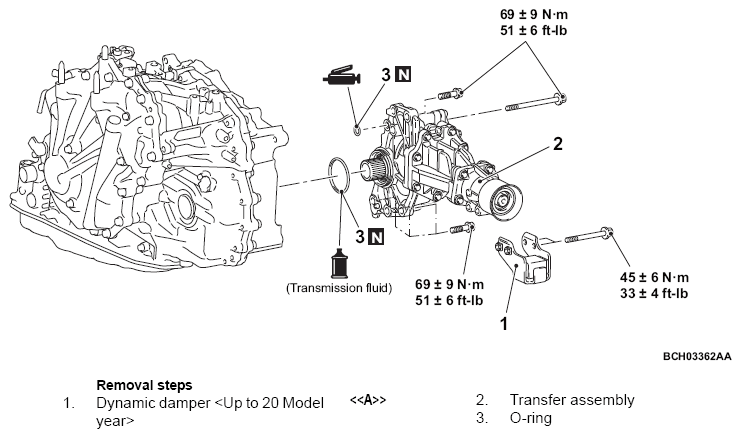

Fig 1: Removing/Installing Transfer Assembly Components Location With Torque Specification (AWD)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
