Removal And Installation: Notes

Pre-removal operation	Post-installation operation
Under Cover Front Removal (Refer to UNDER COVER ). Transmission Oil Draining (Refer to ON-VEHICLE SERVICE ). Starter Motor Assembly Removal (Refer to Starting System - STARTER MOTOR ASSEMBLY ). Drive Shaft Removal (Refer to DRIVE SHAFT ASSEMBLY .) Air Cleaner Assembly Removal (Refer to AIR CLEANER ). Battery and Battery Tray Removal (Refer to Battery - REMOVAL AND INSTALLATION ).	Clutch Pedal Check And Adjustment (Refer to GENERAL DESCRIPTION ). Battery and Battery Tray Installation (Refer to Battery REMOVAL AND INSTALLATION ). Air Cleaner Assembly Installation (Refer to AIR CLEANER ). Drive Shaft Installation (Refer to DRIVE SHAFT ASSEMBLY .) Starter Motor Assembly Installation (Refer to Starting System - STARTER MOTOR ASSEMBLY ). Transmission Oil Refilling (Refer to ON-VEHICLE SERVICE ). Under Cover Front Installation (Refer to UNDER COVER ).

Pre-removal operation

Post-installation operation

Under Cover Front Removal (Refer to UNDER COVER ).
Transmission Oil Draining (Refer to ON-VEHICLE SERVICE ).
Starter Motor Assembly Removal (Refer to Starting System - STARTER MOTOR ASSEMBLY ).
Drive Shaft Removal (Refer to DRIVE SHAFT ASSEMBLY .)
Air Cleaner Assembly Removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal (Refer to Battery - REMOVAL AND INSTALLATION ).

Clutch Pedal Check And Adjustment (Refer to GENERAL DESCRIPTION ).
Battery and Battery Tray Installation (Refer to Battery REMOVAL AND INSTALLATION ).
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Drive Shaft Installation (Refer to DRIVE SHAFT ASSEMBLY .)
Starter Motor Assembly Installation (Refer to Starting System - STARTER MOTOR ASSEMBLY ).
Transmission Oil Refilling (Refer to ON-VEHICLE SERVICE ).
Under Cover Front Installation (Refer to UNDER COVER ).

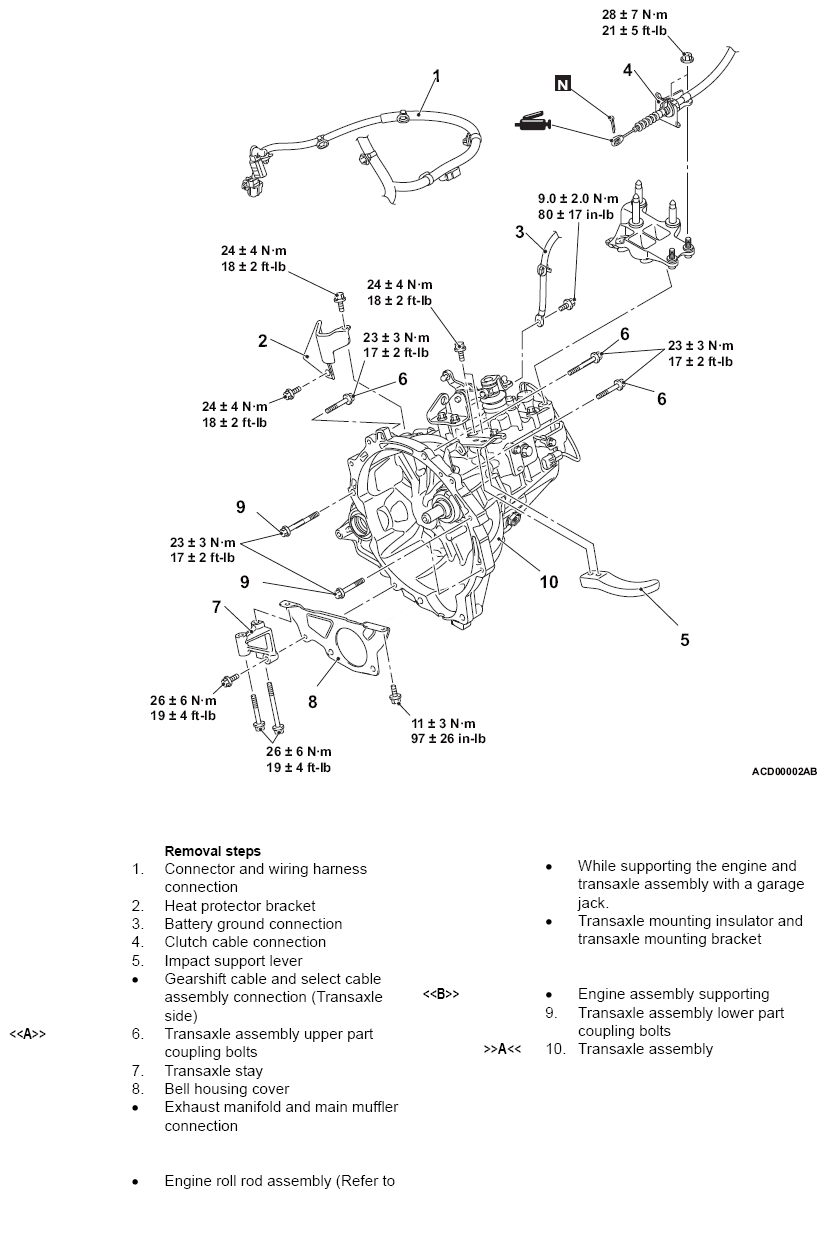

Fig 1: Removing/Installing Transaxle Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991928: Engine Hanger
- Slide Bracket (HI)
- MB991932: Foot (standard)
- MB991929: Joint (50)
MB991895: Engine Hanger
MB992906: Engine Hanger Attachment
