Exploded View: AWD

SEC. 172

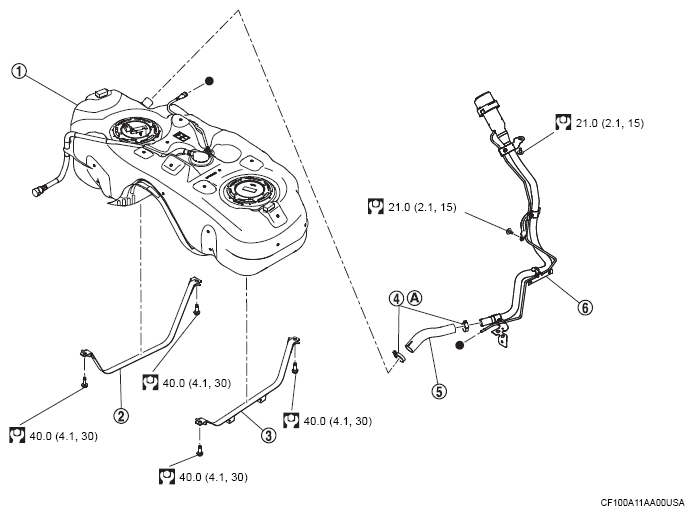

Fig 1: Exploded View Of Fuel Tank With Torque Specification (AWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Fuel tank
(2)	Fuel tank band (RH)
(3)	Fuel tank band (LH)
(4)	Clamp
(5)	Fuel filler hose
(6)	Fuel filler tube
(A)	Comply with the assembly procedure when tightening. Refer to Removal and Installation . REMOVAL AND INSTALLATION


	: N.m (kg-m, ft-lb)
: Indicates that the parts is connected at points with same symbols in actual vehicle .
