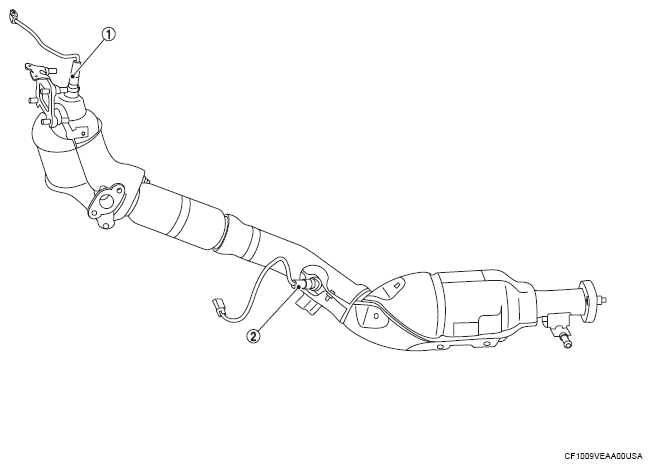

Exhaust Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1)
Air fuel ratio (A/F) sensor 1
(2)
Heated oxygen sensor 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
