Component Operation

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

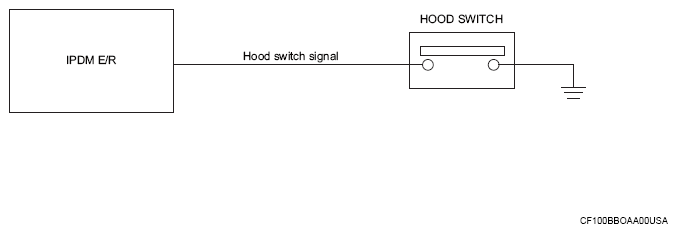

Hood switch is transmits hood switch signal to IPDM E/R.

G16264769Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
