Component Parts Location

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

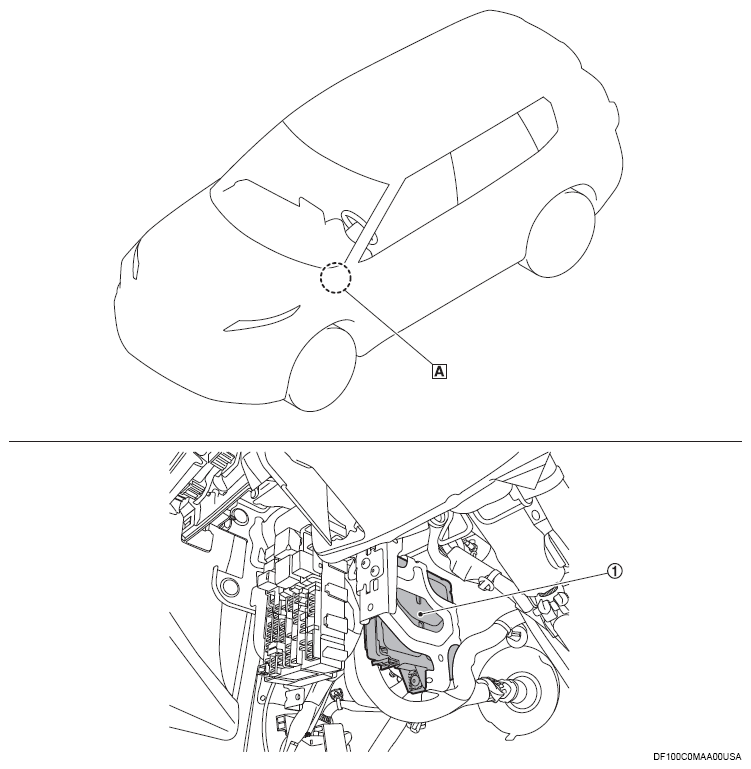

G16264797Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) BCM
(A) Behind instrument lower panel LH
