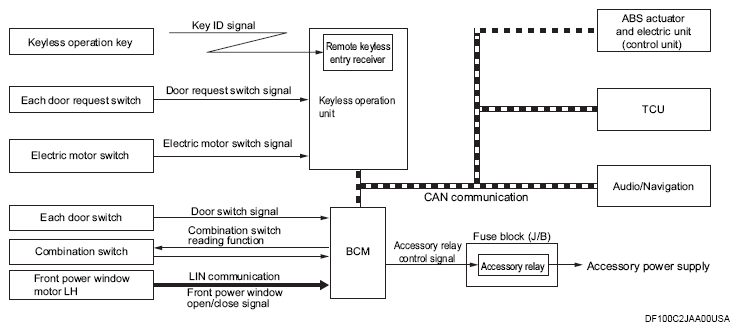

| Keyless operation key |
Operates based on the results of electronic ID verification using two-way communication between the Keyless operation key and the vehicle (Keyless operation key unit). |
| Door request switch |
Detects door lock/unlock operation. |
| Electric motor switch |
Refer to ELECTRIC MOTOR SWITCH . |
| Door switch |
Detects door open/close condition. |
| Combination switch (Lighting & turn signal switch) |
Inputs the each switch condition signal to BCM. |
| Front power window motor LH |
Transmits front power window open/close signal to BCM via LIN communication. |
| Keyless operation key unit |
Transmits electric motor switch status signal and door lock/unlock request signal to BCM via CAN communication. |
| ABS actuator and electric unit (control unit) |
Transmits vehicle speed signal (ABS) to BCM via CAN communication. |
| TCU |
Transmits auto ACC request signal to BCM via CAN communication. |
| BCM |
BCM operates the auto ACC function based on each signal state. |
| Accessory relay |
Controlled by BCM and turns ON/OFF the battery power supply to each parts. |
| Audio/Navigation |
- Transmits auto ACC request signal to BCM via CAN communication.
- Auto ACC status signal receives from BCM via CAN communication.
|
