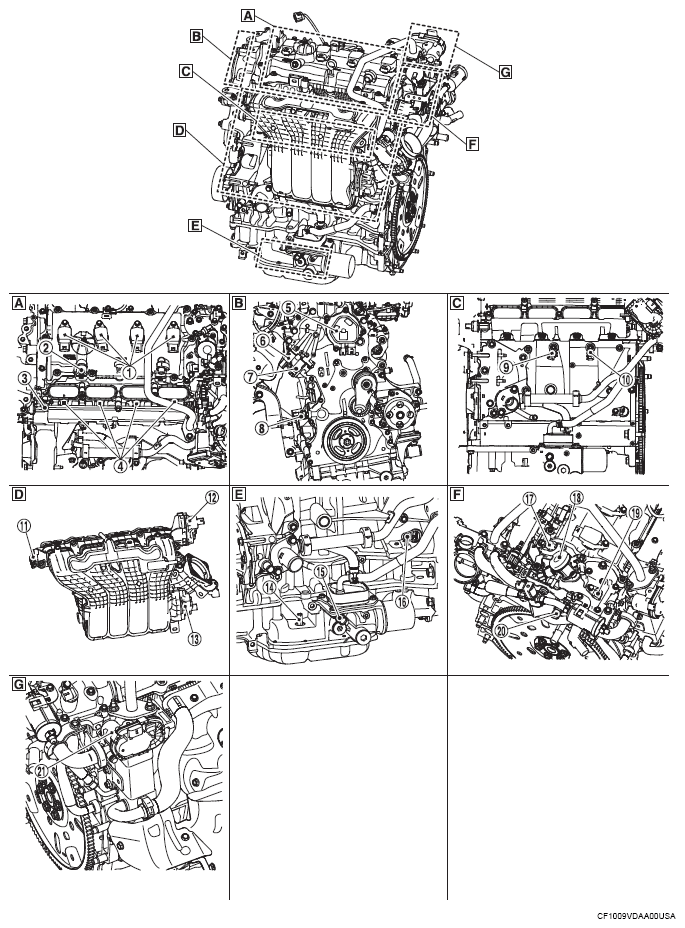

| (A) |
Top of engine |
| (B) |
Top front of engine |
| (C) |
Left side of engine |
| (D) |
Air intake |
| (E) |
Lower front of engine |
| (F) |
Rear of engine |
| (G) |
Rear of engine |
| (1) |
Ignition coil (with power transistor) |
| (2) |
PCV valve |
| (3) |
Fuel rail pressure sensor |
| (4) |
Fuel injector |
| (5) |
Electric intake valve timing control actuator |
| (6) |
Exhaust valve timing intermediate lock control solenoid valve |
| (7) |
Exhaust valve timing control solenoid valve |
| (8) |
Engine oil pressure sensor |
| (9) |
Knock sensor 1 |
| (10) |
Knock sensor 2 |
| (11) |
Intake manifold runner control valve position sensor |
| (12) |
Intake manifold runner control valve actuator |
| (13) |
Intake manifold tuning valve |
| (14) |
Engine oil pressure control solenoid valve |
| (15) |
Engine oil temperature sensor |
| (16) |
Crankshaft position sensor |
| (17) |
Intake camshaft position sensor |
| (18) |
High pressure fuel pump |
| (19) |
Exhaust camshaft position sensor |
| (20) |
Engine coolant temperature sensor |
| (21) |
EGR volume control valve |
