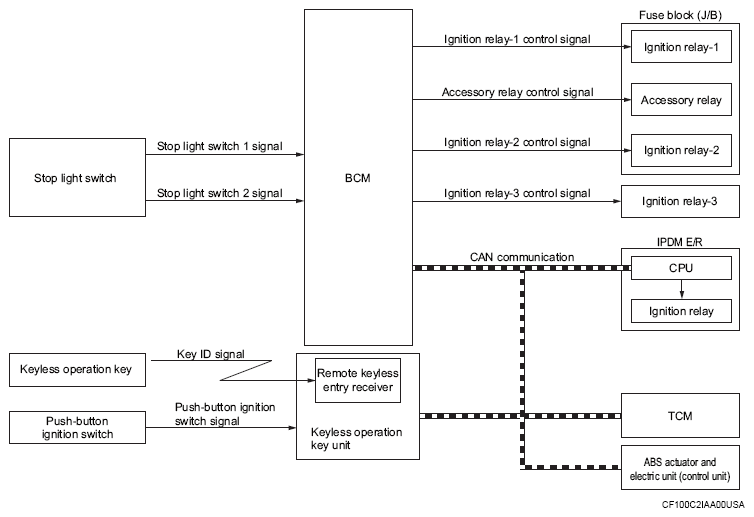

System Diagram
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| Component | Function |
|---|---|
| Keyless operation key | Operates based on the results of electronic ID verification using two-way communication between the Keyless operation key and the vehicle (Keyless operation key unit). |
| Push-button ignition switch | Refer to PUSH-BUTTON IGNITION SWITCH . |
| Stop light switch | Stop light switch detects that brake pedal is depressed, and then transmits ON/OFF signal to BCM. |
| TCM | Transmits shift position signal and cranking enable signal to BCM via CAN communication. |
| Keyless operation key unit | Transmits push-button ignition switch status signal to BCM via CAN communication. |
| ABS actuator and electric unit (control unit) | Transmits vehicle speed signal to BCM via CAN communication. |
| BCM |
|
| Ignition relay-1 | Controlled by BCM and turns ON/OFF the battery power supply to each parts. |
| Accessory relay | |
| Ignition relay-2 | |
| Ignition relay-3 | |
| IPDM E/R | IPDM E/R controls the integrated ignition relay, and supplies voltage to the load according to the request from BCM via CAN communication. |
