Removal And Installation: Notes

CAUTION: Before removing and installing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE .

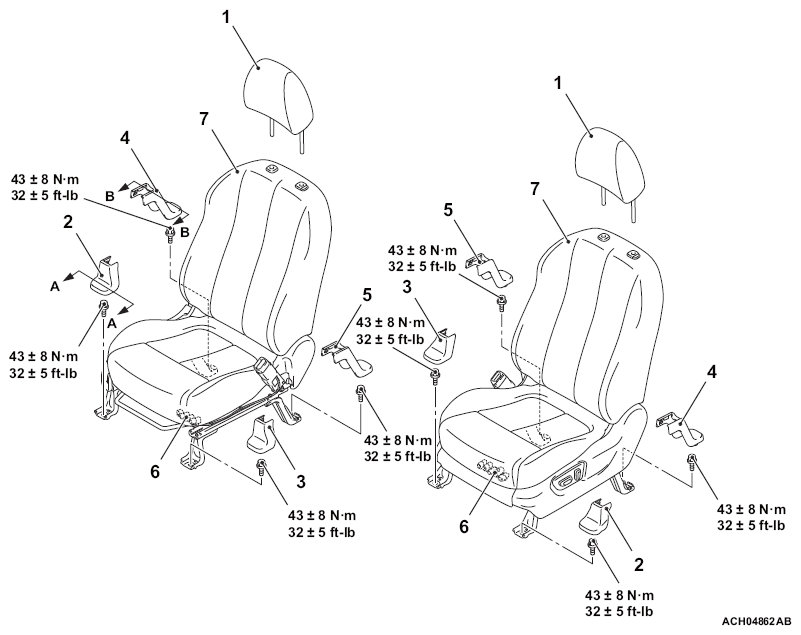

Fig 1: Removing/Installing Front Seat Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

		Removal steps
	1.	Head-restraint
	2.	Front seat anchor side shield cover front
	3.	Front seat anchor backbone cover front
	4.	Front seat anchor side shield cover rear
	5.	Front seat anchor backbone cover rear
<<A>>	6.	Wiring harness connector connection [side-airbag module, front seat belt switch, seat slide sensor, occupant classification-ECU, heated seat (front), power seat]
>>A<<	7.	Front seat assembly
