Removal And Installation: Notes
CAUTION:
Whenever you removal the windshield, calibrate its sensor (Refer to
FCM/LDW/AHB-ECU - On-vehicle Service, FCM/LDW/AHB-ECU SENSOR CALIBRATION
) <Vehicles with FCM>.
Pre-removal and Post-installation Operation
- Front Deck Garnish Removal and Installation (Refer to WINDSHIELD WIPER ).
- Roof Drip Molding Removal and Installation (Refer to Molding REMOVAL AND INSTALLATION ).
- Front Pillar Trim Removal and Installation (Refer to INTERIOR TRIM ).
- Inside Rear View Mirror Assembly Removal and Installation (Refer to INSIDE REAR VIEW MIRROR ).
- Lighting Control Sensor Removal and Installation<Vehicles with Lighting Control Sensor> (Refer to LIGHTING CONTROL SENSOR ).
- FCM/LDW/AHB-ECU Removal and Installation<Vehicles with FCM> (Refer to FCM/LDW/AHB-ECU ).

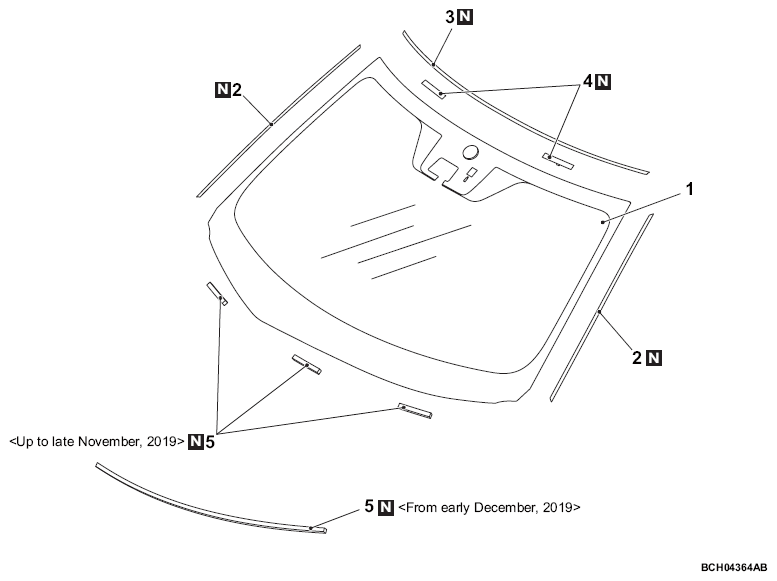

| Removal steps | ||
| <<A>> | >>B<< | 1. Windshield glass |
| 2. Windshield side molding | ||
| 3. Windshield upper molding | ||
| >>A<< | 4. Glass stopper | |
| >>A<< | 5. Windshield spacer |
