Removal And Installation: Notes

WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
After the steering column switch assembly (integrated with steering wheel sensor) is installed, always calibrate the steering wheel sensor. (Refer to SENSOR CALIBRATION ).

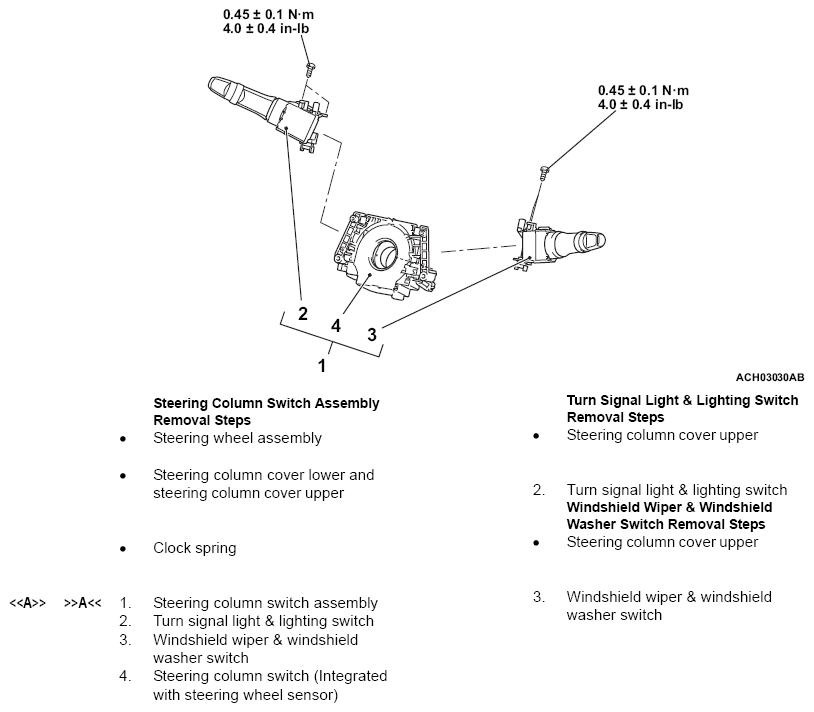

Fig 1: Removing/Installing Column Switch Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
