How To Perform Actuator Test
Required Special Tools:
- MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
- MB992745: V.C.I.-Lite main harness A
- MB992747: V.C.I.-Lite USB cable short
- MB992748: V.C.I.-Lite USB cable long
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
CAUTION:
To prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).

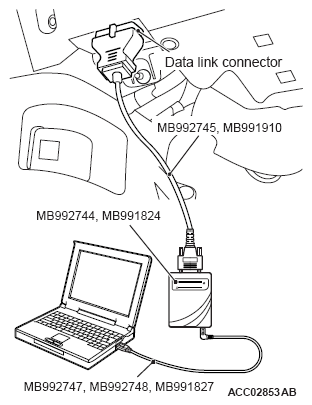

- Connect scan tool (M.U.T.-III) to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "System select."
- Choose "from 2006 MY" under "MODEL YEAR".
- Check that "Vehicle Information" contents are correct.
- Choose "ABS/ASC/ASTC/WSS".
- Choose "Actuator Test" from "A.S.C." screen.
- Choose an appropriate item and select the "OK" button.
