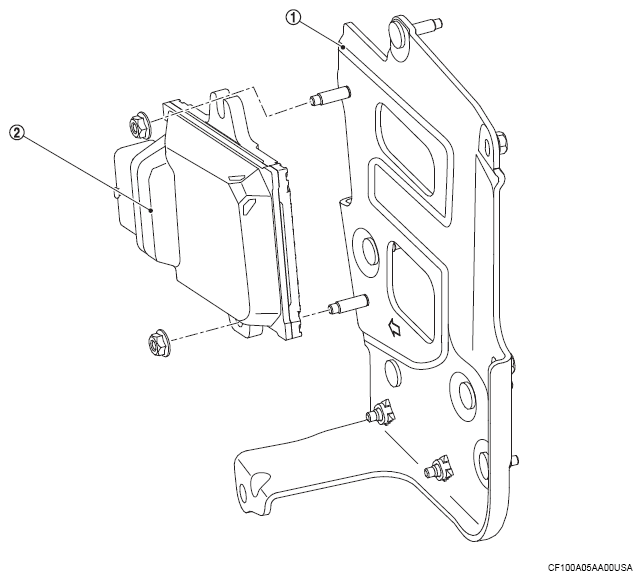

ELECTRIC INTAKE VALVE TIMING CONTROL MODULE: Exploded View

G16052273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Bracket
2. Electric intake valve timing control module
