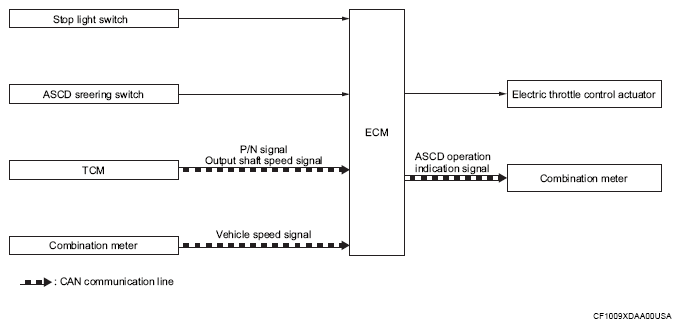

System Diagram

G16071097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Component parts Function
Stop light switch Stop Light Switch STOP LIGHT SWITCH .
ASCD steering switch STEERING SWITCH .
TCM
  • It transmits the output shaft speed signal to ECM via CAN communication.
  • It transmits the park/neutral position signal to ECM via CAN communication.
Combination meter
  • It transmits the vehicle speed signal to ECM via CAN communication.
  • It receives the ASCD status signal from ECM via CAN communication.
ECM ECM .
Electric throttle control actuator ELECTRIC THROTTLE CONTROL ACTUATOR .
