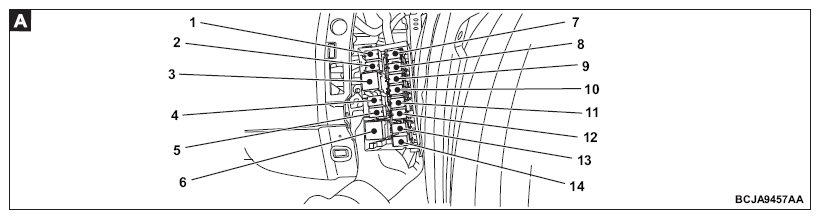

| A |
1 |
ST cut relay |
| 2 |
VINJ (INJ) relay |
| 3 |
PWM (RAD FAN) relay |
| 4 |
WIPER DEICER relay <Vehicles with wiper deicer> |
| 5 |
H/L WASHER relay <AWD> |
| 6 |
OFF LOAD 2 ION 3 (SEAT HEATER) relay |
| 7 |
FR WASHER MTR relay |
| 8 |
RR WASHER MTR relay |
| 9 |
SR MTR (A/T) relay |
| 10 |
SR MTR (A/T) relay |
| 11 |
REV LAMP relay |
| 12 |
PTC 1 relay <Except vehicles for Israel> |
| 13 |
PTC 2 relay <Except vehicles for Israel> |
| 14 |
PTC 3 relay <Except vehicles for Israel> |
| B |
15 |
Dome light relay |
| 16 |
IGN relay |
| 17 |
IGN 2 relay |
| 18 |
IGN 2 relay |
| 19 |
R. DEF relay |
| 20 |
AUTO ACC relay |
| 21 |
P/W LIFT relay |

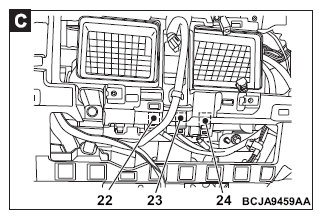

| C |
22 |
HEATER STRG relay |
| 23 |
HORN relay |
| 24 |
ANTI THEFT relay |
