BCM (Body Control Module)

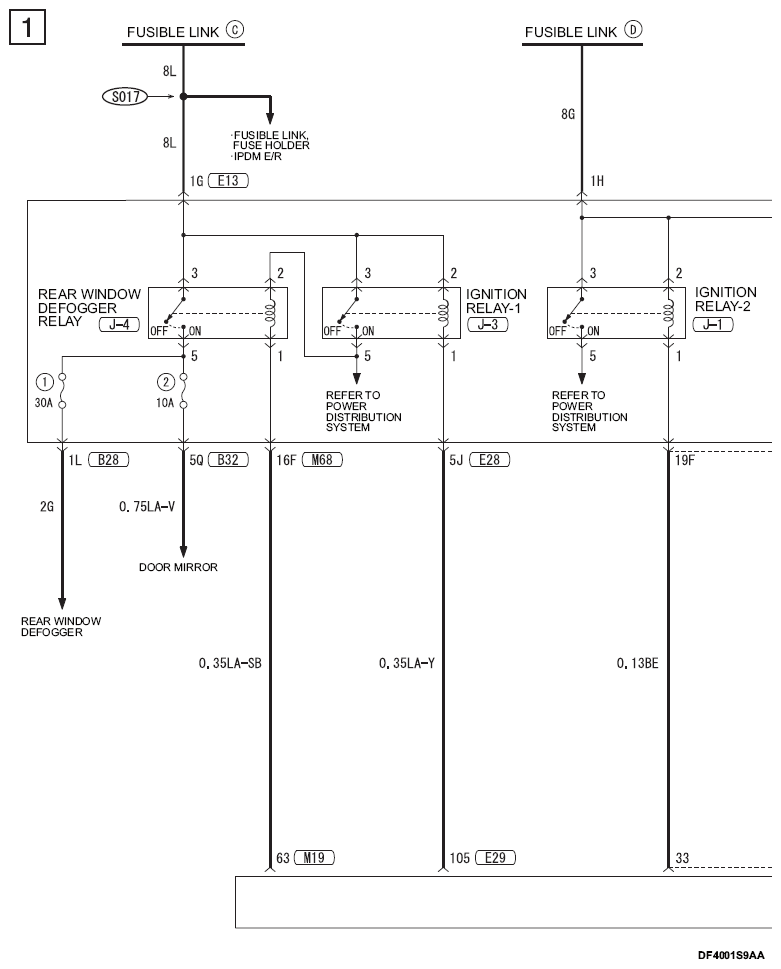

Fig 1: BCM (Body Control Module) Circuit Diagram (1 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

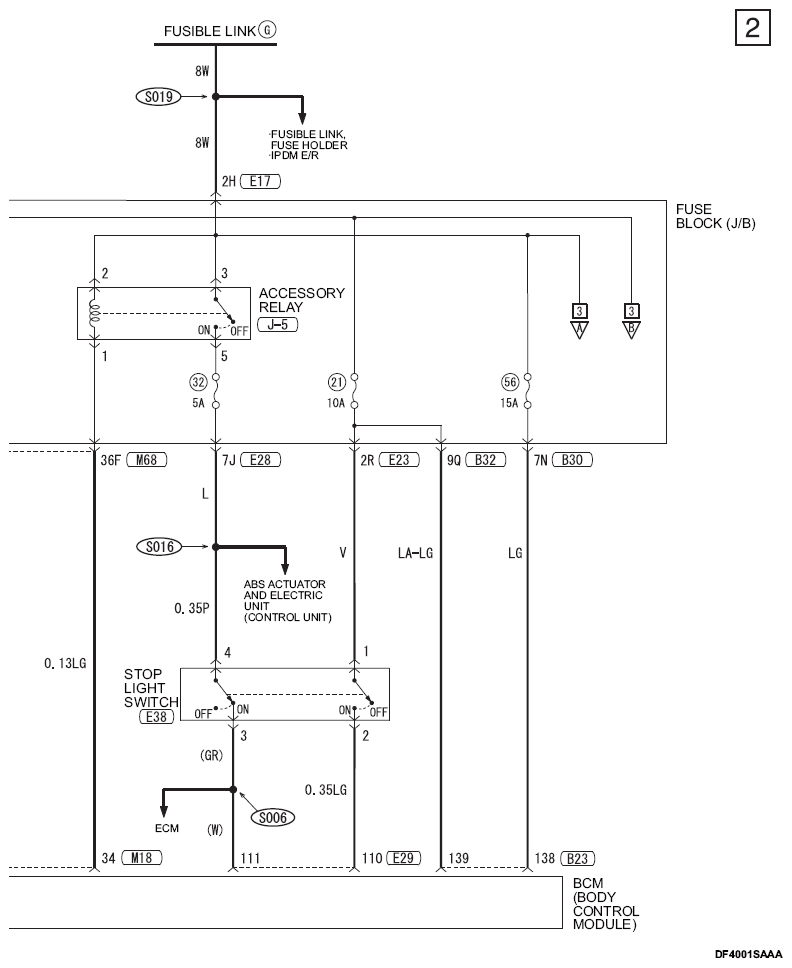

Fig 2: BCM (Body Control Module) Circuit Diagram (2 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

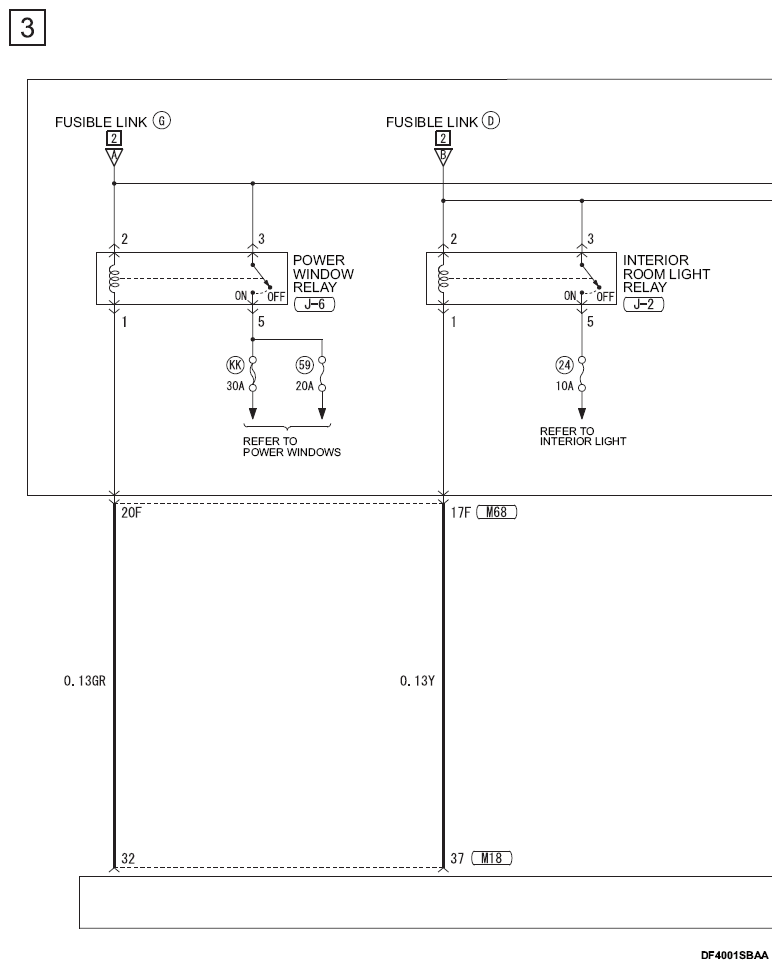

Fig 3: BCM (Body Control Module) Circuit Diagram (3 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

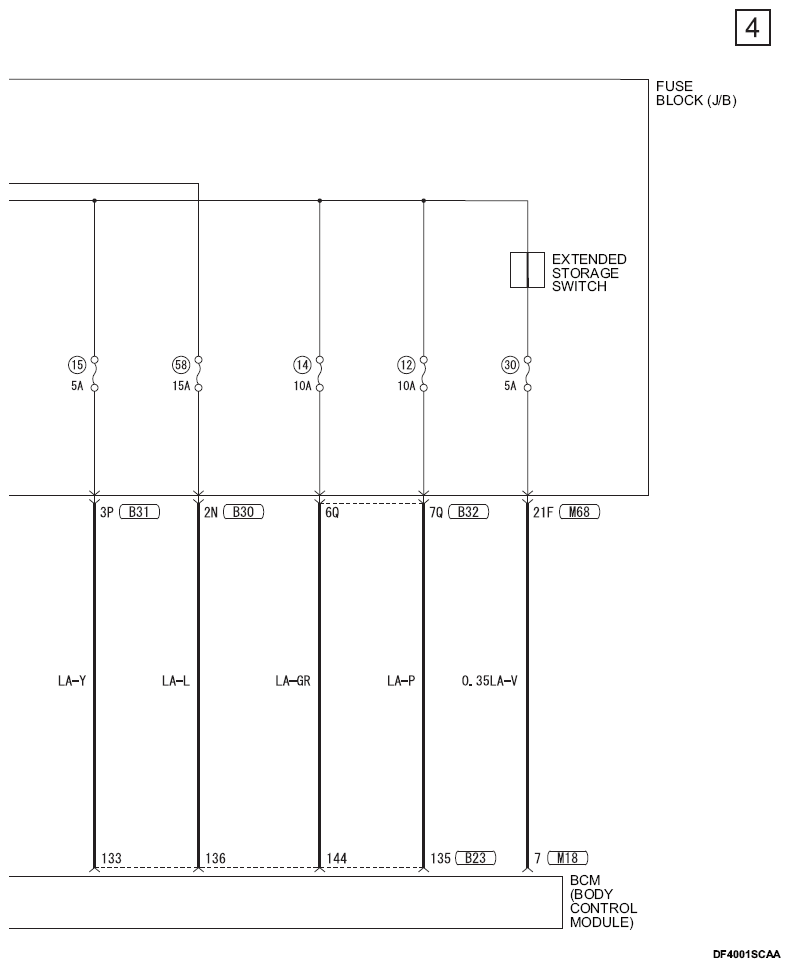

Fig 4: BCM (Body Control Module) Circuit Diagram (4 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

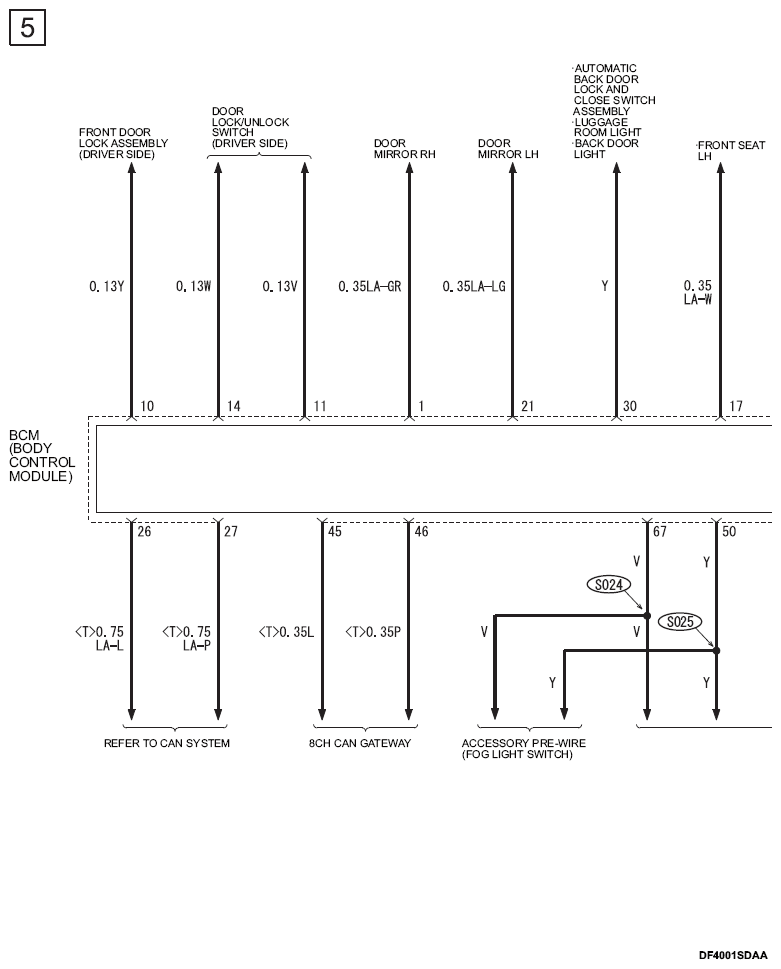

Fig 5: BCM (Body Control Module) Circuit Diagram (5 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

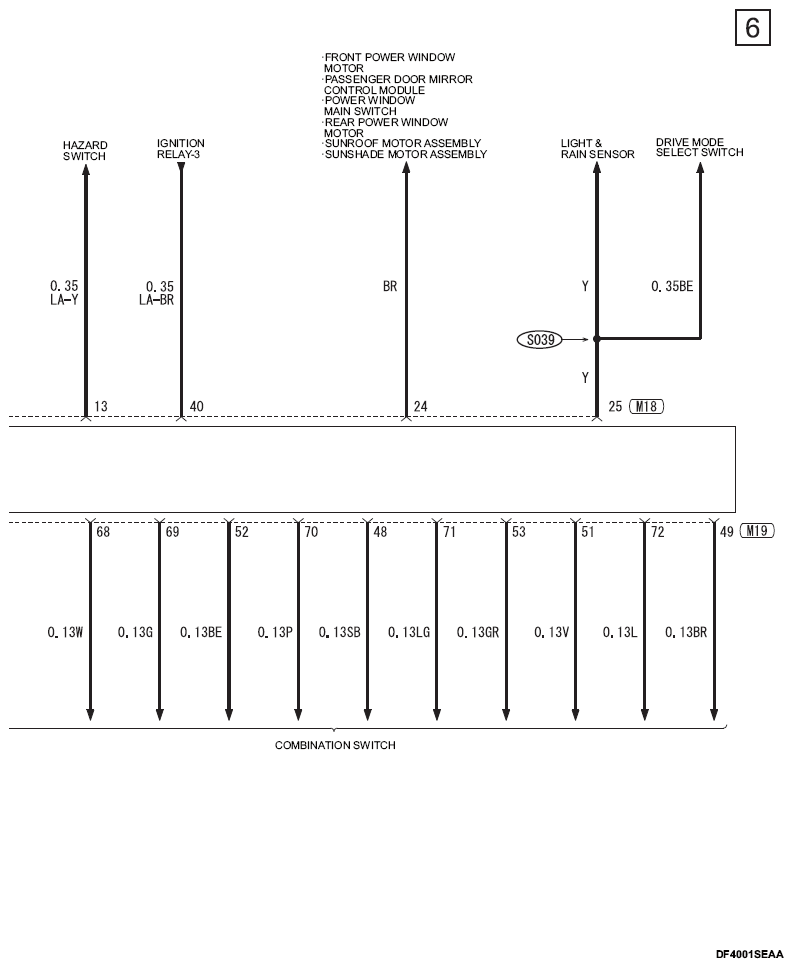

Fig 6: BCM (Body Control Module) Circuit Diagram (6 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

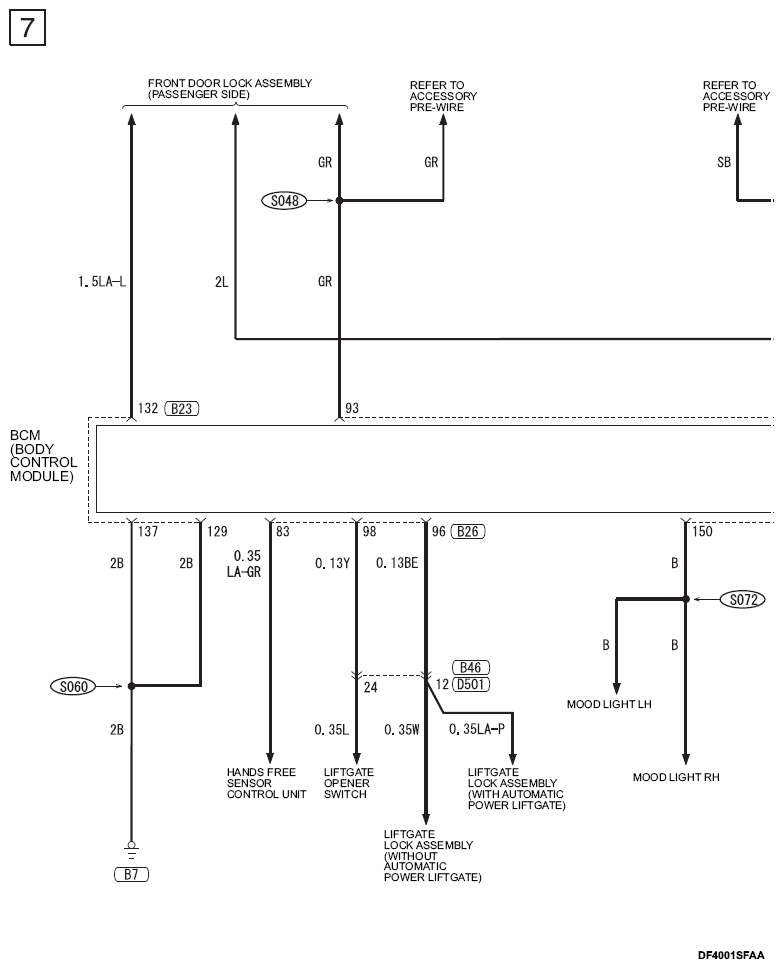

Fig 7: BCM (Body Control Module) Circuit Diagram (7 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

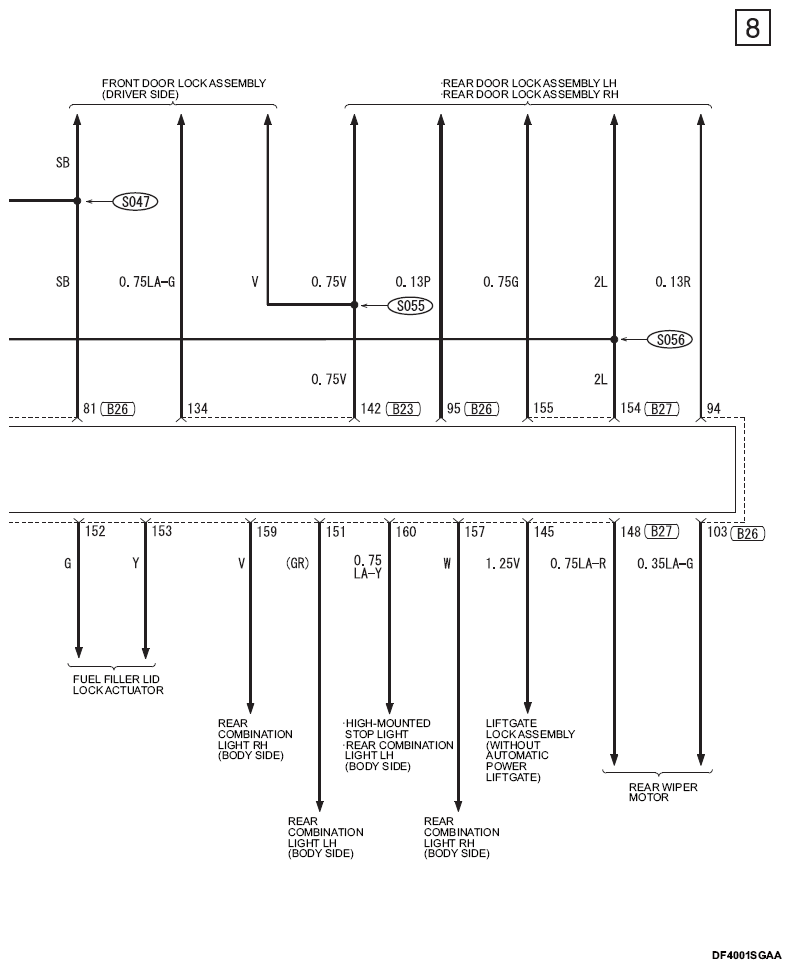

Fig 8: BCM (Body Control Module) Circuit Diagram (8 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

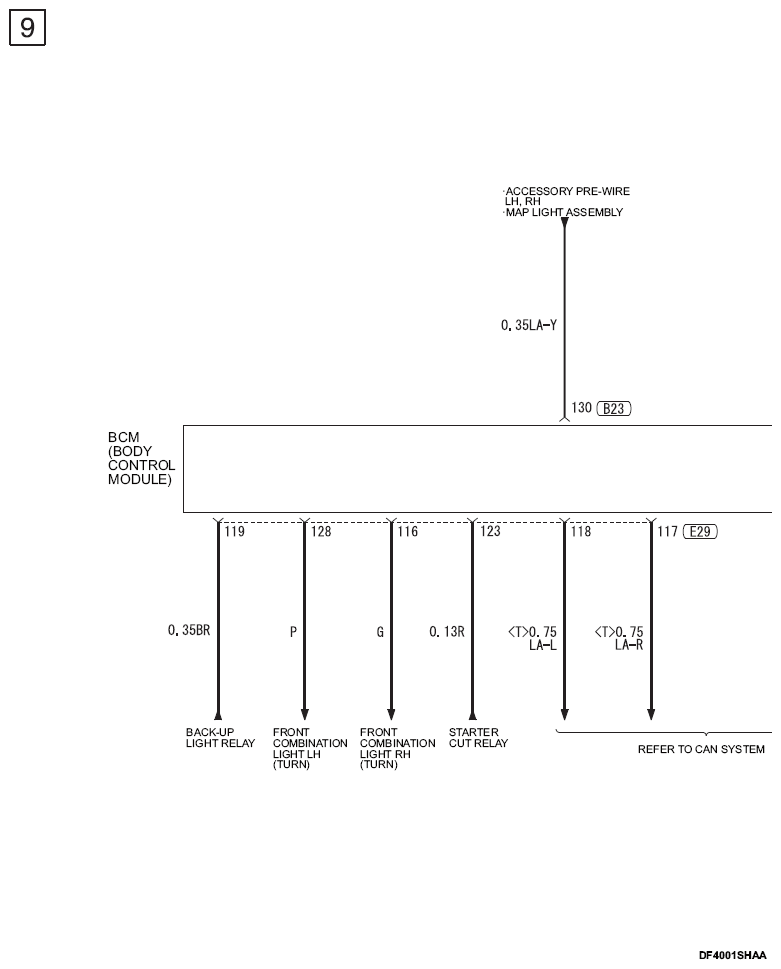

Fig 9: BCM (Body Control Module) Circuit Diagram (9 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

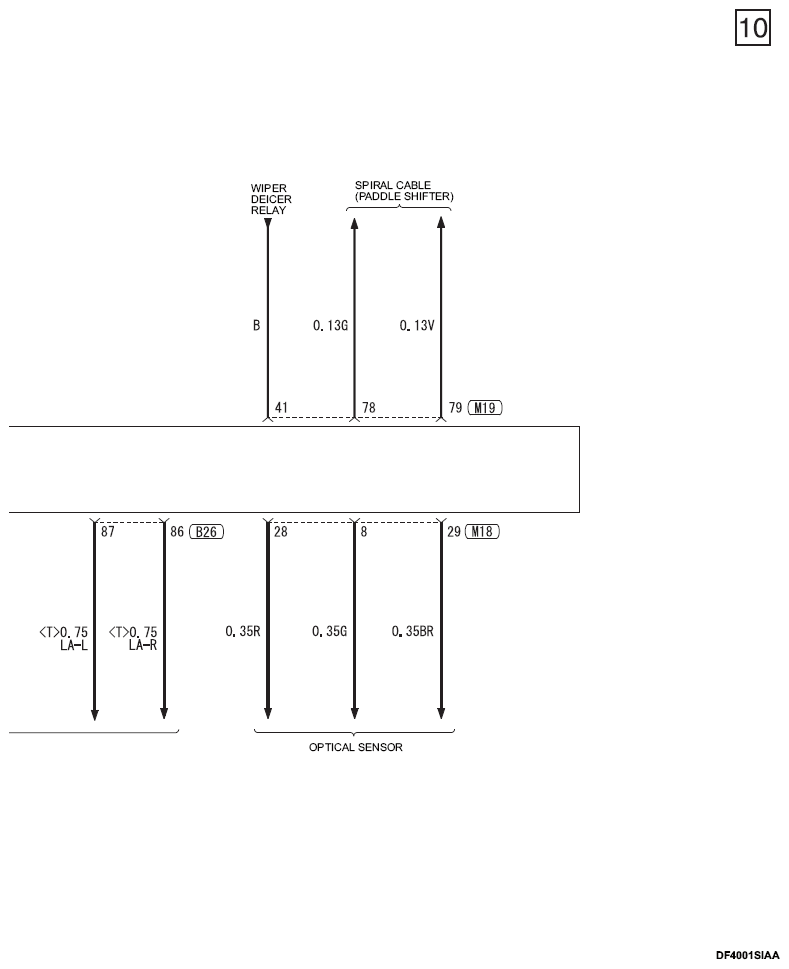

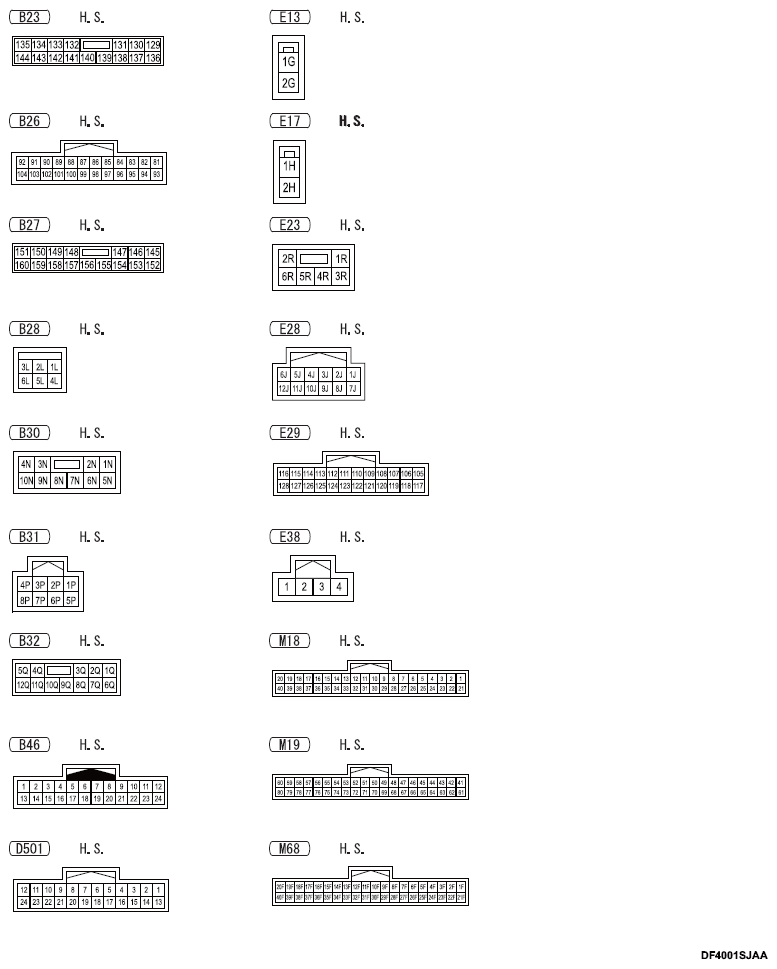

Fig 10: BCM (Body Control Module) Circuit Diagram (10 Of 10)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
